Product description

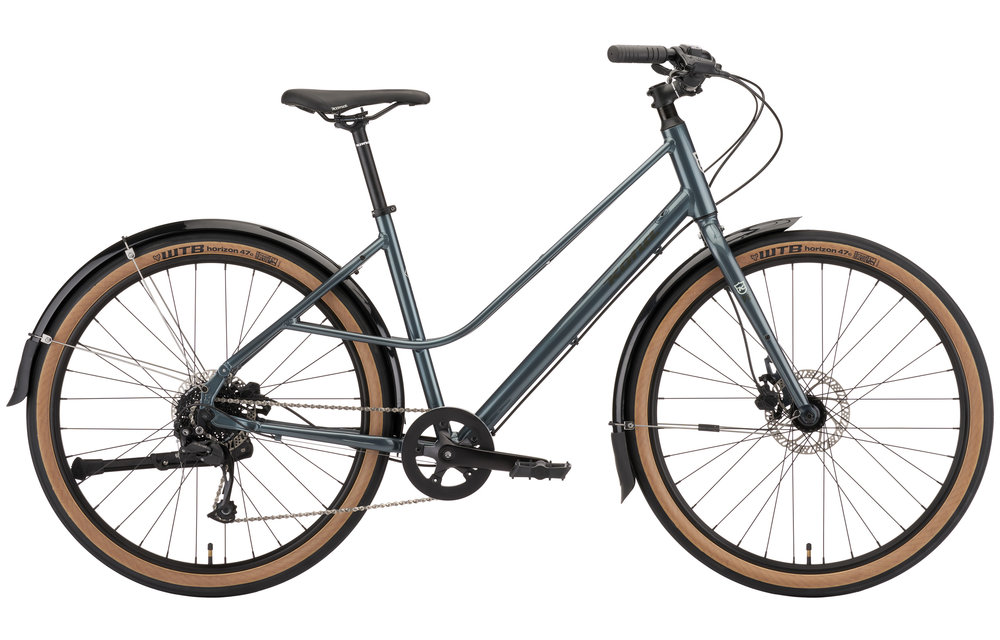

Style points matter. The Coco pays homage to the classic European step-through bicycle. Internal shift cable routing helps keeps the lines clean and sleek, and puncture-resistant tires help keep the ride stress-free. This is the bike that makes neighborhood cruising more fun, so we don’t blame you if you “forgot the milk/beer/wine” and need to ride back to the store to pick it up. Don’t be surprised if you turn a few heads on this bike!
SPECIFICATIONS
| Frame Material | Kona 6061 Aluminum Butted |
| Sizes | XS, S, M, L, |
| Rear Shock | n/a |
| Fork | Kona Project Two Aluminum Disc |
| Crankarms | Samox |
| Chainrings | 39t/Guard |
| B/B | Feimin 68mm |
| Pedals | Kona JS2 |
| Chain | KMC X9 |
| Freewheel | Shimano HG200 11-32t 9spd |
| Chainguide | n/a |
| F/D | n/a |
| R/D | Shimano Alivio SGS |
| Shifters | Shimano Acera |
| Brake Calipers | Tektro HDM275 Hydraulic |
| Front Brake Rotor | Tektro TR160 160mm |
| Rear Brake Rotor | Tektro TR160 160mm |
| Brake Levers | Tektro HDM275 Hydraulic |
| Headset | Feimin FP-H863 |
| Handlebar | Kona Handplant |
| Stem | Kona Commuter |
| Seatpost | Kona Thumb w/Offset 27.2mm |
| Seat Clamp | Kona Clamp |
| Grips | Velo Ergo |
| Saddle | Kona Commuter |
| Front Hub | Formula 100x9mm |
| Rear Hub | Formula 135x10mm |
| Spokes | Stainless Black 14g |
| Rims | Double Wall Alloy |
| Front Tire | WTB Horizon Comp w/ Puncture Protection 650x47c |
| Rear Tire | WTB Horizon Comp w/ Puncture Protection 650x47c |
| Paint Color | Gloss Metallic Dragonfly w/ Charcoal & Nimbus Decals |
| Extras | Fenders w/ Mudflaps & Kickstand |
All specifications are subject to change without notice
GEOMETRY mminches
| Size | XS | S | M | L | XL | |
| 1 | ST Length | 370 | 420 | 470 | 520 | 580 |
| 2 | TT Length | 522 | 550 | 596 | 636 | 686 |
| 3 | Reach | 385 | 395 | 423 | 439 | 465 |
| 4 | Stack | 550 | 578 | 606 | 644 | 681 |
| 5 | Standover | 525 | 543 | 546 | 553 | 582 |
| 6 | HT Angle | 70 | 70 | 70 | 70 | 70 |
| 7 | HT Length | 115 | 145 | 175 | 215 | 255 |
| 8 | ST Angle | 76 | 75 | 74 | 73 | 72 |
| 9 | CS Length | 450 | 450 | 450 | 450 | 450 |
| 10 | BB Drop | 70 | 70 | 70 | 70 | 70 |
| 11 | BB Height | 272 | 272 | 272 | 272 | 272 |
| 12 | Wheelbase | 1057 | 1078 | 1115 | 1146 | 1185 |
| 13 | Front Center | 617 | 637 | 675 | 705 | 744 |
| 14 | Fork Length | 410 | 410 | 410 | 410 | 410 |
| 15 | Fork Offset | 50 | 50 | 50 | 50 | 50 |
SIZING + FIT
GRAVEL / DROP BAR / URBAN
| Height/Inches | Height/Metric | Inseam/Inches | Inseam/Metric | Rove/Jake | Libre | Sutra | Dews | CoCo |
|---|---|---|---|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | 48cm | 50cm | 48cm | N/A | XS |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | 48-50cm | 50cm | 48-50cm | Small | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | 48-52cm | 50-52cm | 48-52cm | Small, Medium | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | 52-54cm | 52-54cm | 52-54cm | Medium | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | 52-56cm | 54-56cm | 54-56cm | Medium, Large | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | 54-58cm | 54-58cm | 54-58cm | Large, XL | Large |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | 56-58cm | 58cm | 56-58cm | XL | N/A |
MTB / ALL MOUNTAIN / SPLICE
| Height/Inches | Height/Metric | Inseam/Inches | Inseam/Metric | MTB/XC Trail/Fat | All Mountain/Enduro | Splice |
|---|---|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | XS | XS | Small |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | Small | Small | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | Small, Medium | Small, Medium | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | Medium | Medium | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | Medium, Large | Medium, Large | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | Large, XL | Large, XL | Large, XL |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | Large, XL | Large, XL | Large, XL |
In order to correctly size the right bike for you, please consult your local Kona dealer in person or use our sizing form.
FEATURES
KONA 6061 ALUMINUM
Kona 7005 and 6061 Aluminum alloys are used extensively throughout our fleet of mountain and asphalt bicycles. A tough, durable, light alloy, both Kona 7005 and 6061 deliver fantastic, reliable performance that lasts for thousands of rides. Much of our 7005/6061 tubing is butted and/or formed, meaning the tubing’s wall thickness can be increased or decreased, as well as shaped, so we can fine-tune a particular frame’s strength and ride characteristics depending on its intended application.
INTERNAL HEADSET
Bearing cups are actually pressed into the frame and are easily removable. An internal headset also reduces stack height, so the height of the stem and bars are more adjustable, giving the rider the best fit possible.
650b WHEELS
650b wheels and tires have a similar overall diameter to a traditional 700c gravel or commuting tire, but with a smaller diameter rim and a wider, taller tire. The extra air volume in this new generation of urban and mixed-surface tires means they can be run comfortably at lower pressures while still rolling quickly on a variety of surfaces. It’s the best of both worlds.
LIFETIME WARRANTY
Register a new Kona bike within three months of purchase, and the original owner qualifies the Kona frame for a free Lifetime Warranty. Note: this does not apply to Kona Carbon models.
ONE-YEAR LIMITED WARRANTY ON COMPLETE BICYCLE
Kona warrants to the original owner that this new Kona bicycle shall be free of defective materials and workmanship for a period of one year from the date of original purchase in the United States or Canada and operated under normal conditions and use. During this one-year period, Kona shall repair or replace, at its sole option, all parts that are found by Kona to be defective and subject to this limited warranty. The original owner shall pay all labor charges connected with the repair or replacement of all parts.
LIFETIME LIMITED WARRANTY ON BICYCLE FRAME
When warranty on non-carbon Kona bikes and frames is NOT registered within three months of purchase, Kona warrants to the original owner that the frame of this new Kona bicycle purchased from an authorized Kona dealer shall be free of defective materials or workmanship for a three-year period. IF THE WARRANTY IS REGISTERED WITH KONA WITHIN THREE MONTHS AFTER THE PURCHASE OF THE BICYCLE, THE WARRANTY IS EXTENDED FOR THE LIFETIME OF THE ORIGINAL OWNER, with the exception of carbon bikes and frames. During warranty period, Kona shall repair or replace, at its sole option, the bicycle frame if Kona determines the frame is defective and subject to this limited warranty. The original owner shall pay all labor and shipping charges connected with the repair or replacement of the bicycle frame. Please see the Kona owner’s manual, provided with your bicycle, for additional information.
Note: this Limited Lifetime Warranty applies to purchases from Kona U.S.A., Kona Canada and Kona Europe.
