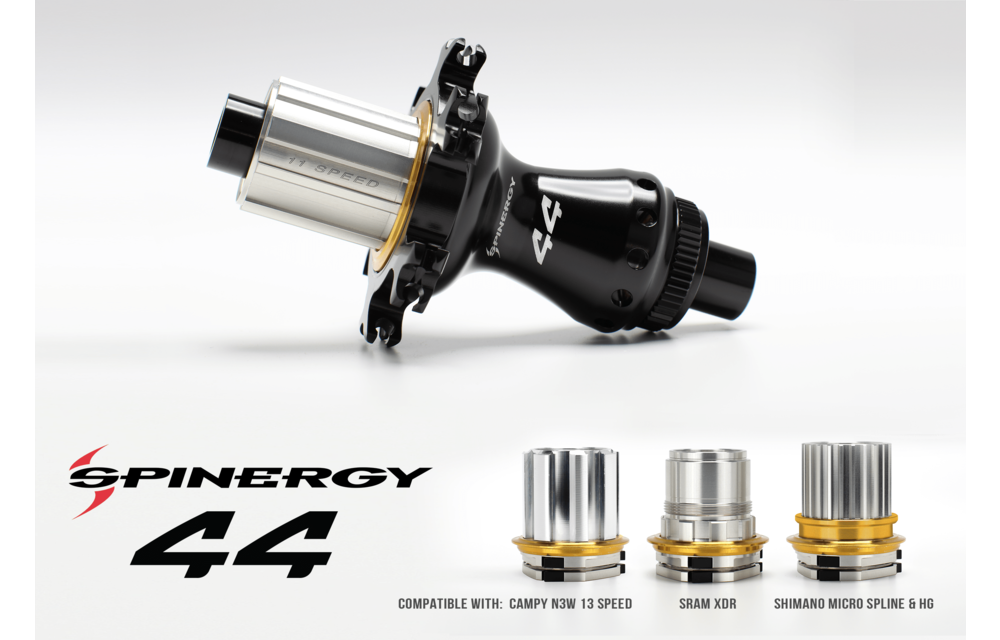

For 2021, our new GX Max wheels includes our new and improved hub design, the "44" hub. A Beefier hub with bigger internals, featuring 108 points of engagement, help you generate more torque and transfer of power for out of saddle efforts. We upgraded to a 44mm ratchet rings and offer compatibility with Shimano Micro Spline 12-speed and Campagnolo Ekar 13-speed groupset. The "44" hub has been updated to include a slip-fit system to easily swap out end caps to accommodate, 15mm,12mm or QR axles, helping you "future-proof" your wheelset.
Featuring 28 PBO spokes on radial/2-cross hubs that offer up free suspension with a design that deflects harsh hits in the terrain smoothing out the ride by staying true and straight throughout. The GX MAX is here to take your adventures to new heights. This tubeless compatible wheelset will keep you on the trails for a long time. Available with thru axle compatibility and boost options.

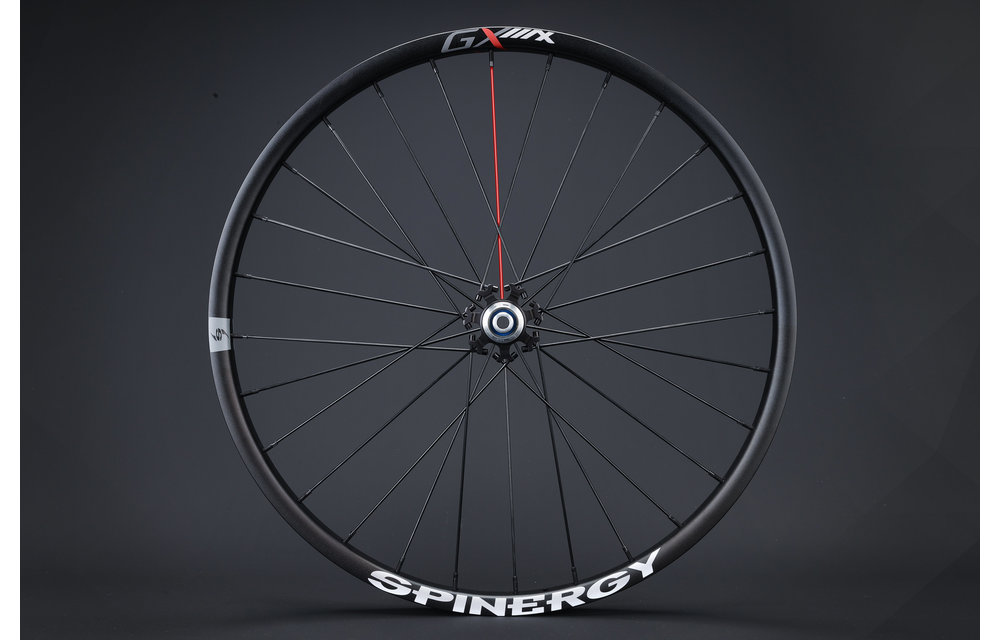

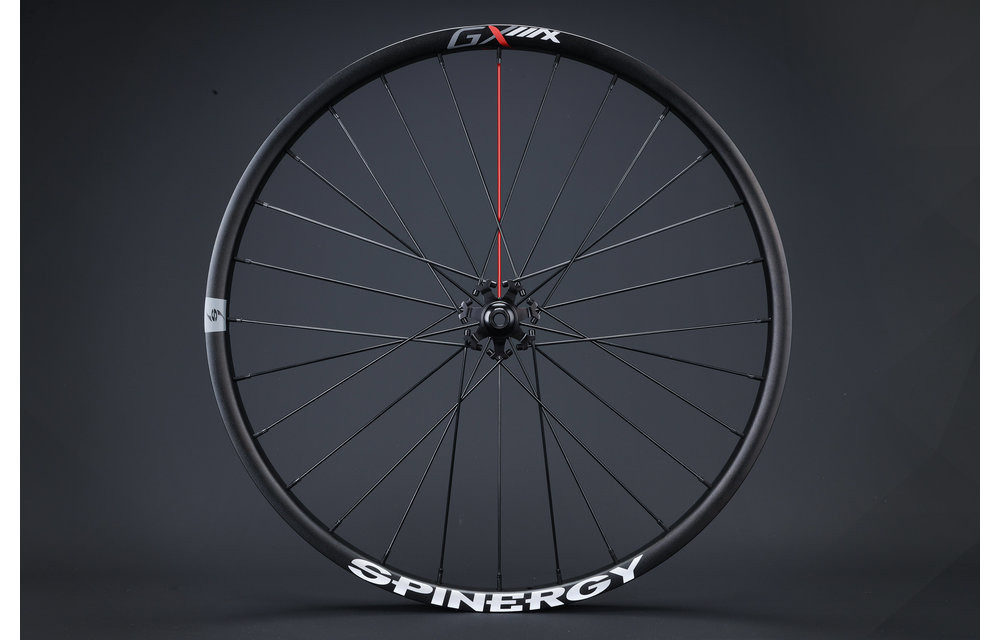

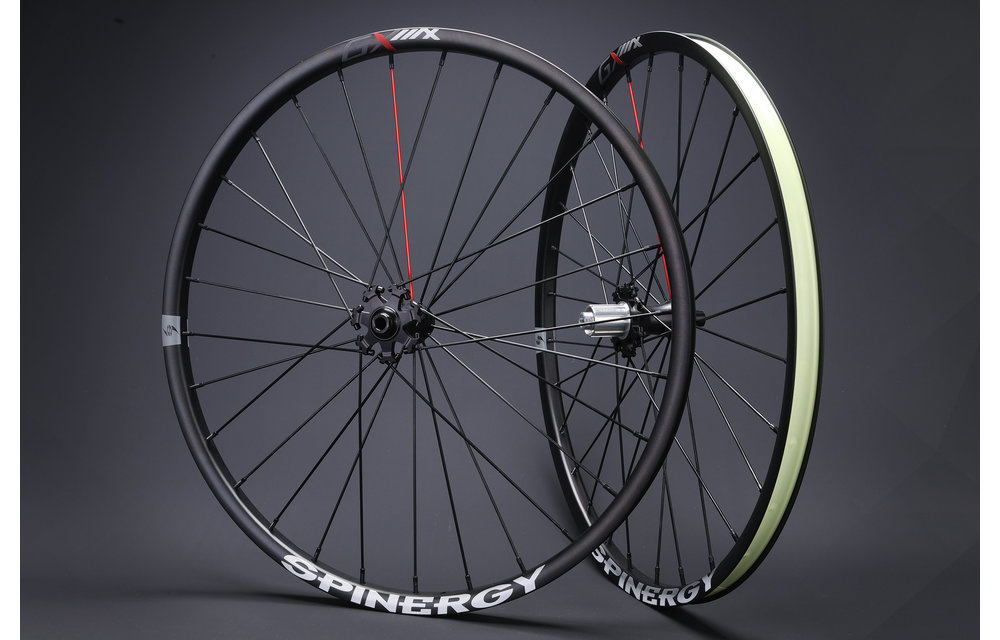

Spinergy’s NEW GX MAX features a new 24mm internal width rim supported by 28 PBO Spokes to let you take your Gravel bike to the chunkiest trails you can find. Whether you are on a trail run, or racing, the GX MAX provides the comfort and traction you need. The low profile rim with PBO spokes maintain a lightweight wheelset that can be set up as tubeless. Developed for racers and riders alike looking for a superior advantage over other standard wheel designs.
Features 28 PBO spokes on radial/2-cross hubs that offer up free suspension with a design that deflects harsh hits in the terrain, smoothing out the ride by staying true and straight throughout. This tubeless compatible wheelset will keep you on the trails for a long time. Available with thru axle compatibilty and boost options.
|Spoke Count F/R||28|
|Lacing F/R||Radial / 2-Cross|
|Hub - Front||QR / 12mm thru axle / 15mm thru axle|
|Hub - Rear||QR / 142x12mm thru axles|
|Spoke Colors||Black, blue, red, yellow, white, orange, green, pink|
|Rim Style / Width / Depth||Aluminum ultra light welded seam / 24mm-Internal / 28mm External / 20mm Depth|
|Compatibility||Shimano, SRAM 8/9/10/11, SRAM XDR|
|Extras||QR skewers, rim tape, truing tool|
|Weight||Combined F/R wheelset 1,622g|
GX Max-700c Wheelset
