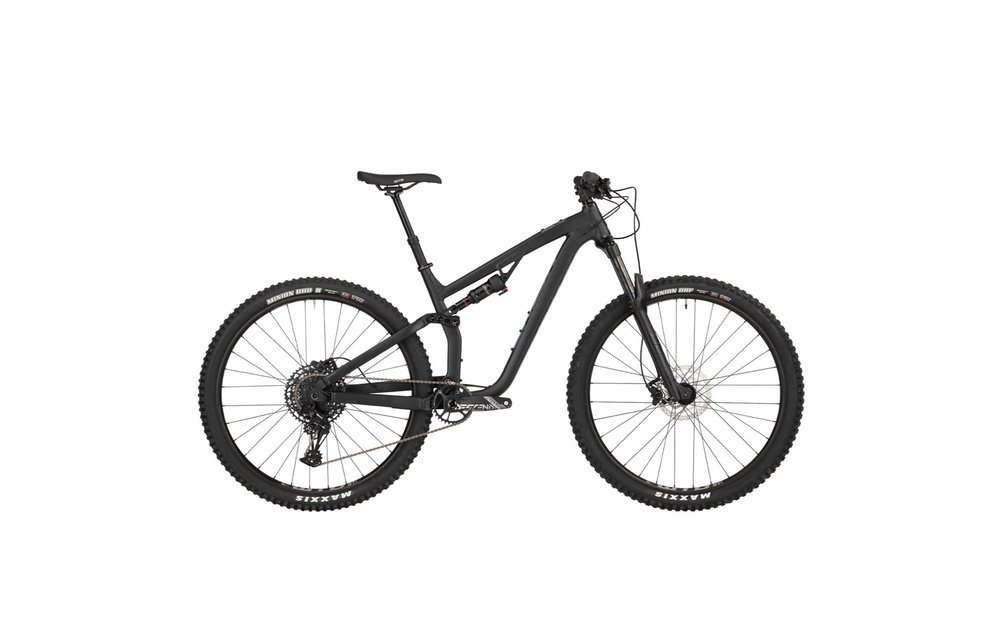

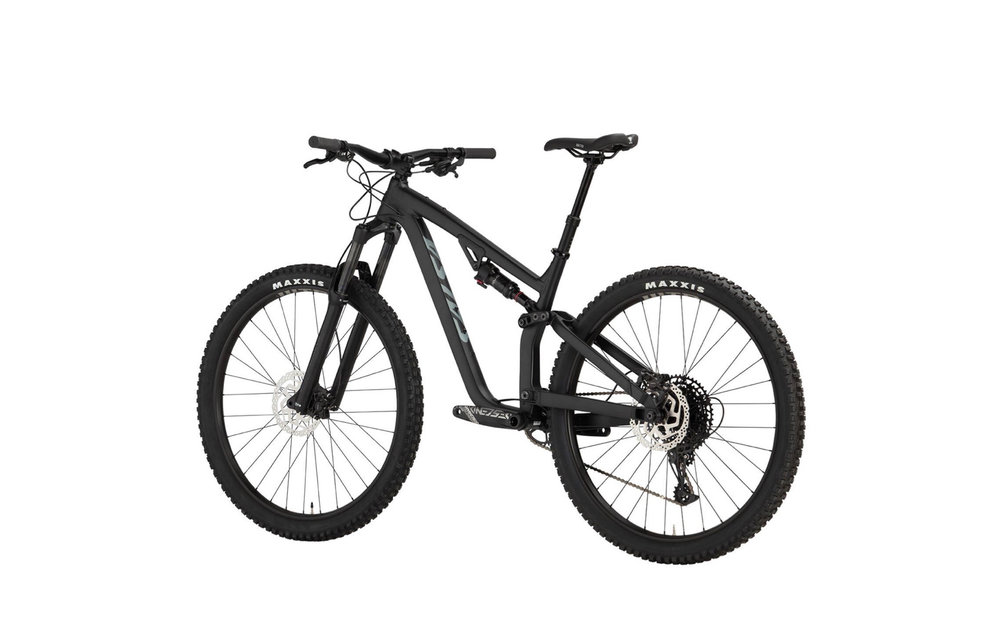

Horsethief SX Eagle Bike - 29"

Product description

Horsethief is one bike for many trails. From mastering your local trails to discovering new destinations, Horsethief has your back. It’s capable of pushing through technical terrain, instills confidence while riding aggressively, and pairs well with beautiful vistas and a post-ride beverage.

• Aluminum frame and Split Pivot suspension design with 120mm of efficient travel, remaining fully active under braking while supportive throughout its travel, paired with a 140mm suspension fork
• A short stem paired with long top tube, combined with a 67-degree head tube angle provides descending confidence, yet balances overall wheelbase length and slow speed maneuverability
• Two full-size bottle cage mounts fit inside the front triangle on all frame sizes. Pair with Anything Bracket and Rescue Roll for pack-free singletrack bliss
• Rear Flip chip adjusts head tube angle and bottom bracket height for terrain, wheel size, and personal preference
• Super Boost 157 x 12mm rear hub spacing combined with a standard width bottom bracket results in a 432mm chainstay length that’s 5mm shorter than previous-generations
• Spec’d with a 29 x 2.5’’ front and 2.4" rear wheel/tire combination, but can accommodate a range of additional sizes of 27.5 x 2.8 - 3.0" and 29 x 2.2 - 2.6’’

Size	SM - 140mm Fork	MD - 140mm Fork	LG - 140mm Fork	XL - 140mm Fork	SM - 130mm Fork	MD - 130mm Fork	LG - 130mm Fork	XL - 130mm Fork
A. Effective Top Tube	596 / 595	618 / 617	639 / 638	661 / 660	595 / 594	616 / 615	638 / 637	660 / 659
B. Stand Over	757 / 760	757 / 760	757 / 760	757 / 760	753 / 756	753 / 756	753 / 756	753 / 756
C. Reach	412 / 415	431 / 434	450 / 453	469 / 472	417 / 420	436 / 439	455 / 458	474 / 477
Crank Arm Length	170	170	175	175	170	170	175	175
D. Stack	615 / 613	624 / 622	634 / 632	643 / 641	612 / 610	621 / 619	630 / 628	639 / 637
E. Total Seat Tube Length	406	444	483	520	406	444	483	520
F. Headtube Length	103	113	123	133	103	113	123	133
G. Headtube Angle	66.8 / 67.0	66.8 / 67.0	66.8 / 67.0	66.8 / 67.0	67.3 / 67.5	67.3 / 67.5	67.3 / 67.5	67.3 / 67.5
H. Seat Tube Angle	73.4 / 73.6	73.4 / 73.6	73.4 / 73.6	73.4 / 73.6	73.9 / 74.1	73.9 / 74.1	73.9 / 74.1	73.9 / 74.1
Handlebar Width	760mm	800mm	800mm	800mm	760mm	800mm	800mm	800mm
I. BB Drop	29 / 26	29 / 26	29 / 26	29 / 26	33 / 30	33 / 30	33 / 30	33 / 30
K. Chainstay Length	432 / 431	432 / 431	432 / 431	432 / 431	432 / 431	432 / 431	432 / 431	432 / 431
L. Fork Length Axle to Crown	551	551	551	551	541	541	541	541
M. Fork Offset	42	42	42	42	42	42	42	42
N. Wheelbase	1139	1162	1185	1208	1135	1158	1181	1204
Recommended Rider Height	165cm–173cm	173cm–180cm	180cm–188cm	188cm–UP	165cm–173cm	173cm–180cm	180cm–188cm	188cm–UP
Stem Length	50	50	50	50	50	50	50	50

Measurements based on:

• An unsprung bike (no sag)
• An average 140mm 29/27.5+ suspension fork at 25% sag
• A 29 x 2.4" tire measuring 745mm in diameter
• Standover is measured from vertically from ground to bend in top tube, subtract 2–8mm (0.1–0.3″) for 27.5 x 2.8–3.0″ tires
