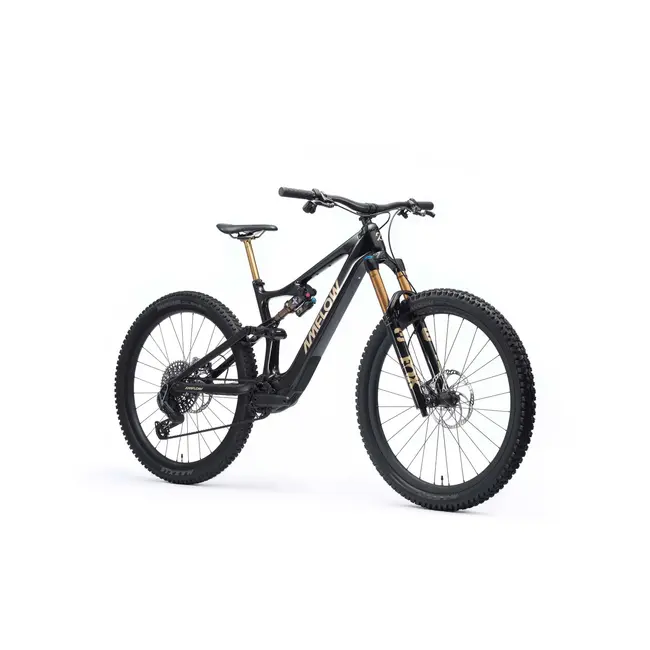

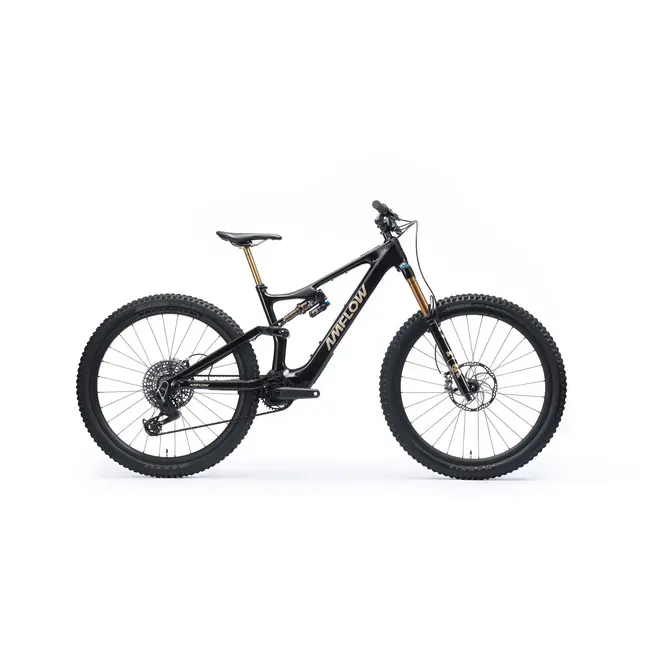

Full-power Amflow eMTB. Engineered for riders who demand more, the Amflow PL electric mountain bike delivers up to 105 N·m of continuous torque in an ultra-light build—power and agility without compromise. Read more.
The Amflow PL Series redefines what’s possible in electric mountain biking. Blending raw power, extended range, and featherweight construction, each model is packed with seamlessly integrated innovation—crafted to give you the ultimate ride, every time.
| Size | Height (cm) | Height (inch) |
|---|---|---|
| M | 162 - 178 | 5'4 - 5'10'' |
| L | 170 - 185 | 5'7 - 6'1'' |
| XL | 175 - 191 | 5'9 - 6'3'' |
| XXL | 185 - 201 | 6'1 - 6'7'' |

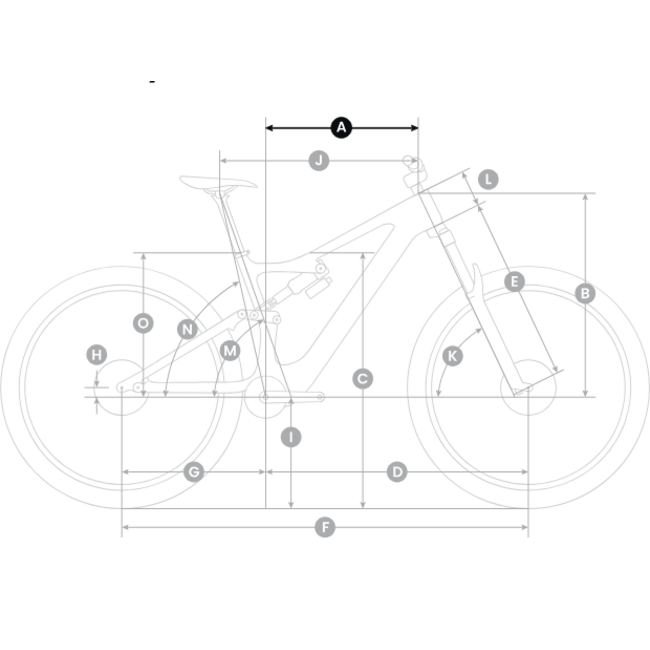

| M | L | XL | XXL | ||
|---|---|---|---|---|---|
| A | Reach | 452mm | 475mm | 500mm | 525mm |
| B | Stack Height | 618mm | 628mm | 641mm | 655mm |
| C | Standover Height | 780mm | 785mm | 790mm | 795mm |
| D | Front Center | 782mm | 810mm | 844mm | 873mm |
| E | Fork Length | 570mm | 570mm | 570mm | 570mm |
| F | Wheelbase | 1227mm | 1255mm | 1289mm | 1318mm |
| G | Chainstay Length | 445mm | 445mm | 445mm | 445mm |
| H | Bottom Bracket Drop | 29mm | 29mm | 29mm | 29mm |
| I | Bottom Bracket Height | 345.5mm | 345.5mm | 345.5mm | 345.5mm |
| J | Effective Top Tube Length | 595mm | 620mm | 648mm | 676mm |
| K | Head Tube Angle | 64.5° | 64.5° | 64.5° | 64.5° |
| L | Head Tube Length | 105mm | 115mm | 130mm | 145mm |
| M | Actual Seat Tube Angle | 70° | 70° | 70° | 70° |
| N | Effective Seat Tube Angle | 77° | 77° | 77° | 77° |
| O | Seat Tube Height | 430mm | 450mm | 470mm | 500mm |
