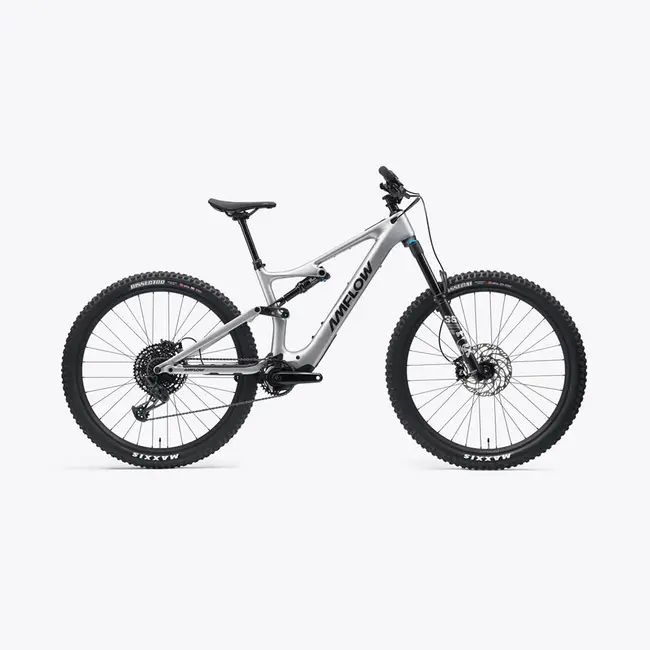

Amflow PL Carbon Frame
Satin Silver
150mm rear travel
Compatible with 27.5" and 29" rear wheels

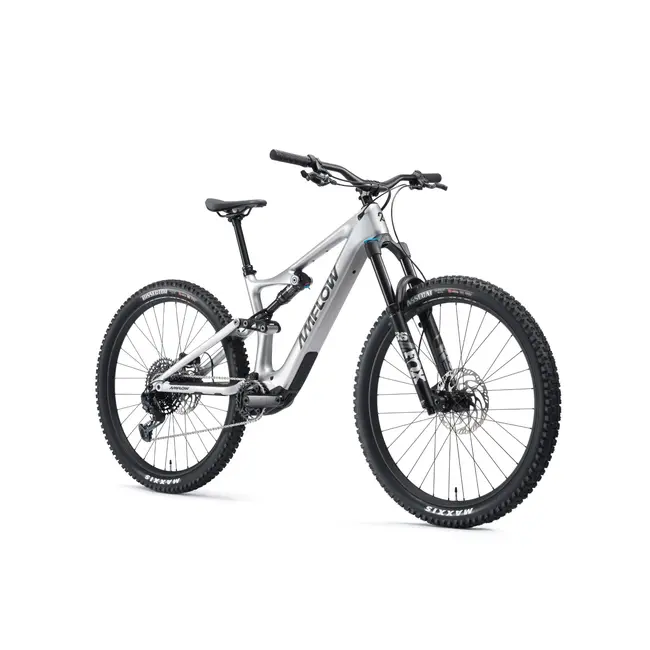

Amflow PL Carbon (800Wh)
Frame
E-Bike System
Avinox M1 Drive Unit: 105 N·m
Avinox Screen: 2-inch OLED Control Display
Avinox Integrated Battery: 800Wh
Avinox Wireless Controllers: Right and left sides
Avinox Fast Charger: 12A/508W
Fork
2026 FOX 36 Performance
160mm travel, GRIP Damper, 15×110mm, 44mm rake
Rear shock
2026 FOX Float Performance
Trunnion (185×55mm), custom tune, EVOL Air sleeve, 2-position lever
Transmission
Rear Derailleur: SRAM Eagle 70 Transmission Derailleur
Chainring: SRAM Eagle Transmission E-MTB Chainring 104BCD 34T
Shift Levers: SRAM Eagle 70 Transmission Shifter | Single Click
Cassette: SRAM XS-1270 Eagle Transmission 10-52T
Chain: SRAM Eagle 70 Transmission Flattop Chain
Crankset: Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)
Brakes
Magura MT5 hydraulic disc brake, HC lever, 4-piston caliper w/ Shiftmix 3, 203mm MDR-C Rotor (front and rear)
Wheels
Amflow HMA-30
Rims: Alloy, 29'', 30mm internal width, 32H, tubeless ready
Spokes: SAPIM E-Light J-bend
Front Hub: Alloy, 2 sealed cartridge bearings, 15×110mm thru-axle, 32h, 6-bolt
Rear Hub: Alloy, 4 sealed cartridge bearings, 148×12mm thru-axle, 32h, 6-bolt, 21T
Tires
Front: Maxxis Assegai MaxxTerra 29×2.5" WT 3C EXO E-25 TLR
Rear: Maxxis Dissector MaxxTerra 29×2.4" WT 3C EXO+ E-25 TLR
Handlebar
Amflow Enduro Alloy Handlebar
35mm rise, 800mm wide
5-degree upsweep, 9-degree backsweep
Grips
Amflow Enduro Grips
Stem
Amflow Enduro Stem, One-piece CNC
Length: 35mm
Clamping diameter: 35mm
Saddle
Selle Royal SRX Plus
Seatpost
KS Rage-i
M: 150mm
L: 170mm
XL/XXL: 190mm
Accessories
Quick Start Guide
Torque Wrench (3~25 N·m, Hex 2/3/4/5/6mm, Torx® 25)
Shock Pump
Front and Rear Lights
