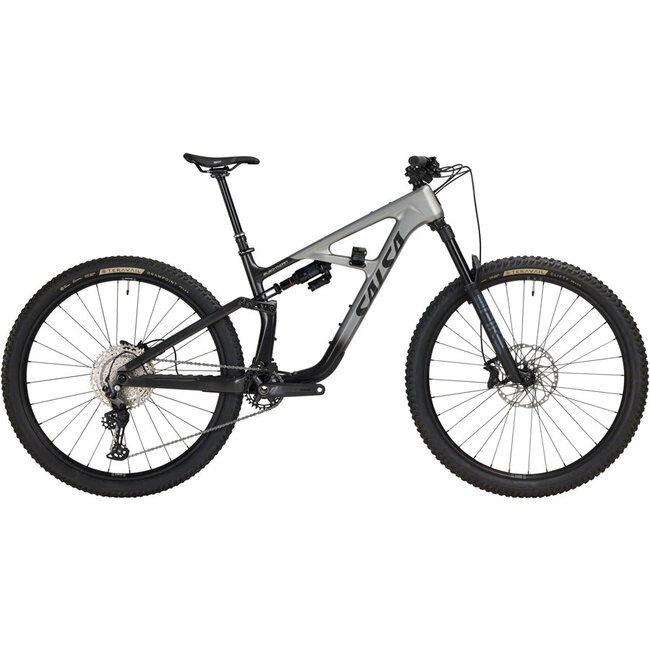

Blackthorn 125 C Deore 12 is a carbon trail bike with balance. Its carbon frame lightens your load and makes for a responsive ride, while 125mm of Split Pivot suspension delivers efficient pedaling, predictable braking, and excellent traction throughout its travel. A RockShox Pike fork adds 140mm trail-smoothing travel up front for a bike capable of bold lines or techy features. Our trail geometry is equal parts downhill confidence and climbing comfort for an all-around excellent ride.
Blackthorn’s on-bike cargo mounts make longer trail days more manageable, with dedicated space for two bottles, your repair kit, and our EXP-R Series Trillium Top Tube Bag or a K-Edge computer mount. The Shimano Deore 12-speed drivetrain is one you can count on to shift flawlessly and always have the gear range to grunt up the steepest climbs.
Blackthorn 125 C Deore 12 is the best carbon trail bike if your rides often include a side of adventure (or you want them to).
Bike Key Features
-
Split Pivot Suspension System
- Allows us to tune the pedaling and braking forces independently
- Maximizes pedaling and braking performance without compromising either
- Results in optimal pedaling efficiency and traction when braking
View More
-
Split Pivot +
- Multiple travel classes in one chassis provides riders with the opportunity to adapt their bikes to various adventures
View More
-
Flip Chip
- Provides the ability to alternate wheel and tire sizes
- Riders can adjust for their terrain, or desired handling characteristics
View More
-
Suspension Kinematics
- Lively, responsive ride feel with good bottom-out resistance
- Free, active, and uniform suspension feel under braking
- Efficient pedaling, stellar climbing traction, supple small-bump performance
- Tunable for all riders
View More
-
On-Bike Storage
- Adventures require gear and riders should get to choose whether they carry it on their bike or on their body
View More
-
Frame Protection
- Our products are built from experience — we’ve been there enough to know that a carbon fork can benefit from added protection just as much as the downtube on a suspension bike.
View More
Frameset
Frame
Blackthorn 125 Carbon
Suspension Fork
RockShox Pike, 140mm
Rear Shock
RockShox Super Deluxe
Components
Headset
FSA Orbit 1.5E ZS NO.57E
Seatpost
TranzX YSI05 RAD+ w/ Shimano SL-MT500 I-Spec EV Lever, SM: 150mm travel; MD–LG: 170mm travel; XL: 200mm travel
Stem
Salsa 35.0 Guide Trail, 40mm
Grips/Bar Tape
Salsa File Tread Lock-on
Saddle
WTB Solano, Medium, Steel Rail, Fusion Form
Handlebar
Race Face Chester
Drivetrain
Rear Derailleur
Shimano Deore M6100–SGS
Cassette
Shimano Deore M6100, 10–51t, 12-speed
Chain
Shimano Deore M6100, HYPERGLIDE+
Crankset
Shimano Deore MT512, 30t w/ MRP 1x SL ISCG-05 bashguard
Shifter
Shimano Deore M6100, I-Spec EV
Brake Levers
Shimano Deore M6100
Brake Calipers
Shimano Deore M6120, 4-piston
Bottom Bracket
Shimano MT501
Rotors
Shimano Deore RT64 (Center Lock, 203mm front, 180mm rear)
Wheels
Front Tire
Teravail Clifty, 29 x 2.5", Durable casing, WTB TCS Sealant Included
Rear Tire
Teravail Drawpoint, 29 x 2.5", Durable casing, WTB TCS Sealant Included
Front Hub
Shimano TC500 15 x 110mm
Rear Hub
Shimano TC500 12 x 148mm
Spoke
Butted steel, black
Rim
WTB ASYM i30 TCS, 28h
*Specifications are subject to change without notice
Geometry
Size |
Small |
Medium |
Large |
X-Large |
A. Effective Top Tube |
587.0- 588.0 |
609.0- 610.0 |
631.0- 632.0 |
653.0- 654.0 |
B. Stand Over |
736.0- 733.0 |
736.0- 733.0 |
737.0- 733.0 |
737.0- 733.0 |
C. Reach |
462.0- 458.0 |
482.0- 478.0 |
502.0- 498.0 |
521.0- 518.0 |
D. Stack |
605.0- 609.0 |
614.0- 617.0 |
623.0- 626.0 |
632.0- 635.0 |
E. Total Seat Tube Length |
405.0 |
430.0 |
455.0 |
480.0 |
F. Headtube Length |
100.0 |
110.0 |
120.0 |
130.0 |
G. Headtube Angle |
64.7
-
64.4
|
64.7
-
64.4
|
64.7
-
64.4
|
64.7
-
64.4
|
H. Seat Tube Angle |
78.3
-
77.9
|
78.3
-
77.9
|
78.3
-
77.9
|
78.2
-
77.9
|
I. BB Drop |
32.0- 36.0 |
31.0- 36.0 |
31.0- 36.0 |
31.0- 36.0 |
J. BB Height |
344.0- 340.0 |
345.0- 340.0 |
345.0- 340.0 |
345.0- 340.0 |
K. Chainstay Length |
432.0- 433.0 |
432.0- 433.0 |
432.0- 433.0 |
432.0- 433.0 |
L. Fork Length Axle to Crown |
571.0 |
571.0 |
571.0 |
571.0 |
M. Fork Offset |
43.0 |
43.0 |
43.0 |
43.0 |
N. Wheelbase |
1211.0- 1211.0 |
1236.0- 1235.0 |
1260.0- 1260.0 |
1283.0- 1284.0 |
Crank Arm Length |
165.0 |
165.0 |
170.0 |
170.0 |
Handlebar Width |
780.0 |
780.0 |
780.0 |
780.0 |
Recommended Rider Height |
157.0 - 170.0 |
168.0 - 180.0 |
178.0 - 191.0 |
188.0 - 201.0 |
Stem Length |
40.0 |
40.0 |
40.0 |
40.0 |
Measurements based on:
- an unsprung bike (no sag)
- a 29 x 2.5" tire measuring 752mm in diameter
- Standover is measured from vertically from ground to top of top tube 50mm forward of bottom bracket center
- Note: Where two measurements are listed, the first number is with Flip Chip in default High position; the second number is with Flip Chip in Low position
Frame Specs
- Design Wheel/Tire Sizes55–63.5mm (2.2–2.5")
- Alternate Wheel/Tire Sizes63–70mm (2.5–27.75")
- Max Tire Outer Diameter Frame: 29 x 2.5"
Fork: Max Tire Diameter: 732 mm / Max Tire Width: 81mm
- Frame ConstructionBlackthorn 125 Carbon
- Suspension Fork Length (Travel)160mm
- Fork Offset44mm
- Axle to Crown573mm
- Rear Spacing12 x 148mm
- Rear Axle Size12 x 188mm, TP=1.0, TL=20
- Front Brake (Rotor)74mm Postmount (180-220mm rotor)
- Headset - UpperZS44/28.6
- Headset - LowerZS56/40
- Rear Shock Size190 x 45mm
- Shock Mount, ForeØ10 x 30mm
- Front Spacing15 x 110mm
- Front Axle SizeFox Kabolt: 15 x 155mm, TP=M14 x 1.5, TL=12mm
- Steerer Tube1.125–1.5" Tapered
- Crown Race59mm
- Stem ClampØ35.4mm
- SeatpostØ30.9mm
- Dropper Post CompatibleYes (internal)
- Max Post InsertionSM: 215mm; MD: 240mm; LG: 265mm; XL: 290mm
- Derailluer HangerSRAM UDH
- Bottom Bracket73mm BSA
- Crankset (Max Ring)34t (55mm)
- Accessory MountsTop Tube (top side) Accessory Mounts: One
- Bottle MountsOne full size bottle
- Fork MountsNone
- Front Fender MountsNone
- Rear Fender MountsNone
