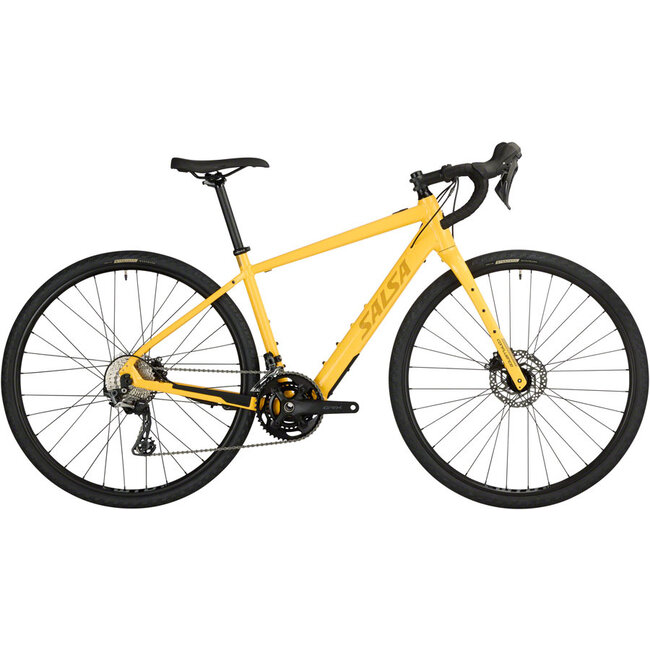

Expand your gravel adventures with the Confluence GRX600 2x. This gravel ebike features a lightweight MAHLE hub-drive system that puts down 40Nm of torque in a stealthy package. The aluminum frame and carbon fork balance weight, comfort, and performance. Confluence’s geometry is designed for a comfortable, stable ride, even at higher average speeds than you’re used to on bumpy backroads. Confluence also comes with our on-bike cargo features, allowing for quick and easy configuration for adventures ranging from gravel day-rides to last-minute bikepacking trips. All this, paired with Shimano’s GRX600 2x drivetrain, means you’ll have the tools to pull off more rides than ever. Charge Your Adventure with Confluence GRX600 2x.
- Meets UL 2849, and UL 2271 certification
Bike Key Features
-
Bar, Stem, Seatpost
- Bar, stem, and seatpost models are spec’d on bikes with the goal of making them as inclusive as possible, such as zero-rise handlebars on small flat-bar bikes to achieve proper stack height
View More
-
On-Bike Storage
- Adventures require gear and riders should get to choose whether they carry it on their bike or on their body
View More
Frameset
Fork
Confluence Carbon Deluxe
Components
Grips/Bar Tape
Black cork
Drivetrain
Front Derailleur
Shimano GRX RX810
Rear Derailleur
Shimano GRX RX810
Cassette
Shimano HG700-11, 11-speed, 11–34t
Crankset
Shimano GRX RX600
Shifter
Shimano GRX RX600
Brake Levers
Shimano GRX RX600
Brake Calipers
Shimano GRX RX400
Bottom Bracket
Shimano RS501
Rotors
Shimano RT26, 160mm
Ebike Classification
Class 1
Max Assist Speed
20 mph / 32 kph
Battery Capacity Watt Hours
250Wh
Removable Battery
Removable for service
Estimated Charge Time
3 hours
Wheels
Front Tire
Teravail Washburn 700c x 42mm, Durable casing, wire bead
Rear Tire
Teravail Washburn 700c x 42mm, Durable casing, wire bead
Spoke
Straight gauge, black
Weight
Complete Bike
32 lb 2 oz (55 cm frame)
*Specifications are subject to change without notice
Geometry
Size |
49cm |
51cm |
53cm |
55cm |
57cm |
60cm |
A. Effective Top Tube |
493.0 |
510.0 |
530.0 |
550.0 |
570.0 |
600.0 |
B. Stand Over |
626.0 |
658.0 |
688.0 |
723.0 |
760.0 |
788.0 |
C. Reach |
366.0 |
370.0 |
373.0 |
377.0 |
388.0 |
410.0 |
D. Stack |
510.0 |
524.0 |
548.0 |
566.0 |
594.0 |
622.0 |
E. Total Seat Tube Length |
345.0 |
380.0 |
410.0 |
450.0 |
490.0 |
520.0 |
F. Headtube Length |
90.0 |
105.0 |
130.0 |
150.0 |
180.0 |
210.0 |
G. Headtube Angle |
68.5
|
68.5
|
68.5
|
68.5
|
68.5
|
68.5
|
H. Seat Tube Angle |
76.0
|
75.0
|
74.0
|
73.0
|
73.0
|
73.0
|
I. BB Drop |
70.0 |
70.0 |
70.0 |
70.0 |
70.0 |
70.0 |
K. Chainstay Length |
440.0 |
440.0 |
440.0 |
440.0 |
440.0 |
440.0 |
L. Fork Length Axle to Crown |
402.0 |
402.0 |
402.0 |
402.0 |
402.0 |
402.0 |
M. Fork Offset |
50.0 |
50.0 |
50.0 |
50.0 |
50.0 |
50.0 |
N. Wheelbase |
1027.0 |
1037.0 |
1049.0 |
1061.0 |
1083.0 |
1115.0 |
Crank Arm Length |
165.0 |
165.0 |
170.0 |
172.5 |
175.0 |
175.0 |
Handlebar Width |
38.0 |
40.0 |
44.0 |
44.0 |
46.0 |
46.0 |
Recommended Rider Height |
142.0 - 150.0 |
150.0 - 157.0 |
157.0 - 168.0 |
165.0 - 175.0 |
173.0 - 183.0 |
183.0 - 193.0 |
Stem Length |
60.0 |
70.0 |
80.0 |
80.0 |
90.0 |
100.0 |
Measurements based on:
- An unsprung bike (no sag)
- A 700c x 42 mm tire measuring 710 mm in diameter
- Standover (B) for all sizes is measured vertically to top of toptube from a position 50 mm forward of BB center
Frame Specs
- Max Tire Outer Diameter700 x 50mm
- Frame ConstructionAluminum
- Fork ConstructionCarbon
- Fork Offset50mm
- Rear Spacing136mm
- Rear Axle Size10x1mm
- Front Brake (Rotor)Flat-mount (160mm)
- Headset - UpperIS41
- Headset - LowerIS52
- Front Spacing12x100mm
- Front Axle SizeM12xTP1.5x120mm
- Steerer Tube350mm
- Crown RaceIntegrated
- Stem ClampYes (internal)
- Seatpost27.2mm
- Seatpost Clamp32.0mm
- Front Derailleur Clamp31.8mm
- Front Derailleur TypeDown swing, down pull
- Derailluer Hanger10x1mm threaded 136mm proprietary spacing/with proprietary derailleur hanger
- Bottom Bracket68mm BSA threaded
- Crankset (Max Ring)1x: 42t max (47mm chainline); 2x: 48/33t max (47mm chainline)
- Accessory MountsDowntube Accessory Mounts: No; Rack Mounts (frame): Yes
- Bottle Mounts2
- Fork MountsBottle Mounts: Three-Pack mounts (two sets); Rack Mounts (fork): Yes
- Front Fender MountsYes
- Rear Fender MountsYes
