Cutthroat C Apex AXS Transmission
$4,399.00 Excl. tax
Add to cart
Cutthroat C Apex AXS Transmission
Cutthroat C Apex AXS Transmission

Cutthroat C Apex AXS Transmission

$4,399.00 Excl. tax

With trail-taming compliance and abrasion-resistant plates in high-wear areas, the Cutthroat Carbon fork is designed for the rigors of rides that cover multiple road surfaces in unpredictable conditions Read more.

Order it today! This item is out of stock but you can save your place now so you don’t miss it when it’s back in stock.

Product description

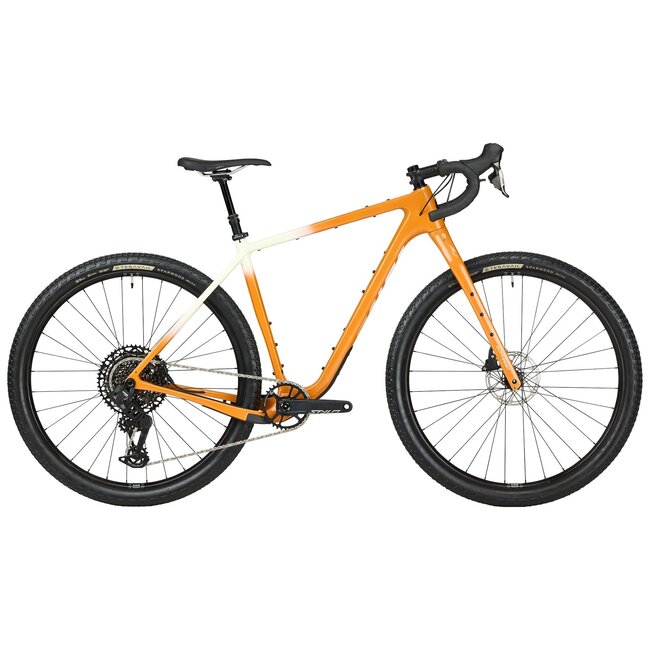

The Cutthroat C Apex Eagle AXS is our drop-bar mountain bike ready for your next big ride. Designed to thrive in epic events like the Tour Divide, Cutthroat uses a carbon frame our Class 5™ VRS (vibration reduction system) for all-day comfort in the saddle. Drop-bar mountain bike geometry offers stability when your route gets technical. Bring your backcountry supplies with the ample bikepacking bag mounts, rack mounts, or a combination of both. The SRAM Apex Eagle AXS drivetrain delivers precise shifts, and the 1 x 12 gearing gives you plenty of range to work with whether you’re grinding up a mountain pass or making up time with a tailwind.



Frameset

Frame
Cutthroat C
Fork
Cutthroat Carbon Deluxe
Color
Tangerine
Rear Shock
N/A

Drivetrain

Front Derailleur
N/A
Rear Derailleur
SRAM S1000 Eagle Transmission
Cassette
SRAM XS-1270, T-Type 10–52t, 12-speed
Chain
SRAM GX T-Type
Crankset
SRAM STYLO 6K Eagle DUB, 34t
Shifter
SRAM Apex AXS, D1
Brakes and Rotors
SRAM Apex hydraulic disc brakes, SRAM CenterLine rotors (Center Lock, 160mm)

Components

Headset (Upper/Lower)
FSA NO.42/ACB
Stem
Salsa Guide
Handlebar
Salsa Cowchipper
Grips/Bar Tape
Velo anti-slip, shock-proof silicone tape
Seatpost
TranzX YSP38 dropper post, 90mm travel
Saddle
WTB SL8 Medium Steel SL

Wheels

Front Wheel
Shimano TC500-15-B 15 x 110mm hub, WTB KOM Team 25mm TCS 2.0 29" rim, 32h (taped, WTB tubeless valve included)
Rear Wheel
Shimano TC500-HM-B 12 x 148mm hub, WTB KOM Team 25mm TCS 2.0 29" rim, 32h (taped, WTB tubeless valve included)
Tires
Teravail Sparwood, 29 x 2.2", Durable casing, tubeless-ready

Weight

Complete Bike Weight
25 lbs 0 oz (56cm size)

*Specification and pricing subject to change without notice.



Design Wheel x Tire Size
29 x 2.25" (29 x 2.4" Max) (Some front derailleurs may reduce tire clearance. Check manufacturer’s specifications to confirm clearance before installing.)
Susp Fork Length (Travel)
506 mm (100 mm Travel)
Rigid Fork Length
483 mm
Fork Offset
51 mm
Front Spacing
110 x 15 mm Thru-axle
Front Brake (Rotor)
Flat mount (160–180 mm), flat mount frame standard (35 mm thickness), 42 mm bolt length
Front Rack Mounts
Yes, lowrider compatible. Salsa Down Under rack recommended.
Fork Accessory Mounts
Yes, one set of Three-Pack mounts on each fork leg
Headset, Upper
IS41
Headset, Lower
IS52
Seatpost
27.2 mm
Seat Collar
32.0 mm
Dropper Compatible (Routing)
Yes, internal
Front Derailleur Type
Road, braze-on, 2x, bottom-pull
Bottom Bracket
Press Fit BB92, 41 x 92 mm
Crankset (Max & Min Ring)
1x MTN Boost: 40t Max; 2x RD Boost outer ring: 46–50t, inner ring: 30–36t *Oval chainrings subtract 2t from max*
Rear Brake (Rotor)
Flat mount (140–160 mm), flat mount frame standard (25mm Thickness), 32 mm bolt length
Rear Spacing
148 x 12 mm Thru-axle
Rear Axle Size
M12 x P1.0 x 175
Derailleur Hanger
SRAM UDH
Rear Rack Mounts
Yes, Salsa Rack Lock seatpost collar required. Salsa Wanderlust Rack recommended. Salsa Bent Rack Struts (part #RK8030) required for installation on 58 cm and 60 cm frames. Not compatible with Salsa Wanderlust HD Rack
Rear Fender Mounts
n/a
Water Bottle Mounts
Frames up to 54cm: 2 in main triangle. Frames 56cm and larger: 3 in main triangle.
Under Downtube Mount
Yes, two pair.
Top Tube Mounts
Yes, compatible with Salsa Top Tube bag
Internal Dropper Post Routing
1x mechanical drivetrain: Route the dropper post cable through the drive side of the down tube. Di2 drivetrains: Mount the Di2 battery in the seatpost, then route the dropper post cable through the drive side of the downtube.
External Dropper Post Routing
1x and 2x mechanical and Di2 drivetrains:Route the dropper post cable through the dynamo rear light holes on the non-drive side of the top tube.
Cutthroat C Apex AXS Transmission frame
Size 52cm 54cm 56cm 58cm 60cm
A. Effective Top Tube 520 540 560 580 600
B. Stand Over 700 742 811 852 874
C. Reach 357 372 385 394 406
Crank Arm Length 165 170 175 175 175
D. Stack 585 592 620 645 664
E. Total Seat Tube Length 356 419 508 559 584
F. Headtube Length 90 98 127 154 175
G. Headtube Angle 69 69 69 69 69
H. Seat Tube Angle 74.5 74.25 74.25 74 73.75
Handlebar Width 440 460 480 500 520
I. BB Drop 70 70 70 70 70
J. BB Height 300 300 300 300 300
K. Chainstay Length 445 445 445 445 445
L. Fork Length Axle to Crown 483 483 483 483 483
M. Fork Offset 51 51 51 51 51
N. Wheelbase 1050 1066 1091 1110 1129
Recommended Rider Height 154cm–168cm 168cm–175cm 173cm–185cm 183cm–193cm 190cm–UP
Stem Length 60 70 80 80 90

Measurements based on:

  • an 483mm AC x 51mm offset fork which is equivalent to an average 100mm 29" suspension fork at 25% sag
  • a 29" x 2.2" tire measuring 740mm in diameter
  • Standover for all sizes is measured vertically to top of toptube from a position 50mm forward of BB center
