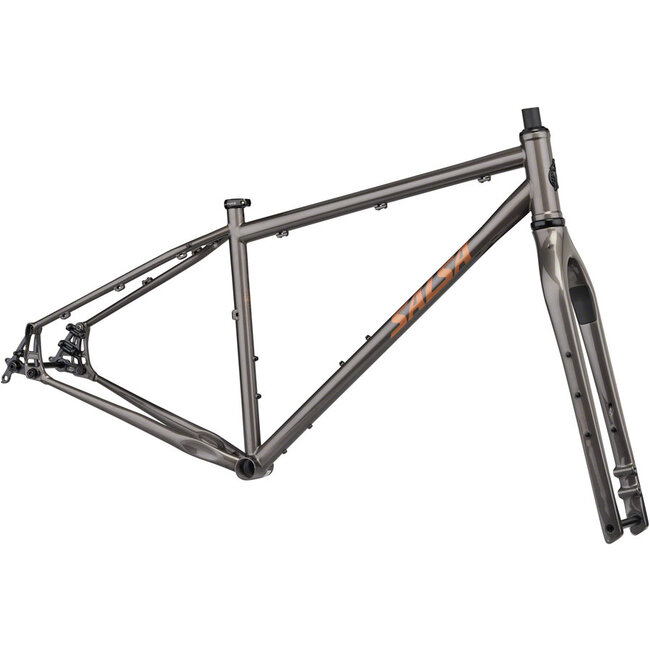

Fargo Steel Frameset

Product description

Designed as a drop bar mountain bike, optimized for fit with the Salsa Woodchipper or Cowchipper handlebars. Capable of handling everything from technical singletrack trails, two-track, gravel, and the occasional paved road. Predictable handling with or without a load. The bike to ride for multiple-surface excursions

Geometry

Measurements based on:

• A Salsa Firestarter Carbon fork which is equivalent to an average 100mm fork at 20% sag
• A 29 x 2.25" tire measuring 746mm in diameter
• Standover (P) measured vertically to top of toptube from a position 50mm forward of BB center

Size	XS	SM	MD	LG	XL
A. Effective Top Tube	520	540	565	590	620
B. Stand Over	690	732	778	821	859
C. Reach	350	364	368	385	409
Crank Arm Length	170	170	175	175	175
D. Stack	594	615	643	671	690
E. Total Seat Tube Length	355.6	406.4	457.2	508	558.8
F. Headtube Length	90	110	140	170	190
G. Headtube Angle	68.5	69	69	69	69
H. Seat Tube Angle	74	74	73	73	73
Handlebar Width	42cm	44cm	44cm	46cm	46cm
I. BB Drop	70	70	70	70	70
K. Chainstay Length	445–462	445–462	445–462	445–462	445–462
L. Fork Length Axle to Crown	480	480	480	480	480
M. Fork Offset	51	51	51	51	51
N. Wheelbase	1050–1067	1067–1084	1083–1100	1110–1127	1141–1158
Recommended Rider Height	150cm–160cm	160cm–175cm	173cm–183cm	180cm–191cm	188cm–UP
Stem Length	60	70	70	80	80
