Product description
This versatile platform is a gateway to gravel riding. The confidence of its redesigned aluminum frame and carbon fork attracts mixed-surface riders, while its cargo capacity appeals to bikepackers. Journeyer’s fender mounts, rack mounts, wheel size compatibility, and handlebar options suit riders seeking a do-it-all bike.
- 6061-T6 alloy frame
- Salsa Waxwing carbon fork with fender mounts, Three-Pack mounts, mid-blade rack mounts, dynamo routing, and abrasion-resistant plate.
- Flat mount brakes
- Internal cable routing with stealth dropper post routing
- Top tube and down tube accessory mounts on frame hold ride essentials
- Compatible with 700c and 650b wheels and tires
| Frame measurements (mm) | 49cm | 51cm | 53cm | 55cm | 57cm | 60cm |
|---|---|---|---|---|---|---|
| A. BB Drop | 70 | 70 | 70 | 70 | 70 | 70 |
| B. Chainstay Length | 440 | 440 | 440 | 440 | 440 | 440 |
| C. Fork Length - Axle to Crown | 402 | 402 | 402 | 402 | 402 | 402 |
| D. Fork Offset | 50 | 50 | 50 | 50 | 50 | 50 |
| E. Head Tube Angle (deg) | 68.5 | 69.5 | 69.5 | 69.5 | 69.5 | 69.5 |
| F. Headtube Length | 90 | 105 | 130 | 150 | 180 | 210 |
| G. Reach | 366 | 368 | 372 | 376 | 387 | 408 |
| H. Seat Tube Angle (deg) | 76.0 | 75.0 | 74.0 | 73.0 | 73.0 | 73.0 |
| I. Seat Tube Length - Center to Top | 340 | 380 | 410 | 450 | 490 | 520 |
| J. Stack | 510 | 528 | 552 | 570 | 598 | 627 |
| K. Standover | 617 | 652 | 688 | 724 | 760 | 807 |
| L. Top Tube Length (Effective) | 493 | 510 | 530 | 550 | 570 | 600 |
| M. Wheelbase | 1027 | 1028 | 1040 | 1050 | 1072 | 1104 |
| Component measurements (mm) | ||||||
| Crank Arm Length | 165 | 165 | 170 | 172.5 | 175 | 175 |
| Handlebar Width (cm) | 38 | 40 | 42 | 44 | 46 | 46 |
| Seatpost Offset | 12 | 12 | 12 | 12 | 12 | 12 |
| Stem Length | 60 | 70 | 80 | 80 | 90 | 100 |
Frameset
Frame
Journeyer Drop-Bar Thru-Axle
Fork
Waxwing
Drivetrain
Crankset
SRAM Apex 1, 40t
Front Derailleur
N/A
Rear Derailleur
SRAM Apex 1
Cassette
SRAM PG-1130, 11–42t, 11-speed
Chain
SRAM PC-1110
Components
Grips / Bar Tape
Black Cork
Handlebar
Salsa Cowbell 3, 31.8
Stem
Salsa Guide 31.8, 6-degree
Headset
FSA NO.42 ACB IS-2
Shifter
SRAM Apex 1
Brakes and Rotors
Tektro MD-C550 brakes, Tektro TR160-22 rotors (6-bolt, 160 mm)
Saddle
WTB Volt Medium, Steel, 142 x 265 mm
Seatclamp
Salsa Lip-Lock
Seatpost
Salsa Guide, 27.2 x 350 mm
Wheels
Front Wheel
WTB Serra 12 x 100 mm hub, WTB ST i23 700c rim, 28h
Rear Wheel
WTB Serra HG10 12 x 142 mm hub, WTB ST i23 700c rim, 28h
Tires
Teravail Washburn, 700c x 38 mm, 60 tpi, Durable casing, tubeless ready
Tubes
included and installed
Recent articles
Salsa

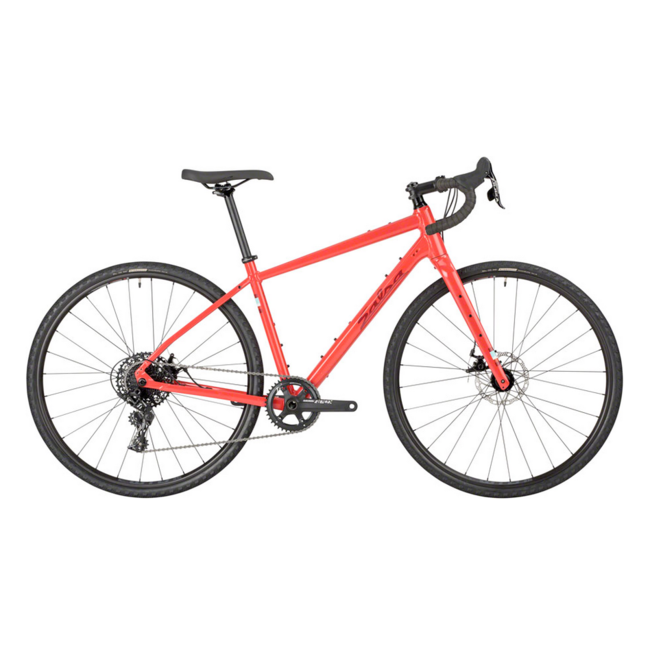

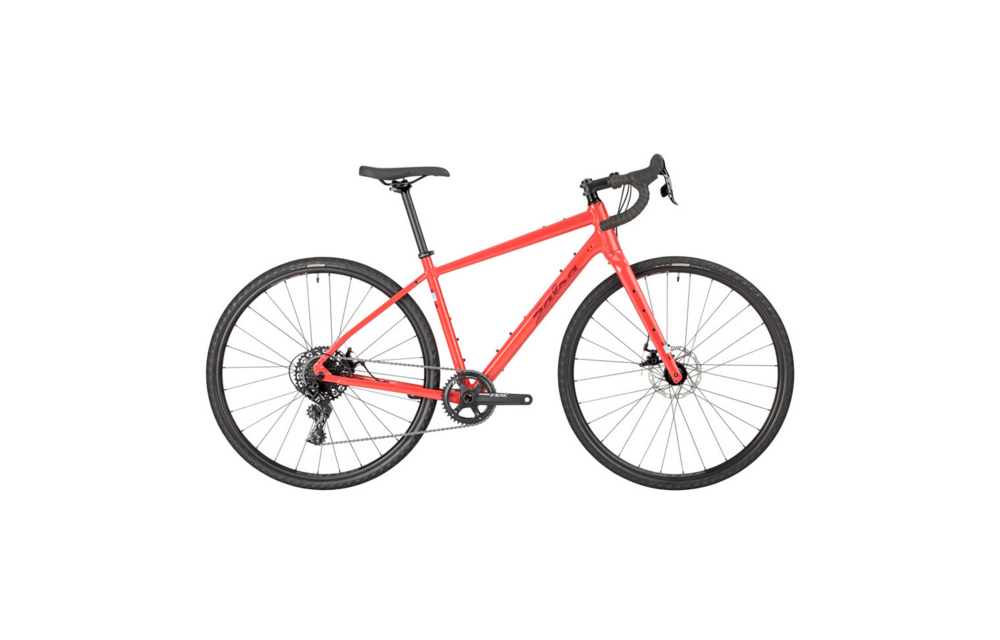

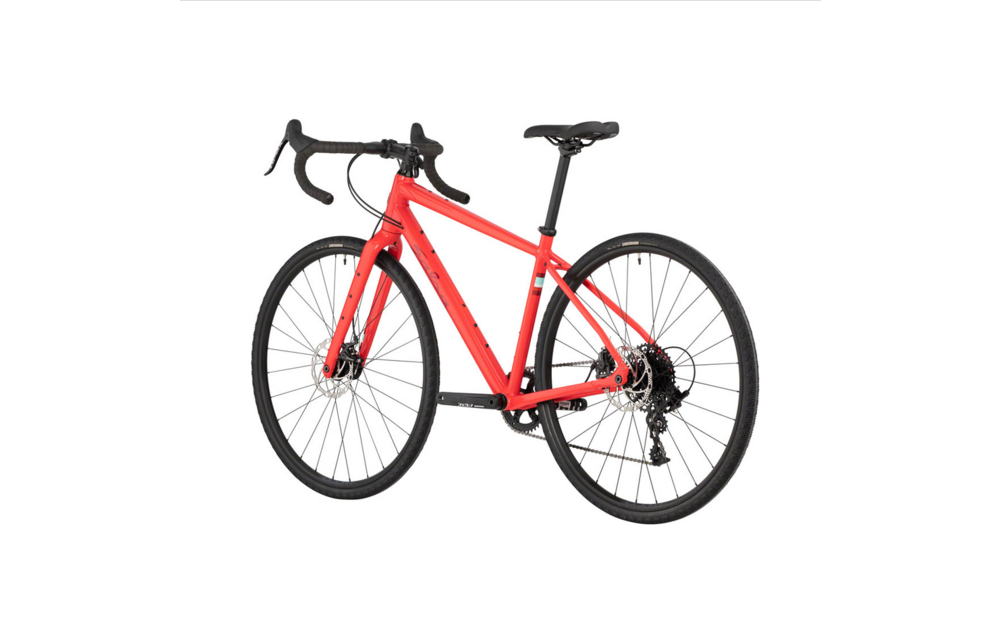

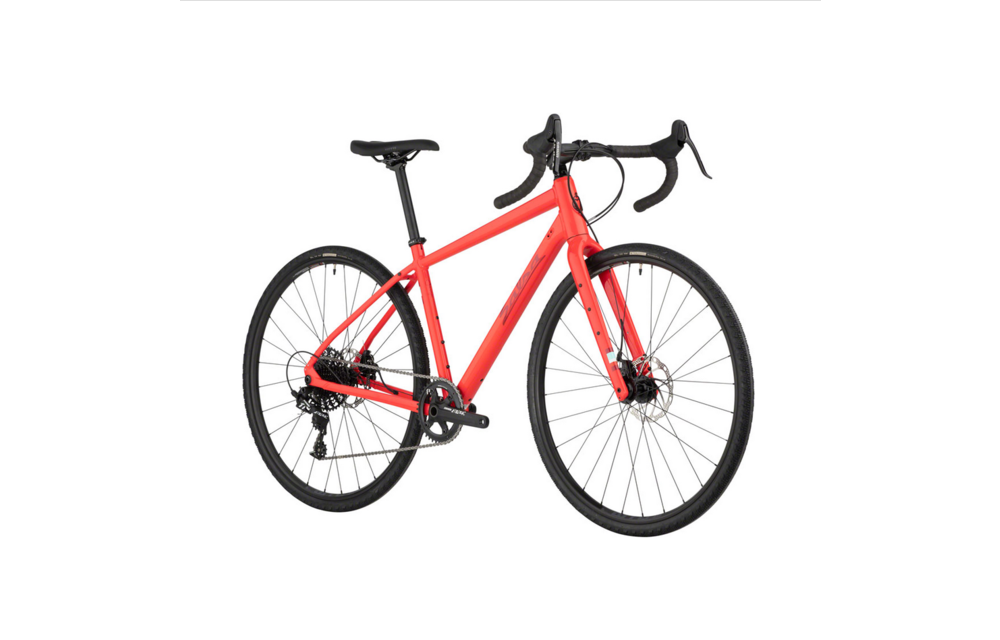

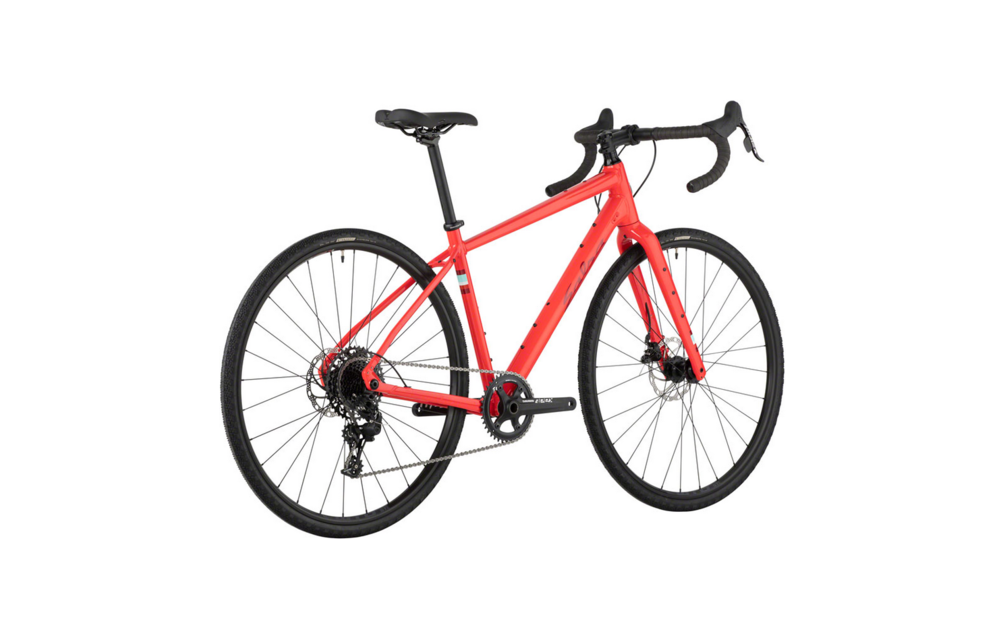

Journeyer 1.2 Apex 1x 700 Red Orange
$1,599.99
