Product description

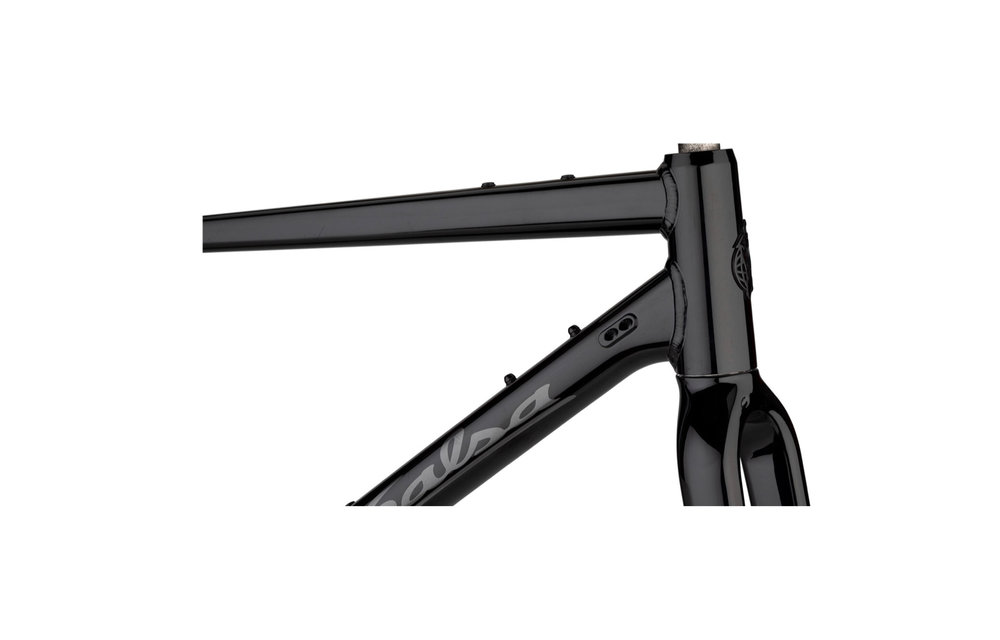

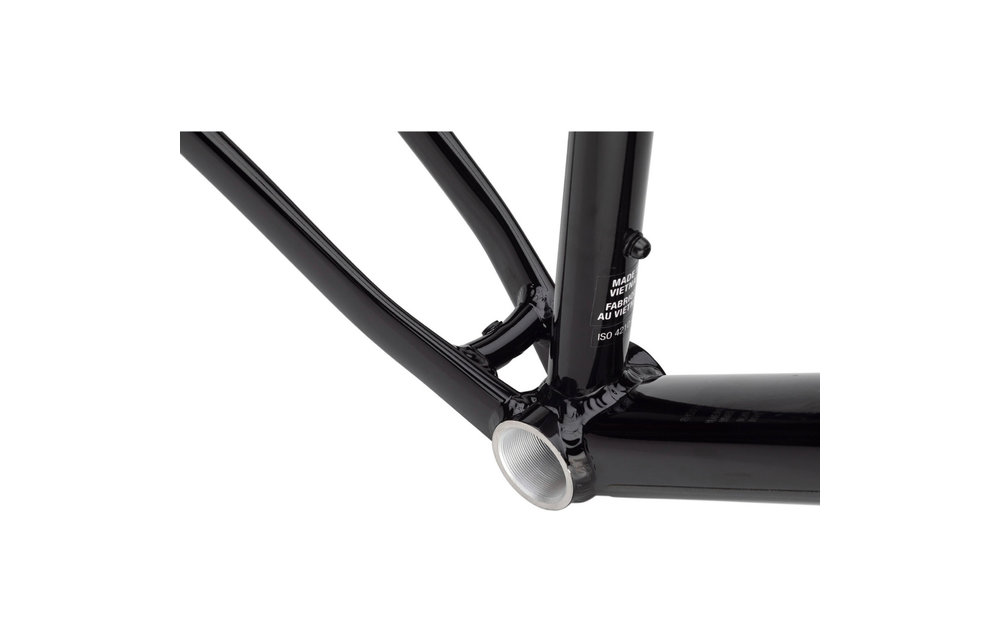

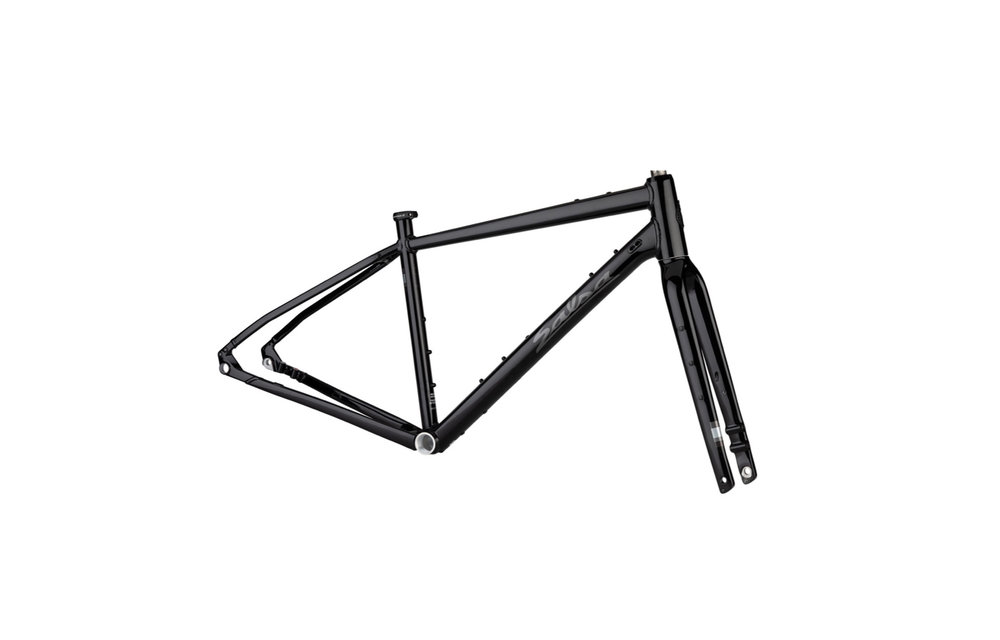

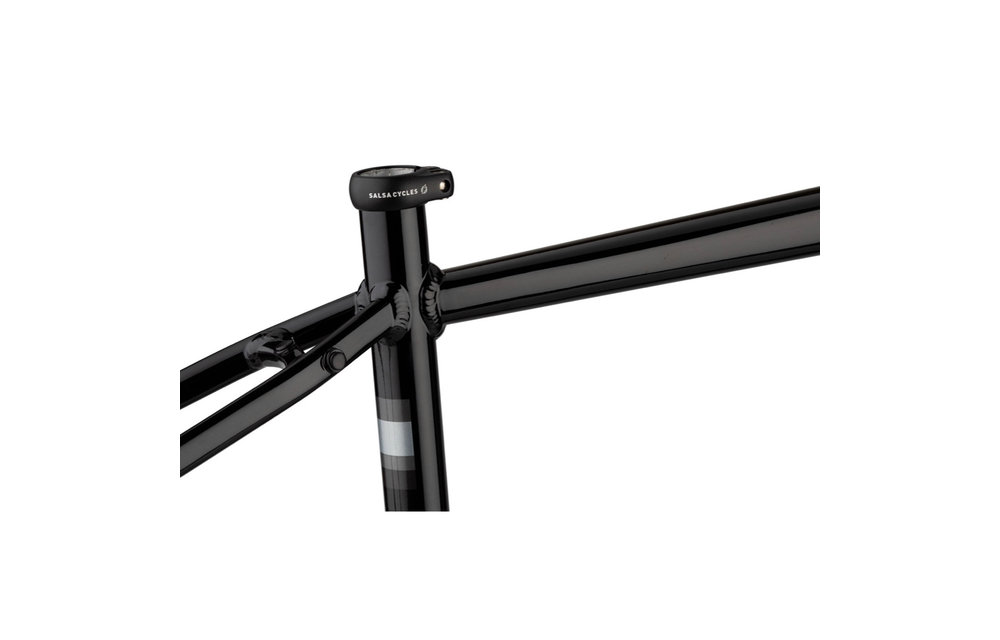

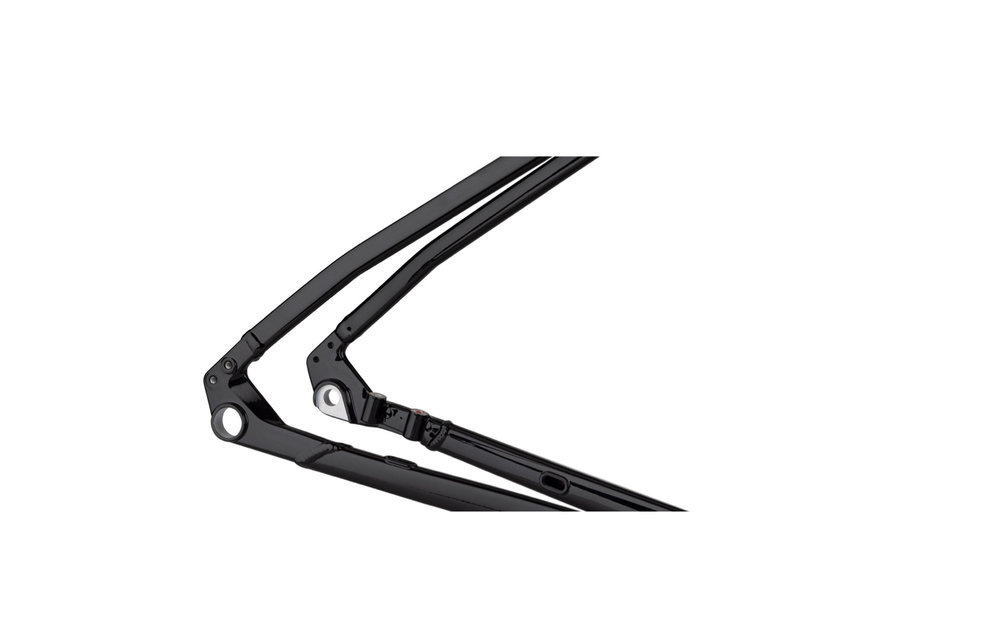

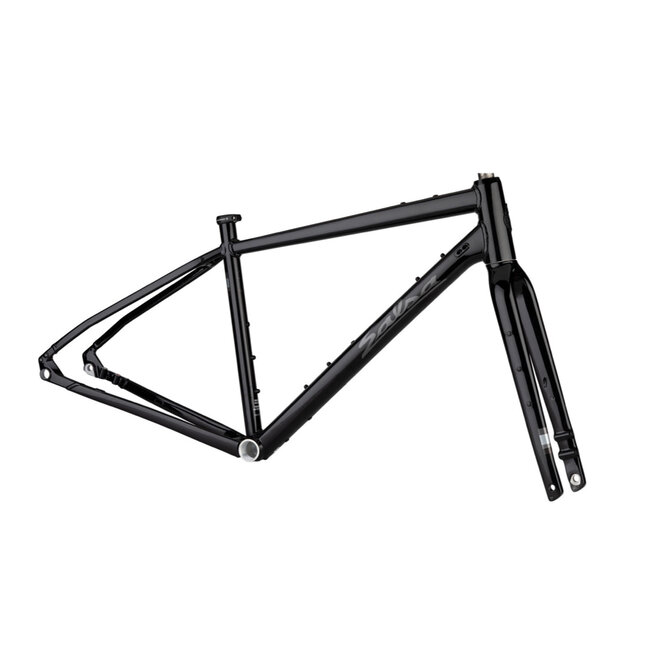

The Salsa Journeyer frameset has worlds of versatility built in. With an aluminum frame and our Waxwing carbon fork, massive tire clearance, and adaptable cargo options, you can build it into the best all-around bike ever. Journeyer’s gravel geometry keeps you comfortable and confident as you take on gravel roads, doubletrack, harsh pavement, and more. Use the Three-Pack mounts, top tube mount, and down tube accessory mount for a svelte gravel or bikepacking setup. Add racks and fenders for a fun and functional commuter that can handle any road or bike path. The Journeyer frameset lets you choose your journey.
- 6061-T6 alloy frame
- Salsa Waxwing carbon fork with fender mounts, Three-Pack mounts, mid-blade rack mounts, dynamo routing, and abrasion-resistant plate.
- Flat mount brakes
- Internal cable routing with stealth dropper post routing
- Top tube and down tube accessory mounts on frame hold ride essentials
- Compatible with 700c and 650b wheels and tires
- Frame fits tires up to 700c x 50 mm or 650b x 55 mm (27.5 x 2.1")
- Waxwing fork fits tires up to 700c x 50 mm or 650b x 56.5 mm (27.5 x 2.25")
- 12 x 100 mm thru-axle front, 12 x 142 mm thru-axle rear
Frameset
Frame
Journeyer Drop-Bar Thru-Axle
Fork
Waxwing
Components
Headset
FSA NO.42 ACB IS-2
Seatclamp
Salsa Lip-Lock, 32.0mm
* Specifications are subject to change without notice
| Frame measurements (mm) | 49cm | 51cm | 53cm | 55cm | 57cm | 60cm |
|---|---|---|---|---|---|---|
| A. BB Drop | 70 | 70 | 70 | 70 | 70 | 70 |
| B. Chainstay Length | 440 | 440 | 440 | 440 | 440 | 440 |
| C. Fork Length - Axle to Crown | 402 | 402 | 402 | 402 | 402 | 402 |
| D. Fork Offset | 50 | 50 | 50 | 50 | 50 | 50 |
| E. Head Tube Angle (deg) | 68.5 | 69.5 | 69.5 | 69.5 | 69.5 | 69.5 |
| F. Headtube Length | 90 | 105 | 130 | 150 | 180 | 210 |
| G. Reach | 366 | 368 | 372 | 376 | 387 | 408 |
| H. Seat Tube Angle (deg) | 76.0 | 75.0 | 74.0 | 73.0 | 73.0 | 73.0 |
| I. Seat Tube Length - Center to Top | 340 | 380 | 410 | 450 | 490 | 520 |
| J. Stack | 510 | 528 | 552 | 570 | 598 | 627 |
| K. Standover | 617 | 652 | 688 | 724 | 760 | 807 |
| L. Top Tube Length (Effective) | 493 | 510 | 530 | 550 | 570 | 600 |
| M. Wheelbase | 1027 | 1028 | 1040 | 1050 | 1072 | 1104 |
