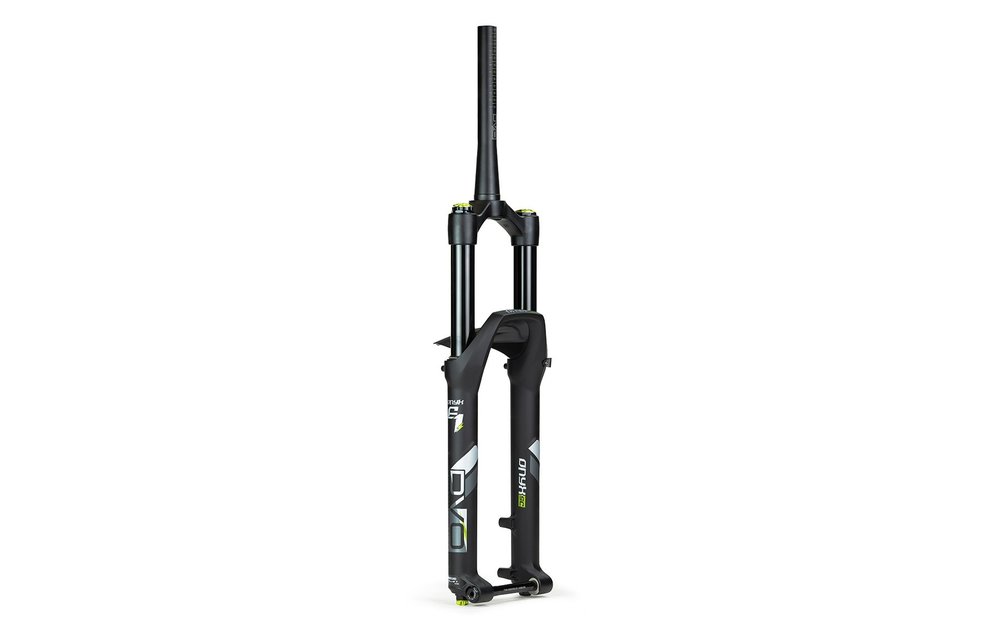

Onyx SC E1
Onyx SC E1

Onyx SC E1

$1,049.00 Excl. tax
Out of stock

Based on the solid foundation of our D1 platform, this is the E1 series. Though many E suspension platforms take an approach of increased compression damping and higher air pressure, we knew there was more to it. Read more.

  • Save 10% use discount code Thankyou10
  • Follow us on Instagram@Grizzlycycles661
  • free shipping on orders $99 and above. Use code SendItSafely at check out

Product description

The approach was to make a comfortable ride that maintained control when pushed hard. E-MTB’s provide the luxury of ripping both up and down the trail. Due to this, comfort was paramount as you pedal over obstacles at high speed. Increasing compression damping wasn’t the simple answer. Our D1 damper maintains a lighter compression tune for a supple ride that keeps you fresh until the battery runs out.

Due to the added weight and mileage from an E-MTB, we increased the bushing overlap within the casting. This provides two benefits; structural stability and longevity. When pushed hard, the increased overlap maintains structural integrity for precise steering in big hit situations. Durability also comes into play with the luxury of riding farther in a shorter amount of time. The new bushing design will allow you to rack up the miles without the loss in performance.

It’s a simple approach, but aren’t those always the best. Small changes equate to big advantages on the trail. This is the E1 series.



Highlights

  • 67% More Bushing Overlap
  • D1 Damper
  • Compression Bladder
  • OTT Off the Top Adjuster
  • Shim Stack Controlled Damping

In the Box

  • Fender Kit
  • Suspension Set Up Guide
  • DVO Decal

SPECS

Adjustments:

High/Low Speed Compression | Rebound | OTT



Travel Range:

160-180mm

Starting Weight:

27.5 – 2200g. | 29 -2250g.

Offset:

27.5 – 42mm | 29 -44mm

Axle To Crown

27.5 – 575mm | 29 -592mm

Measurements at max travels

Stanchions:

36mm Tapered Alloy

Wheel Size:

27.5 | 29

Axle

15mm Bolted- Boost Spacing

Brake Mounting

Direct Mount 180mm

Color Options:

Black

Specifications

EAN Code
811551026056
SKU
197-9102
