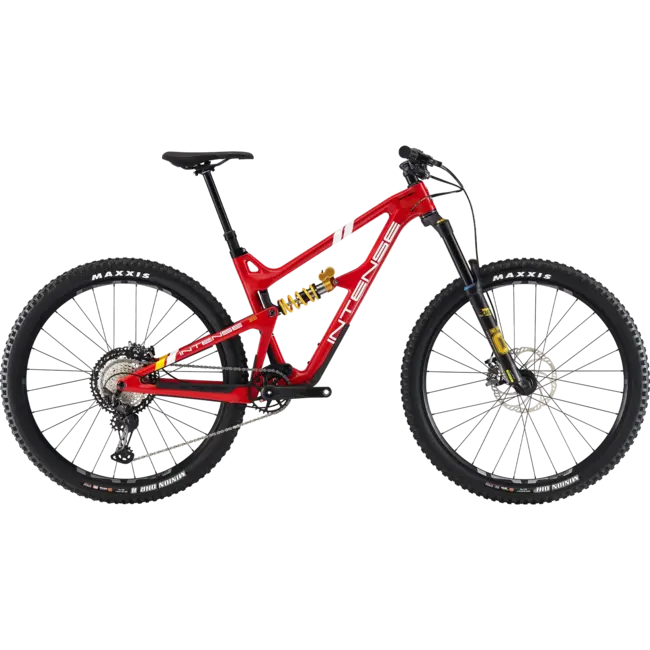

Primer S

$4,399.00

Our high-spec Primer S is pure trail bike perfection… everywhere. Providing the best build in our trail lineup, riding on 29" wheels and supported by Öhlins 160mm/140mm suspension.

Delivery time: In Store Pick Up Only
  • Rolling on super-fast 29” wheels, the Primer S will give you aggressive yet efficient trail-flattening speed over any obstacle, both on challenging climbs and technical descents. In short, the Primer S is the ultimate all-around premium trail bike. It could be the only mountain bike you’ll ever need.

    VERSATILITY

    The Primer trail bike is the most versatile model in our range. With 140mm of rear travel and 160mm up front, we have designed a bike that is capable and balanced but also nimble and fun at the same time, giving you confidence on long, all-day rides, jumps, or laps in your local woods.

    TRUE TO TRAIL The frame is the heart and soul of any bike. Our Primers are built around our perfectly designed monocoque carbon frame, with a dual-strut design rear triangle, optimized carbon fiber layup, a carbon top link, and adjustable 'Flip Chip" technology.

    FLIP CHIP ADJUSTMENT

    The Primer 29 has a 'Flip Chip' feature which allows you to alter your bike's geometry between two positions. The High setting is best in technical terrain, while the Low is more suitable for flow and bike park-style riding.


    THE JS TUNED TRAIL LINK

    We talk about JS Suspension a lot here at INTENSE. JS stands for Jeff Steber (our founder and CEO); simply put, it is a sophisticated suspension system that uses two counter-rotating links to connect the front and rear triangles of the bike. The links are precisely placed to separate the pedaling and braking forces from the suspension performance. Every model in our range has its own personal and specific JS tune.



      BUILD S
      WEIGHT 33 lbs 11 oz // 15.28 kg
      FRAME Primer S 29” Optimized Layup Monocoque UD Carbon Front and Rear Triangle, Carbon top link, Ti hardware, internal shift, dropper post and brake routing. ISCG05 mounts, flak guard armor, 140MM (5.5") travel
      FORK Ohlins RFX 36 M.2 / 160MM / Boost
      SHOCK Ohlins TTX22M Coil / 210MM x 50MM (140MM) / Front Reducer Size - 20MM X 6MM, Rear Reducer Size - 20MM x 8MM.
      COIL/SPRING

    350 lbs (S Size for 54 - 64 kg rider weight) / 450 lbs (M Size for 64 - 73 kg rider weight) / 500 lbs (L Size for 73 - 80 kg rider weight) / 550 lbs (XL Size for 80 - 84 kgs rider weight).


      HEADSET

    Cane Creek 40 / ZS44-EC49



      STEM

    e*Thirteen Plus 35 40MM


      HANDLEBARS

    e*Thirteen Race Carbon 35x800mm


      GRIPS

    IINTENSE Lock-on


      BRAKESET

    Magura MT7 Pro Front (Four Piston) Magura Storm HC 203MM Rotors / Magura MT7 Pro Rear (Four Piston) Magura Storm HC 180MM Rotors


      SHIFTER

    Shimano XT 12SP I-Spec


      DERAILLEUR

    Shimano XT 12SP


      CRANK

    e*Thirteen Helix Plus 12SP / 32t / 170MM SM-LG/ 175mm XL / Boost


      BOTTOM BRACKET

    e*Thirteen 24mm (Threaded)


      CASSETTE

    Shimano XT 12SP / 11-51T


      CHAIN

    Shimano XT 12SP


      WHEELSET e*Thirteen LG1 Enduro 30mm Rim


      HUBS

    e*Thirteen LG1 Race SL hubs 32 Hole 15x110 front, 12x148 rear hub 6-bolt

      TIRES Front: MAXXIS Minion DHF WT Maxx Grip 3C EXO 29" x 2.50" / Rear: MAXXIS Minion DHR II WT Maxx Terra 3C EXO+ 29" x 2.40"
      SEATPOST e*Thirteen Vario Infinite Dropper w/ adjustable travel 31.6MM / 120MM SM / 150MM MD / 180MM LG-XL (Frame Size Specific)
      SADDLE SDG Radar w/ Cr-Mo Rail

    BASED OFF HIGH SETTING

      HIGH SETTING SM MD LG XL
      SEATTUBE LENGTH

    408mm

    431mm

    451mm

    475mm
      TOPTUBE LENGTH

    581mm

    611mm

    640mm

    676mm
      STACK

    618mm

    619mm

    628mm

    647mm
      REACH

    402mm

    433mm

    458mm

    488mm
      BB HEIGHT

    352mm

    352mm


    352mm

    352mm
      BB DROP

    22.5mm

    22.8mm
    23mm


    23mm
      HEADTUBE LENGTH 90mm 90mm

    100mm 120mm
      HEADTUBE ANGLE 64.8°

    64.9°



    64.9°



    64.9°


      SEATUBE ANGLE (EFFECTIVE)

    73.9°


    73.9°



    73.9°


    73.9°


      STANDOVER HEIGHT 824mm

    824mm

    828mm


    837mm
      CHAINSTAY LENGTH 440mm

    440mm



    440mm

    440mm

      WHEELBASE 1177.5mm 1207.5mm 1236mm 1247mm
      LOW SETTING SM MD LG XL
      SEATTUBE LENGTH 408mm 431mm 451mm 475mm
      EFFECTIVE TOPTUBE 583mm 614mm 642mm 679mm
      STACK 622mm 623mm 633mm 652mm
      REACH 396mm 427mm 452mm 482mm
      BB HEIGHT 345mm 345mm

    345mm  345mm


      BB DROP 30mm 30mm

    30mm


    30mm
      HEADTUBE LENGTH 90mm 90mm 100mm 120mm
      HEADTUBE ANGLE 64.3°


    64.3°

    64.3°



    64.3°


      SEATTUBE ANGLE (EFFECTIVE)

    73.2°


    73.2°


    73.2°



    73.2°


      STANDOVER HEIGHT

    818mm

    818mm


    822mm


    831mm


      CHAINSTAY LENGTH 441.5mm

    441.5mm


    441.5mm


    441.5mm


      WHEELBASE 1178.6mm 1209mm  1238mm 1276mm
