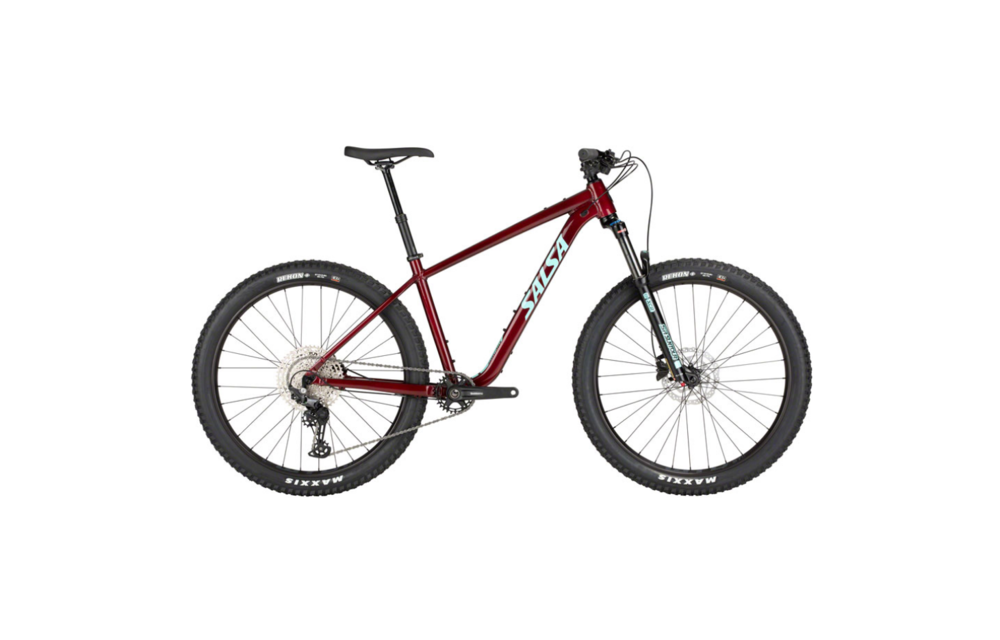

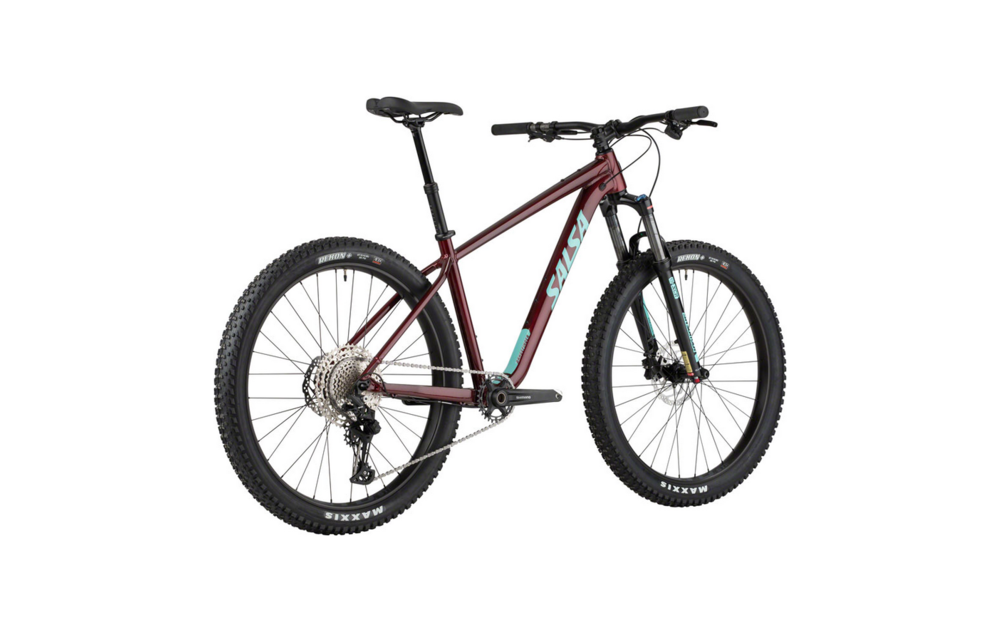

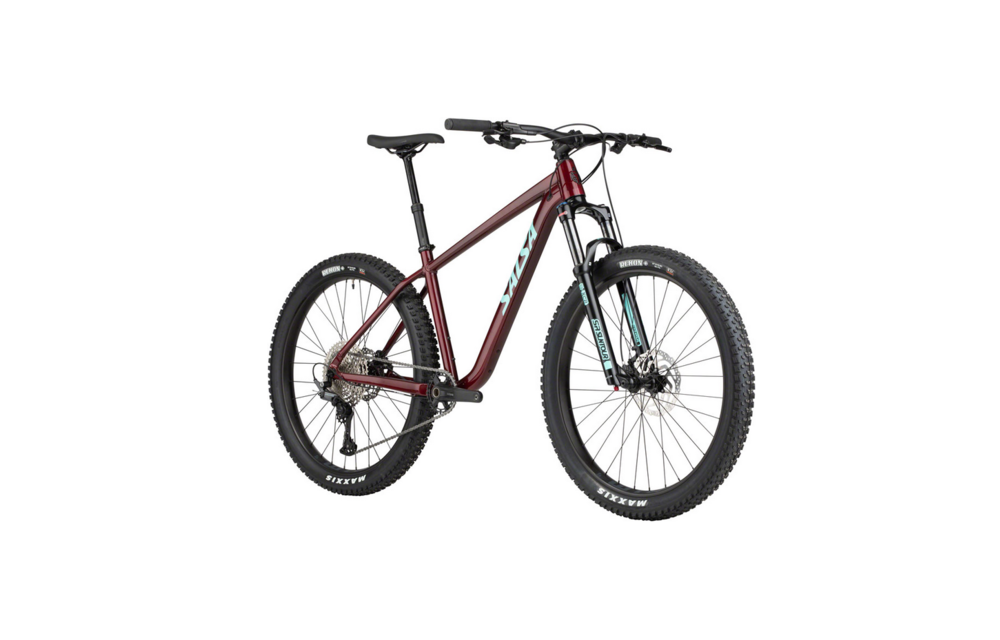

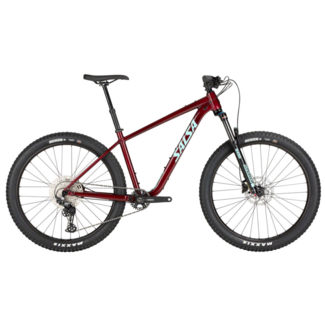

Built for riders who want to start discovering their local trail systems, Rangefinder offers geometry and spec designed for the perfect introduction to mountain biking. Rangefinder opens up singletrack and doubletrack adventures and offers provisions for bikepacking setups so riders can expand their off-road repertoires. Rangefinder is mountain biking for the masses.

• 6061-T6 alloy frame
• Internally-routed shift, brake and dropper post housing
• 120 mm suspension fork and dropper post
• 1x drivetrain keeps shifting simple with plenty of gear range
• Hydraulic brakes offer confident stopping power
• Compatible with 29" or 27.5 plus wheels and tires
• Carry what you need with the integrated top tube bag mount, two bottle cage mounts in the frame on M, L, and XL sizes, one accessory mount under the down tube, and rear rack mounts
• Geometry that grants confidence to newer mountain bikers



Measurements based on 27.5 x 2.8” wheels and 120mm Suspension Fork

Frame measurements (mm)	XS	SM	MD	LG	XL
A. BB Drop	58	58	58	58	58
B. Chainstay Length	439	439	439	439	439
C. Fork Length - Axle to Crown	510	510	510	510	510
D. Fork Offset	46	46	46	46	46
E. Head Tube Angle (deg)	68.0	68.0	68.0	68.0	68.0
F. Headtube Length	95	100	105	115	125
G. Reach	395	416	439	465	489
H. Seat Tube Angle (deg)	74.0	74.0	74.0	74.0	74.0
I. Seat Tube Length - Center to Top	355.0	381.0	431.0	470.0	508.0
J. Stack	605.6	610.2	614.9	624.2	633.4
K. Standover	678.6	698.3	737.2	769.1	798.7
L. Top Tube Length (Effective)	568.2	590.5	614.8	643.5	670.1
M. Wheelbase	1100.6	1123.4	1148.3	1178.0	1205.8
Component measurements (mm)
Crank Arm Length	170	170	175	175	175
Handlebar Width	750	750	800	800	800
Handlebar Rise / Drop	0	0	20	20	20
Stem Length	60	60	60	60	60
Stem Angle (deg)	6	6	6	6	6

* All dimensions are preliminary and subject to change
