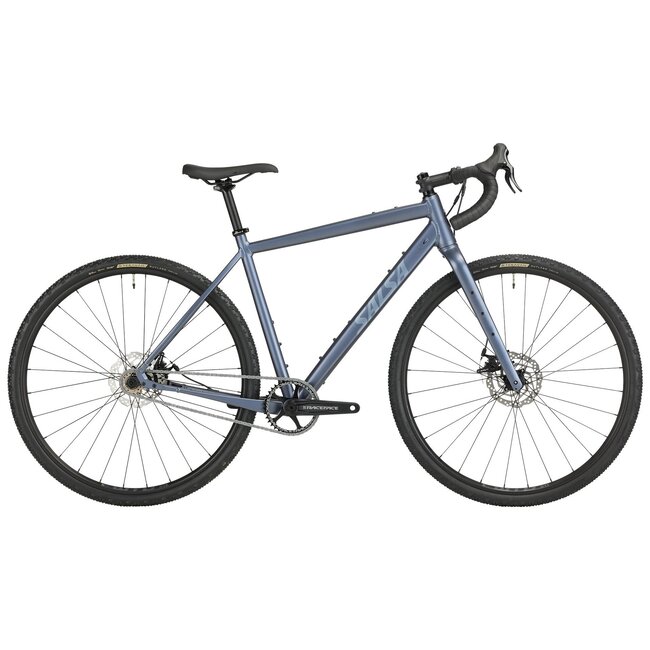

Stormchaser Single Speed

$1,899.00
  • Stormchaser Single Speed is our minimalist gravel bike. It thrives in gritty, muddy conditions with its simple single-speed drivetrain and extra tire clearance. The 6066-T6 alloy frame features our impact-absorbing Class 5™ VRS frame design, paired with a carbon fork to further reduce road vibrations for all-day comfort. Alternator Flat Mount dropouts make chain tensioning easy and also accommodate 1x geared drivetrains (with Alternator Flat Mount geared dropout plate, 465 Derailleur Hanger, and Axle Stud Kit, sold separately). Cargo mounts on the frame and fork let you load up for long rides without resupply. Stormchaser Single Speed comes equipped with a 17- and 18-tooth cog — go with the 17 for faster days and flatter routes, or the 18 for courses with more climbing. Stormchaser is a comfortable, reliable single speed gravel bike that’s unphased by the ugliest road conditions.



    Frameset

    Frame
    Stormchaser Aluminum
    Fork
    Stormchaser C
    Color
    Charcoal Blue
    Rear Shock
    N/A

    Drivetrain

    Front Derailleur
    N/A
    Rear Derailleur
    N/A
    Cassette
    Spacer kit with 17t and 18t cog
    Chain
    KMC Z1eHX EPT Anti-Rust
    Crankset
    Race Face Ride, 38t
    Shifter
    N/A
    Brakes & Rotors
    TRP Spyre mechanical disc brakes, Shimano RT10 rotors (Center Lock, 160 mm)

    Components

    Headset (Upper/Lower)
    FSA No.42 ACB
    Stem
    Salsa Guide
    Handlebar
    Salsa Cowchipper
    Grips/Bar Tape
    Velo anti-slip, shock-proof silicone tape
    Seatpost
    Salsa Guide
    Saddle
    WTB Volt Medium Steel

    Wheels

    Front Wheel
    Shimano RS470 12 x 100 mm hub, WTB ST TCS 2.0 i23 29" rim, 28h (taped for tubeless, WTB tubeless valve included). Tubes installed
    Rear Wheel
    Shimano RS470 12 x 142 mm hub, WTB ST TCS 2.0 i23 29" rim, 28h (taped for tubeless, WTB tubeless valve included). Tubes installed
    Tires
    Teravail Rutland 700 x 42 mm, tubeless ready, Durable casing

    *Specification and pricing subject to change without notice.

    Design Wheel/Tire Sizes
    700c x 42 mm
    Alternate Wheel/Tire Sizes
    700c x 32–50 mm; 650b x 47–50 mm
    Suspension Fork Length (Travel)
    N/A
    Rigid Fork Length
    420 mm
    Fork Offset
    51 mm
    Headset, Upper
    IS41
    Headset, Lower
    IS52
    Seatpost
    27.2 mm
    Seatpost Collar
    32.0 mm
    Dropper Compatible (Routing)
    Yes (internal)
    Front Derailleur Clamp
    N/A
    Front Derailleur Type
    N/A
    Bottom Bracket
    73 mm BSA, threaded
    Crankset (Max Ring - Single Speed)
    1x crankset, 40t max, Race Face/Easton 51 mm chainline, single speed only
    Crankset (Max Ring - Geared)
    1x crankset only, 38t max, 49 mm MTN chainline, 168 Q-factor min.
    Front Brake (Rotor)
    Flat mount frame standard, 35 mm thickness, 42 mm bolt length (160 mm rotor only)
    Rear Brake (Rotor)
    Flat mount frame standard, 20 mm thickness, 27 mm bolt length (140–160 mm rotor)
    Rear Spacing
    12 x 142 mm TA
    Rear Axle Size
    M12 x 167L, TP = 1.5, TL = 20 mm (NOTE, DOES NOT FIT SALSA DEABOLT W/ LEVER. DEADBOLT UL TOOLED AXLE ONLY)
    Derailleur Hanger
    Hanger 465, QBP# FS2322 (Requires geared Alternator Flat Mount Plate, QBP# FS0719, and Hanger Axle/Stud Kit, QBP# FS1181)
    Rear Rack Mounts
    Yes, universal rack rear compatible. Salsa Post-Lock seat collar required. Salsa Wanderlust Rack recommended.
    Fender Mounts
    Yes, required fender hardware included.
    Max Tire Size with Fenders
    700c x 47 mm
    Water Bottle Mounts
    Frames up to 56 cm: 2 in main triangle. Frames 57.5 cm and larger: 3 in main triangle.
    Downtube Accessory Mounts
    One
    Top Tube Mounts
    Yes, compatible with Salsa EXP Series Top Tube bag.
    Stem Clamp
    28.6 mm
    Crown Race
    Integrated SHIS 40, 36° Angle
    Front Spacing
    12 x 100 mm TA
    Front Axle
    M12 x 120L, TP = 1.5, TL = 12 mm
    Three-Pack Mounts
    One mount per fork leg.
    Rack Mounts
    165 mm Low-rider compatible. Salsa Down Under rack recommended.




    Stormchaser Single Speed frame
    Size 49cm 52.5cm 54.5cm 56cm 57.5cm 59cm 61cm
    A. Effective Top Tube 506 527 545 560 575 590 605
    B. Stand Over 686 727 756 786 794 820 843
    C. Reach 366 371 373 382 392 401 411
    Crank Arm Length 165 170 175 180 180 180 180
    D. Stack 530 544 563 581 600 619 637
    E. Total Seat Tube Length 390 440 475 510 520 545 570
    F. Headtube Length 90 105 125 145 165 185 205
    G. Headtube Angle 70 70 70 70 70 70 70
    H. Seat Tube Angle 75.25 74 73 73 73 73 73.1
    Handlebar Width 40cm 42cm 44cm 46cm 48cm 50cm 52
    I. BB Drop 70 70 70 70 70 70 70
    J. BB Height 290 290 290 290 290 290 290
    K. Chainstay Length 435–450 435–450 435–450 435–450 435–450 435–450 435–450
    L. Fork Length Axle to Crown 420 420 420 420 420 420 420
    M. Fork Offset 51 51 51 51 51 51 51
    N. Wheelbase 1017–1032 1027–1041 1037–1051 1053–1067 1069–1084 1085–1100 1101–1116
    Recommended Rider Height 142cm–157cm 155cm–165cm 162cm–173cm 170cm–180cm 178cm–188cm 185cm–193cm 190cm–UP
    Stem Length 60 70 80 90 90 100 110

    Measurements based on:

    • a fork measuring 420x51mm
    • a 700x42mm tire measuring 720 mm in diameter
    • standover (B) measured vertically to top of toptube from a position 50mm forward of BB center.
