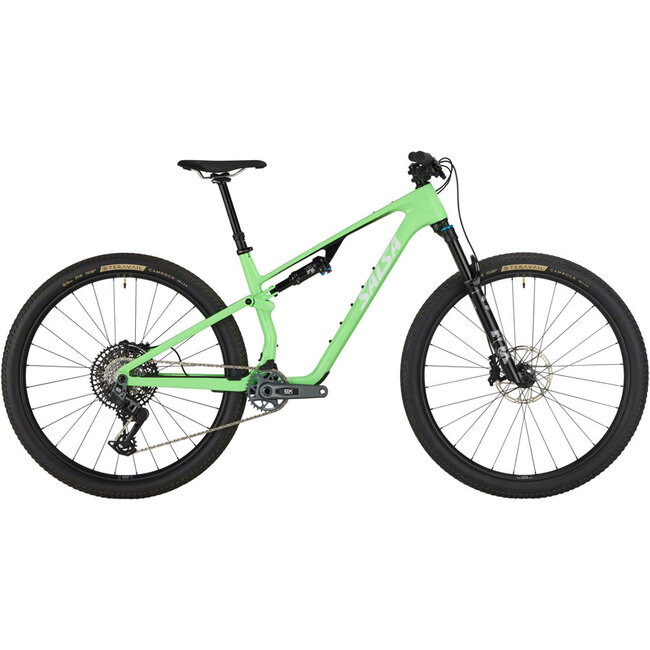

Faster, farther, more efficient: that’s the Spearfish ethos. Our endurance XC mountain bike is built with our all-new Deluxe carbon construction option that’s more than 250 grams lighter than our standard carbon offering. This stiff, lightweight carbon frame translates more of your pedal power into propulsion and rewards you with responsive handling. 120mm of Split Pivot rear suspension travel provides supreme pedaling efficiency and active traction throughout its travel. A 120mm Fox 34 SL Performance Elite GRIP X fork delivers 120mm of front suspension travel to keep you in control over rugged tracks.
Convenient cargo mounts let you adapt your loadout for casual trail rides with friends or can’t-stop FKT attempts. Carry two bottles (or up to three on MD–XL frames), your repair kit, and accessories like our EXP-R Series Trillium Top Tube Bag or a K-Edge computer mount — all on your frame. The SRAM GX Transmission groupset combines the precision and speed of electronic shifting with the durability of SRAM’s Full Mount derailleur design for a system that’s more hurry, less worry.
Spearfish C DLX GX Transmission is the perfect endurance and XC mountain bike for chasing your next monumental Adventure by Bike.
Bike Key Features
-
Split Pivot Suspension System
- Allows us to tune the pedaling and braking forces independently
- Maximizes pedaling and braking performance without compromising either
- Results in optimal pedaling efficiency and traction when braking
View More
-
Split Pivot +
- Multiple travel classes in one chassis provides riders with the opportunity to adapt their bikes to various adventures
View More
-
Flip Chip
- Provides the ability to alternate wheel and tire sizes
- Riders can adjust for their terrain, or desired handling characteristics
View More
-
Suspension Kinematics
- Lively, responsive ride feel with good bottom-out resistance
- Free, active, and uniform suspension feel under braking
- Efficient pedaling, stellar climbing traction, supple small-bump performance
- Tunable for all riders
View More
-
On-Bike Storage
- Adventures require gear and riders should get to choose whether they carry it on their bike or on their body
View More
-
Frame Protection
- Our products are built from experience — we’ve been there enough to know that a carbon fork can benefit from added protection just as much as the downtube on a suspension bike.
View More
Frame
Spearfish Carbon Deluxe
Suspension Fork
Fox 34 SL Performance Elite, GRIP X, 120mm
Rear Shock
Fox Float SL LV Performance Elite
Components
Headset
FSA Orbit 1.5E ZS NO.57E
Seatpost
TranzX YSI08 RAD+ Dropper Post w/ GL Stealth MMX Lever, XS: 125mm travel; SM–MD: 150mm travel; LG–XL: 170mm travel
Stem
Salsa 35.0 Guide Trail, 50mm
Grips/Bar Tape
WTB Wavelength Lock-On
Saddle
WTB Silverado, Medium, Cromoly, DNAx
Handlebar
Race Face Turbine
Drivetrain
Rear Derailleur
SRAM GX Eagle Transmission
Cassette
SRAM GX Eagle Transmission XS-1275, 10-52t, 12-speed
Chain
SRAM GX Eagle Transmission Flattop
Crankset
SRAM GX Eagle Transmission, 32t. MRP 1x SL TR2 28-34t Direct Mount Guide
Shifter
SRAM AXS Pod Rocker, Right w/ MatchMaker X Clamp
Brake Levers
SRAM Motive Bronze Stealth
Brake Calipers
SRAM Motive Bronze Stealth, 4-piston
Bottom Bracket
SRAM DUB PF92 MTB Wide
Rotors
SRAM CenterLine 2.0, (6-bolt, 180mm front and rear)
Wheels
Front Tire
Teravail Camrock 29x2.4", Light Trail casing, WTB TCS Sealant included
Rear Tire
Teravail Camrock 29x2.4", Light Trail casing, WTB TCS Sealant included
Front Hub
WTB Frequency 15x110mm
Rear Hub
WTB Frequency 12x148mm
Spoke
Double-butted Pillar Stainless Steel, black
Rim
WTB KOM Light i30 TCS, 28h
Weight
*Specifications are subject to change without notice
Geometry
Size |
X-Small |
Small |
Medium |
Large |
X-Large |
A. Effective Top Tube |
567.8- 568.6 |
584.9- 585.7 |
606.9- 607.7 |
629.0- 629.8 |
651.1- 651.9 |
B. Stand Over |
719.1- 716.4 |
719.2- 716.3 |
719.2- 716.3 |
719.3- 716.2 |
719.3- 716.2 |
C. Reach |
435.0- 431.4 |
450.0- 446.5 |
470.0- 466.5 |
490.0- 486.4 |
510.0- 506.5 |
D. Stack |
589.3- 591.9 |
598.4- 601.1 |
607.6- 610.3 |
616.7- 619.6 |
625.9- 628.8 |
E. Total Seat Tube Length |
380.0 |
405.0 |
430.0 |
455.0 |
480.0 |
F. Headtube Length |
95.0 |
105.0 |
115.0 |
125.0 |
130.0 |
G. Headtube Angle |
66.3
-
66.0
|
66.3
-
66.0
|
66.3
-
66.0
|
66.3
-
66.0
|
66.3
-
66.0
|
H. Seat Tube Angle |
77.3
-
77.0
|
77.3
-
77.0
|
77.3
-
77.0
|
77.3
-
77.0
|
77.3
-
77.0
|
I. BB Drop |
31.0- 35.4 |
31.0- 35.5 |
31.0- 35.5 |
31.0- 35.6 |
31.0- 35.6 |
J. BB Height |
342.0- 337.6 |
342.0- 337.5 |
342.0- 337.5 |
342.0- 337.4 |
342.0- 337.4 |
K. Chainstay Length |
430.0- 431.2 |
430.0- 431.2 |
430.0- 431.2 |
430.0- 431.2 |
430.0- 431.2 |
L. Fork Length Axle to Crown |
530.0 |
530.0 |
530.0 |
530.0 |
530.0 |
M. Fork Offset |
44.0 |
44.0 |
44.0 |
44.0 |
44.0 |
N. Wheelbase |
1157.0- 1157.7 |
1176.1- 1176.7 |
1200.0- 1200.7 |
1224.1- 1224.7 |
1248.1- 1248.7 |
Crank Arm Length |
165.0 |
165.0 |
165.0 |
170.0 |
170.0 |
Handlebar Width |
760.0 |
760.0 |
800.0 |
800.0 |
800.0 |
Recommended Rider Height |
146.0 - 159.0 |
157.0 - 170.0 |
168.0 - 180.0 |
178.0 - 191.0 |
188.0 |
Stem Length |
50.0 |
50.0 |
50.0 |
50.0 |
50.0 |
Measurements based on:
- an unsprung bike (no sag)
- a 29 x 2.4" tire measuring 746mm in diameter
- Standover is measured from vertically from ground to top of top tube 50mm forward of bottom bracket center
- Note: Where two measurements are listed, the first number is with Flip Chip in default High position; the second number is with Flip Chip in Low position
Frame Specs
- Design Wheel/Tire Sizes29 x 2.0–2.4"
- Max Tire Outer Diameter Frame: 29 x 2.4"
Fork: Max. tire diameter: 758mm, Max. tire width 66mm
- Frame ConstructionCarbon
- Suspension Fork Length (Travel)130mm
- Fork Offset44mm
- Axle to Crown541mm
- Rear Spacing12 x 148mm
- Rear Axle Size12 x 188mm, TP=1.0, TL=13mm
- Front Brake (Rotor)74mm post mount (180–200mm)
- Headset - UpperZS44/28.6
- Headset - LowerZS56/40
- Rear Shock Size 190 x 45mm
Forward Shock Mount: Ø8 x 20mm
Rearward Shock Mount: Standard Ø15MM, no bushing
- Front Spacing15 x 110mm
- Front Axle SizeMaxle Stealth: 15 x 158mm, TP=M15x1.5, TL=9
- Steerer Tube1.125–1.5" tapered
- Crown Race59mm
- Seatpost30.9mm
- Dropper Post CompatibleYes (internal)
- Seatpost Clamp35.4mm
- Max Post InsertionSM: 215mm; MD: 240mm; LG: 265mm; XL: 290mm
- Derailluer HangerSRAM UDH (w/ Ø30mm washer)
- Bottom BracketBB92 press-fit
- Crankset (Max Ring)34t
- Accessory MountsXS–SM: downtube accessory mount; MD–XL: Three-Pack downtube mount; Top tube accessory mounts on all sizes
- Bottle Mounts XS–SM: two full size bottles; MD–XL: three full size bottles
XS-XL Configuration For 2 Water Bottles
MD Configuration For 3 Water Bottles
LG-XL Configuration For 3 Water Bottles
