Efficiency goes a long way when you’re going a long way. Spearfish is our carbon endurance and XC bike designed for the toughest singletrack events on Earth. It all starts with our new Deluxe carbon construction, shaving more than 250 grams off our standard carbon with no compromise in ride quality, stiffness, or durability. Paired with 120mm of Split Pivot rear suspension travel, Spearfish offers awesome pedaling efficiency and traction. A 120mm RockShox SID Ultimate Flight Attendant fork smooths out even the roughest sections of singletrack.
Equip yourself for anything with Spearfish’s on-bike cargo mounts: carry two bottles (or up to three on MD–XL frames), a multitool, and tube, and use the top tube mounts for our EXP-R Series Trillium Top Tube Bag or a K-Edge computer mount. SRAM’s X0 Transmission drivetrain delivers precisions shifts in a blip while the WTB CZR Trail carbon wheels cut rotational weight to save you precious energy.
One ride on Spearfish C DLX X0 Transmission and you’ll see why it’s the best XC mountain bike when every ounce of effort and endurance matters.
Bike Key Features
-

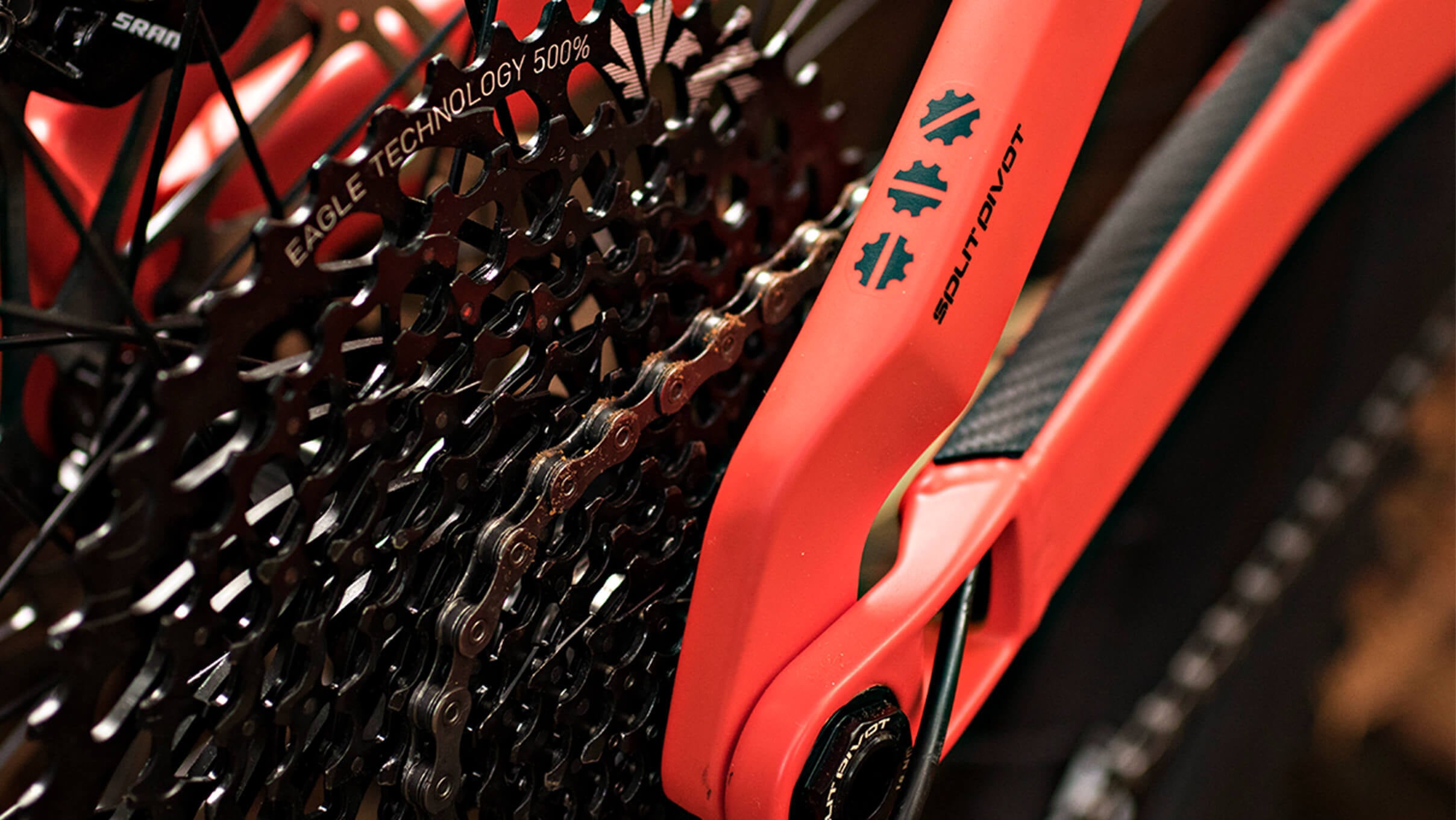

Split Pivot Suspension System
- Allows us to tune the pedaling and braking forces independently
- Maximizes pedaling and braking performance without compromising either
- Results in optimal pedaling efficiency and traction when braking
View More
-

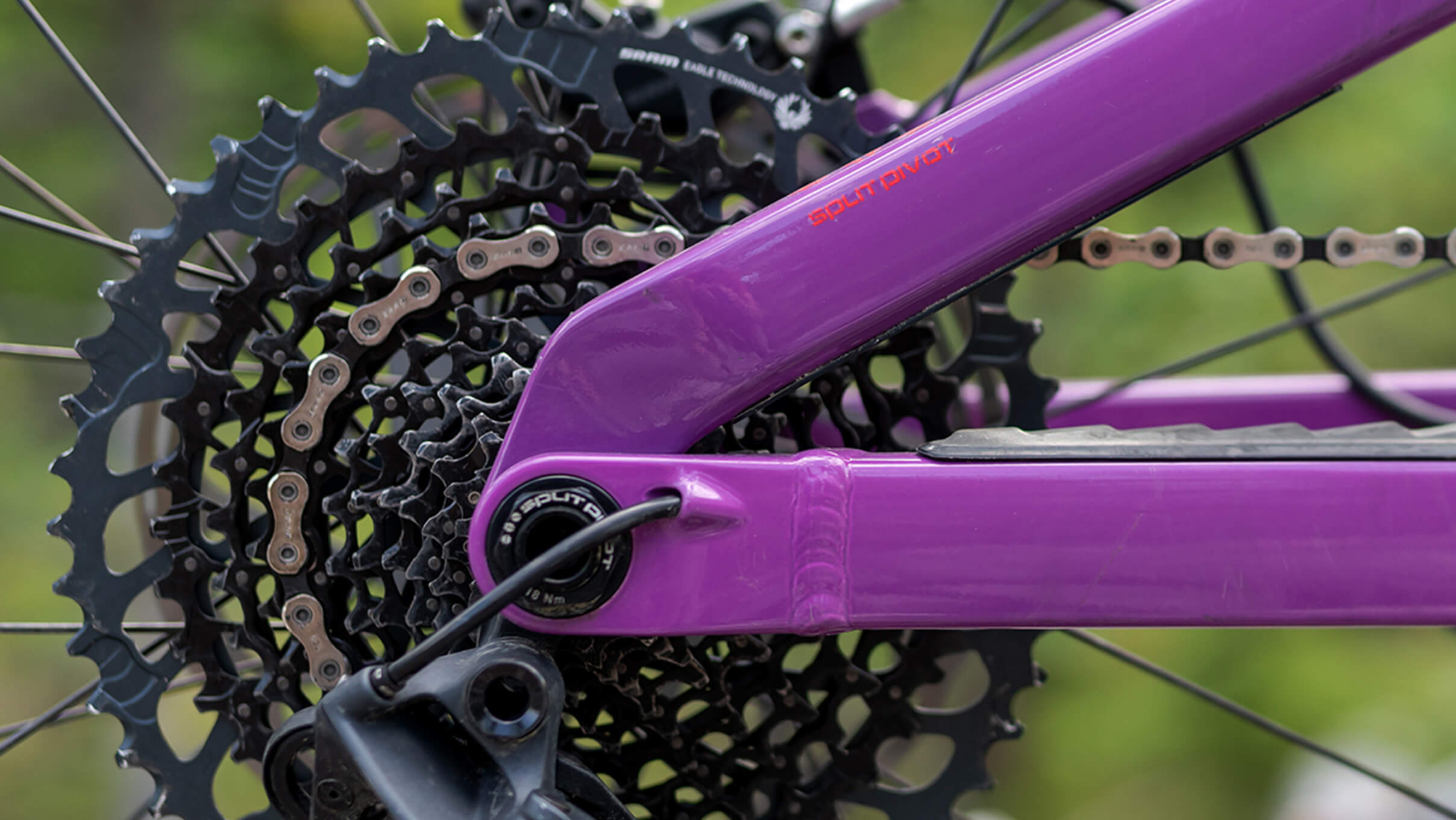

Split Pivot +
- Multiple travel classes in one chassis provides riders with the opportunity to adapt their bikes to various adventures
View More
-

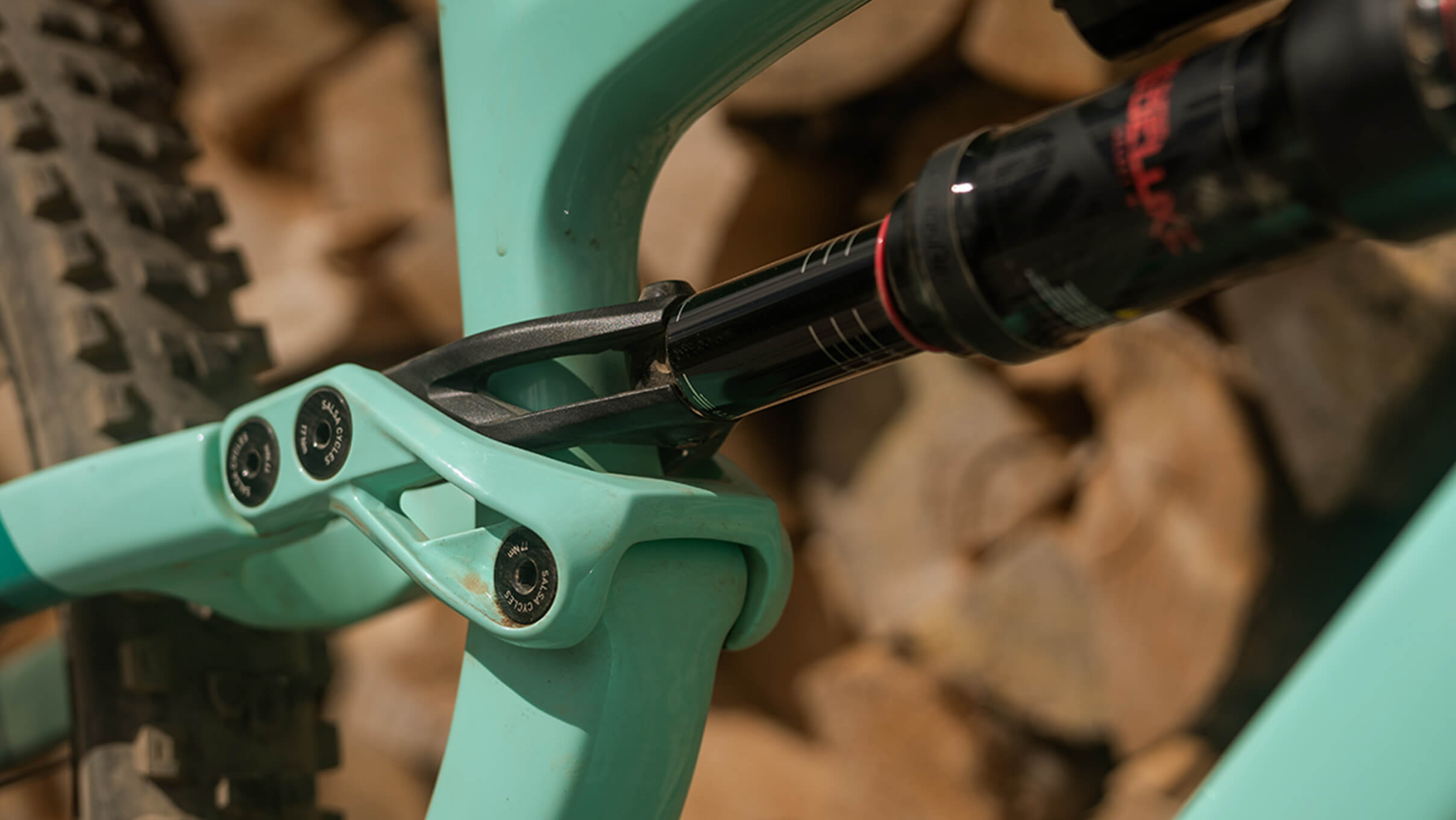

Flip Chip
- Provides the ability to alternate wheel and tire sizes
- Riders can adjust for their terrain, or desired handling characteristics
View More
-
Suspension Kinematics
- Lively, responsive ride feel with good bottom-out resistance
- Free, active, and uniform suspension feel under braking
- Efficient pedaling, stellar climbing traction, supple small-bump performance
- Tunable for all riders
View More
-
On-Bike Storage
- Adventures require gear and riders should get to choose whether they carry it on their bike or on their body
View More
-
Frame Protection
- Our products are built from experience — we’ve been there enough to know that a carbon fork can benefit from added protection just as much as the downtube on a suspension bike.
View More
Frameset
Frame
Spearfish Carbon Deluxe
Suspension Fork
RockShox SID Ultimate Flight Attendant, 120mm
Rear Shock
RockShox SIDLuxe Ultimate Flight Attendant
Components
Headset
FSA Orbit 1.5E ZS NO.57E
Seatpost
RockShox Reverb AXS, XS: 125mm travel; SM–MD: 150mm travel; LG–XL: 170mm travel
Grips/Bar Tape
WTB Wavelength Lock-On
Saddle
WTB Silverado, Medium, Steel SL, Fusion Form
Handlebar
Salsa Guide Carbon
Drivetrain
Rear Derailleur
SRAM X0 Eagle Transmission
Cassette
SRAM X0 Eagle Transmission XS-1295, 10-52t, 12-speed
Chain
SRAM X0 Eagle Transmission Flattop
Crankset
SRAM X0 Eagle Transmission Power Meter Crankset, 32t; MRP 1x SL TR2 28–34t Direct-Mount Guide
Shifter
SRAM AXS Pod Rocker, Right and Left w/ MatchMaker X Clamps
Brake Levers
SRAM Motive Ultimate Stealth
Brake Calipers
SRAM Motive Ultimate Stealth, 4-piston
Bottom Bracket
SRAM DUB PF92 MTB Wide
Rotors
SRAM CenterLine X (6-bolt w/ titanium bolts, 180mm front and rear)
Wheels
Front Tire
Teravail Camrock 29x2.4", Light Trail casing, tan sidewall, WTB TCS Sealant included
Rear Tire
Teravail Camrock 29x2.4", Light Trail casing, tan sidewall, WTB TCS Sealant included
Front Hub
WTB Frequency 15x110mm
Rear Hub
WTB Frequency 12x148mm
Rim
WTB CZR Trail Carbon i30, 28h
Weight
*Specifications are subject to change without notice
Geometry
Size |
X-Small |
Small |
Medium |
Large |
X-Large |
A. Effective Top Tube |
567.8- 568.6 |
584.9- 585.7 |
606.9- 607.7 |
629.0- 629.8 |
651.1- 651.9 |
B. Stand Over |
719.1- 716.4 |
719.2- 716.3 |
719.2- 716.3 |
719.3- 716.2 |
719.3- 716.2 |
C. Reach |
435.0- 431.4 |
450.0- 446.5 |
470.0- 466.5 |
490.0- 486.4 |
510.0- 506.5 |
D. Stack |
589.3- 591.9 |
598.4- 601.1 |
607.6- 610.3 |
616.7- 619.6 |
625.9- 628.8 |
E. Total Seat Tube Length |
380.0 |
405.0 |
430.0 |
455.0 |
480.0 |
F. Headtube Length |
95.0 |
105.0 |
115.0 |
125.0 |
130.0 |
G. Headtube Angle |
66.3
-
66.0
|
66.3
-
66.0
|
66.3
-
66.0
|
66.3
-
66.0
|
66.3
-
66.0
|
H. Seat Tube Angle |
77.3
-
77.0
|
77.3
-
77.0
|
77.3
-
77.0
|
77.3
-
77.0
|
77.3
-
77.0
|
I. BB Drop |
31.0- 35.4 |
31.0- 35.5 |
31.0- 35.5 |
31.0- 35.6 |
31.0- 35.6 |
J. BB Height |
342.0- 337.6 |
342.0- 337.5 |
342.0- 337.5 |
342.0- 337.4 |
342.0- 337.4 |
K. Chainstay Length |
430.0- 431.2 |
430.0- 431.2 |
430.0- 431.2 |
430.0- 431.2 |
430.0- 431.2 |
L. Fork Length Axle to Crown |
530.0 |
530.0 |
530.0 |
530.0 |
530.0 |
M. Fork Offset |
44.0 |
44.0 |
44.0 |
44.0 |
44.0 |
N. Wheelbase |
1157.0- 1157.7 |
1176.1- 1176.7 |
1200.0- 1200.7 |
1224.1- 1224.7 |
1248.1- 1248.7 |
Crank Arm Length |
165.0 |
165.0 |
165.0 |
170.0 |
170.0 |
Handlebar Width |
760.0 |
760.0 |
800.0 |
800.0 |
800.0 |
Recommended Rider Height |
146.0 - 159.0 |
157.0 - 170.0 |
168.0 - 180.0 |
178.0 - 191.0 |
188.0 |
Stem Length |
40.0 |
40.0 |
40.0 |
40.0 |
40.0 |
Measurements based on:
- an unsprung bike (no sag)
- a 29 x 2.4" tire measuring 746mm in diameter
- Standover is measured from vertically from ground to top of top tube 50mm forward of bottom bracket center
- Note: Where two measurements are listed, the first number is with Flip Chip in default High position; the second number is with Flip Chip in Low position
Frame Specs
- Design Wheel/Tire Sizes29 x 2.0–2.4"
- Max Tire Outer Diameter Frame: 29 x 2.4"
Fork: Max. tire diameter: 758mm, Max. tire width 66mm
- Frame ConstructionCarbon
- Suspension Fork Length (Travel)130mm
- Fork Offset44mm
- Axle to Crown541mm
- Rear Spacing12 x 148mm
- Rear Axle Size12 x 188mm, TP=1.0, TL=13mm
- Front Brake (Rotor)74mm post mount (180–200mm)
- Headset - UpperZS44/28.6
- Headset - LowerZS56/40
- Rear Shock Size 190 x 45mm
Forward Shock Mount: Ø8 x 20mm
Rearward Shock Mount: Standard Ø15MM, no bushing
- Front Spacing15 x 110mm
- Front Axle SizeMaxle Stealth: 15 x 158mm, TP=M15x1.5, TL=9
- Steerer Tube1.125–1.5" tapered
- Crown Race59mm
- Seatpost30.9mm
- Dropper Post CompatibleYes (internal)
- Seatpost Clamp35.4mm
- Max Post InsertionSM: 215mm; MD: 240mm; LG: 265mm; XL: 290mm
- Derailluer HangerSRAM UDH (w/ Ø30mm washer)
- Bottom BracketBB92 press-fit
- Crankset (Max Ring)34t
- Accessory MountsXS–SM: downtube accessory mount; MD–XL: Three-Pack downtube mount; Top tube accessory mounts on all sizes
- Bottle Mounts XS–SM: two full size bottles; MD–XL: three full size bottles
XS-XL Configuration For 2 Water Bottles
MD Configuration For 3 Water Bottles
LG-XL Configuration For 3 Water Bottles
