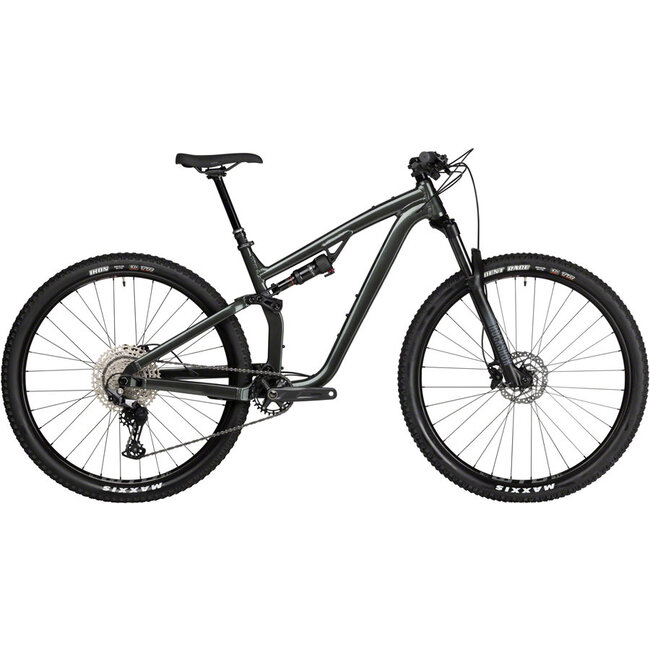

We designed Spearfish Deore to excel in endurance rides like the Arizona Trail, but it’s playful enough that you’ll choose it for your everyday singletrack sessions, too. The durable 6066-T6 aluminum frame holds up to trail hits and long, tough miles. The progressive XC bike geometry makes Spearfish a capable performer on climbs and technical sections while staying composed on descents. The RockShox Deluxe Select+ shock offers 100 mm of rear travel and our Split Pivot suspension design makes the most of it, with supple bump compliance, predictable braking, and superb traction. The 120 mm RockShox Recon Silver RL fork handles trail chatter up front for a smooth, efficient ride. Spearfish has room for two full-size water bottles and features a set of top tube mounts so you can fit more of your ride gear down low on your frame rather than in a sweaty pack on your back. Shimano’s Deore 1 x 12 is a blend of smooth performance and reliability that
Bike Key Features
-
Split Pivot Suspension System
- Allows us to tune the pedaling and braking forces independently
- Maximizes pedaling and braking performance without compromising either
- Results in optimal pedaling efficiency and traction when braking
View More
-
On-Bike Storage
- Adventures require gear and riders should get to choose whether they carry it on their bike or on their body
View More
-
Frame Protection
- Our products are built from experience — we’ve been there enough to know that a carbon fork can benefit from added protection just as much as the downtube on a suspension bike.
View More
-

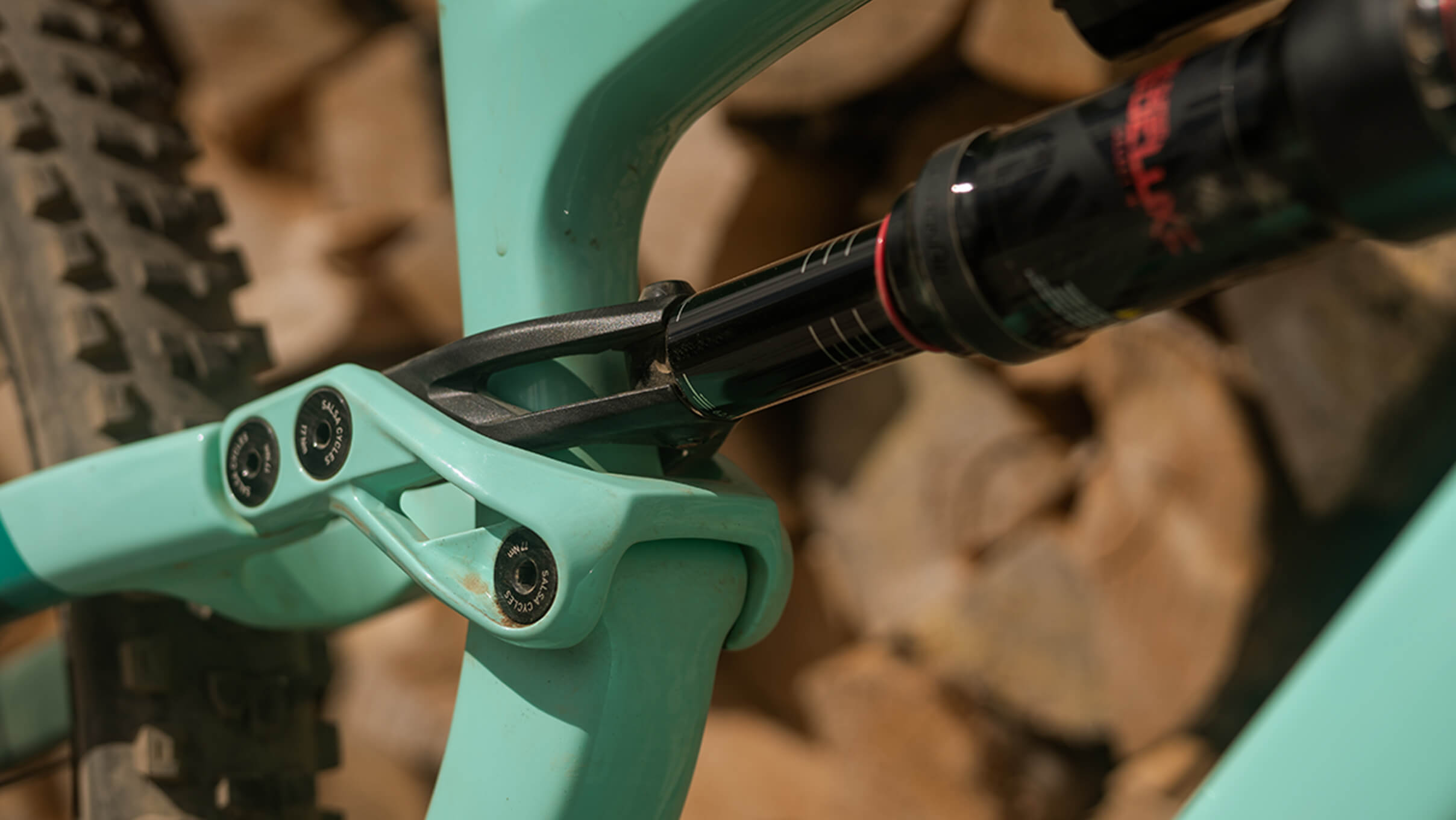

Flip Chip
- Provides the ability to alternate wheel and tire sizes
- Riders can adjust for their terrain, or desired handling characteristics
View More
Frameset
Suspension Fork
RockShox Recon Silver RL, 120 mm, 51 mm offset
Rear Shock
RockShox Deluxe Select+
Components
Headset
FSA Orbit IS-2 ACB
Seatpost
TranzX YSI05, Shimano MT500 lever, 30 mm travel adj, SM: 125 x 409 mm, MD: 150 x 459 mm, LG/XL: 170 x 499 mm
Stem
Salsa Guide Trail, 50 mm
Grips/Bar Tape
Salsa File Tread Lock-on
Saddle
WTB Volt Medium Steel, 265 x 142
Handlebar
Race Face Chester 35
Drivetrain
Rear Derailleur
Shimano Deore M6100 SGS
Cassette
Shimano Deore M6100, 10–51t, 12-speed -OR- Ruby 11–50t, 12-speed, steel spider, HG
Chain
Shimano Deore M6100
Crankset
Shimano MT512, 30t
Shifter
Shimano Deore M6100
Brake Calipers
Shimano M4100
Rotors
Shimano RT10, Center Lock (160 mm)
Wheels
Front Wheel
Shimano MT400-B 15 x 110 mm hub, WTB ST i25 29" rim
Rear Wheel
Shimano SLX M7130 12 x 157 mm hub, WTB ST i25 29" rim -OR- WTB Frequency Comp HG 12 x 157 mm hub, WTB ST i25 29" rim
Front Tire
Maxxis Ardent Race 29 x 2.35", EXO, TR
Rear Tire
Maxxis Ikon 29 x 2.35", EXO, TR
Weight
Complete Bike
33 lbs 0 oz for Medium
*Specifications are subject to change without notice
Geometry
Size |
Small |
Medium |
Large |
X-Large |
A. Effective Top Tube |
593.0- 592.0 |
615.0- 614.0 |
636.0- 636.0 |
658.0- 657.0 |
B. Stand Over |
733.0- 736.0 |
744.0- 746.0 |
755.0- 758.0 |
765.0- 768.0 |
C. Reach |
421.0- 425.0 |
441.0- 443.0 |
460.0- 462.0 |
479.0- 481.0 |
D. Stack |
610.0- 608.0 |
619.0- 617.0 |
628.0- 626.0 |
637.0- 636.0 |
E. Total Seat Tube Length |
419.0 |
444.0 |
483.0 |
520.0 |
F. Headtube Length |
103.0 |
113.0 |
123.0 |
133.0 |
G. Headtube Angle |
67.8
-
68.0
|
67.8
-
68.0
|
67.8
-
68.0
|
67.8
-
68.0
|
H. Seat Tube Angle |
74.3
-
74.6
|
74.3
-
74.6
|
74.3
-
74.6
|
74.3
-
74.6
|
I. BB Drop |
39.0- 36.0 |
39.0- 36.0 |
39.0- 36.0 |
39.0- 36.0 |
K. Chainstay Length |
432.0- 431.0 |
432.0- 431.0 |
432.0- 431.0 |
432.0- 431.0 |
L. Fork Length Axle to Crown |
531.0 |
531.0 |
531.0 |
531.0 |
M. Fork Offset |
44.0 |
44.0 |
44.0 |
44.0 |
N. Wheelbase |
1131.0 |
1154.0 |
1176.0 |
1199.0 |
Crank Arm Length |
165.0 |
170.0 |
170.0 |
175.0 |
Handlebar Width |
760.0 |
760.0 |
760.0 |
760.0 |
Recommended Rider Height |
165.0 - 173.0 |
173.0 - 180.0 |
180.0 - 188.0 |
188.0 |
Stem Length |
50.0 |
50.0 |
50.0 |
50.0 |
Measurements based on:
- An unsprung bike (no sag)
- A 29 x 2.35" tire measuring 744mm in diameter
- Standover is measured from vertically from ground to bend in top tube, subtract 2-8mm (0.1-0.3") for 27.5 x 2.8-3.0" tires
- Measurements shown are for LOW / HIGH Flip Chip settings
Frame Specs
- Design Wheel/Tire SizesTire Size Range for 622/29" Wheels: 56-66mm (2.2-2.6”)
- Alternate Wheel/Tire SizesTire Size Range 584/27.5" Wheels: 70–76mm (2.8–3.0")
- Max Tire Outer Diameter Ø758mm (29.8")
- Suspension Fork Length (Travel)521–541mm (110–130mm)
- Fork Offset42–51mm
- Rear Spacing157 x 12 thru-axle
- Rear Axle SizeØ12 x 197mm, TP=1.75, TL=20
- Headset - UpperIS41
- Headset - LowerIS52
- Rear Shock Size190 x 42.5mm
- Shock Mount, ForeCarbon: Ø8 x 40mm, Aluminum: Ø8 x 30mm
- Pivot KitRefer to Suspension Frame Service Instructions
- SeatpostØ30.9mm
- Dropper Post CompatibleYes, internal/stealth
- Seatpost ClampCarbon: Ø35.4mm, Aluminum: Ø35.0
- Derailluer HangerFS2322
- Bearings17287 (qty 4), 6800 (qty 4), 6801 (qty 2)
- Bottom Bracket73mm BSA, threaded
- Crankset (Max Ring)SuperBoost-157 55–57mm chainline only, 1x: 32t max
- Accessory MountsToptube Bag Mounts
- Bottle Mounts 2
