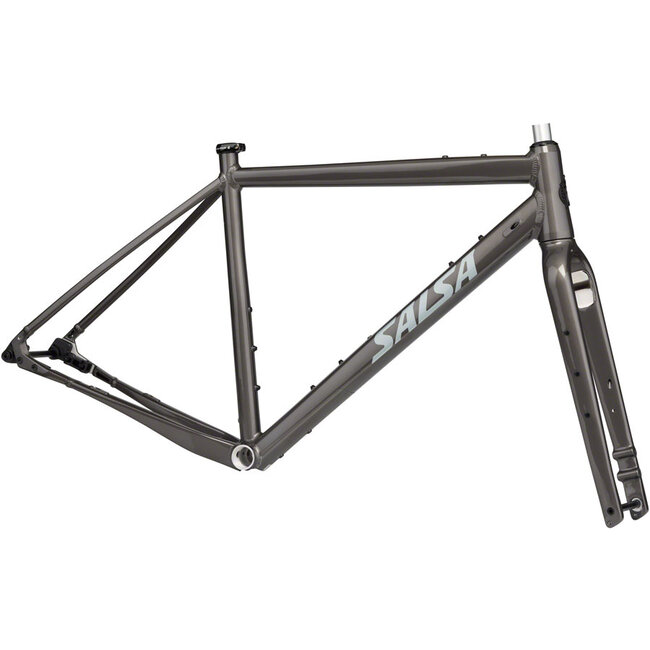

Salsa Stormchaser Frameset

Product description

Stormchaser is Salsa’s gravel bike for any and all conditions. Ample tire clearance and single speed-ready Alternator Flat Mount dropouts will see you through the muddiest rides. Suspension fork and dropper post compatibility let you get wild with your route choices.

• 6066-T6 aluminum frame with Class 5™ Vibration Reduction System (VRS)
• High-modulus carbon fork with alloy steerer, 12 x 100mm thru-axle, internal cable and dynamo routing, Three-Pack mounts, fender and rack compatibility
• Alternator Flat Mount dropouts capable of single speed or 1x geared drivetrain
• Includes single speed and geared dropout plates
• Three water bottle mounts in the main triangle on 56–61 cm frames, and two on 49–54.5 cm frames
• Top tube mount for Salsa EXP Series Direct Mount Top Tube Bag and additional mount on underside of down tube
• Internal cable routing, dropper post-compatible

Geometry

Measurements based on:

• a fork measuring 420x51mm
• a 700x42mm tire measuring 720 mm in diameter
• standover (P) measured vertically to top of toptube from a position 50mm forward of BB center.

Size	49cm	52.5cm	54.5cm	56cm	57.5cm	59cm	61cm
A. Effective Top Tube	506	527	545	560	575	590	605
B. Stand Over	686.86	726.74	756.48	785.5	794.05	820.44	842.79
C. Reach	366.53	371.06	374.06	383.35	392.64	401.93	411.22
Crank Arm Length	165	165	170	170	175	175	175
D. Stack	529.73	543.82	562.61	581.41	600.2	619	637.79
E. Total Seat Tube Length	390	440	475	510	520	545	570
F. Headtube Length	90	105	125	145	165	185	205
G. Headtube Angle	70	70	70	70	70	70	70
H. Seat Tube Angle	75.25	74	73	73	73	73	73.1
Handlebar Width	40cm	42cm	44cm	46cm	48cm	50cm	52
I. BB Drop	70	70	70	70	70	70	70
K. Chainstay Length	435–450	435–450	435–450	435–450	435–450	435–450	435–450
L. Fork Length Axle to Crown	420	420	420	420	420	420	420
M. Fork Offset	51	51	51	51	51	51	51
N. Wheelbase	1017.5–1032.2	1027.1–1041.9	1037–1051.8	1053.1–1067.9	1069.2–1084	1085.4–1100.2	1101.5–1116.3
Recommended Rider Height	142cm–157cm	155cm–165cm	162cm–173cm	170cm–180cm	178cm–188cm	185cm–193cm	190cm–UP
Stem Length	60	70	80	90	90	100	110
