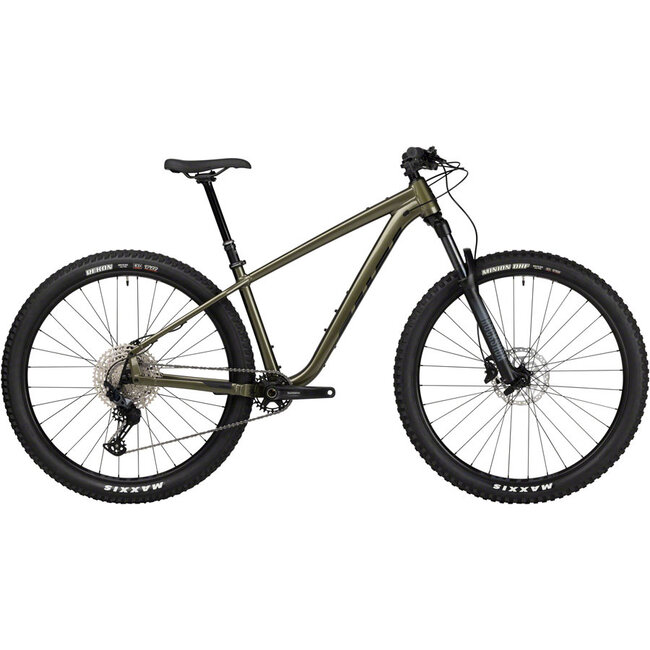

With Timberjack, we set out to design the most versatile hardtail mountain bike around. Timberjack SLX 29 starts with an aluminum frame built on progressive trail geometry that’s plenty sendy on descents without feeling awkward pedaling back up. The 130 mm RockShox 35 Silver TK fork handily manages trail chatter for a controlled ride. With plenty of on-bike storage, you can leave the backpack or hip pack at home. Our Alternator 2.0 dropouts are adjustable to allow for many different drivetrain options and ride characteristics. 29 x 2.6" wheels and tires offer a nice blend of grip and rolling efficiency. Shimano’s SLX 1 x 12 drivetrain hits the sweet spot of functionality and affordability.
Bike Key Features
-

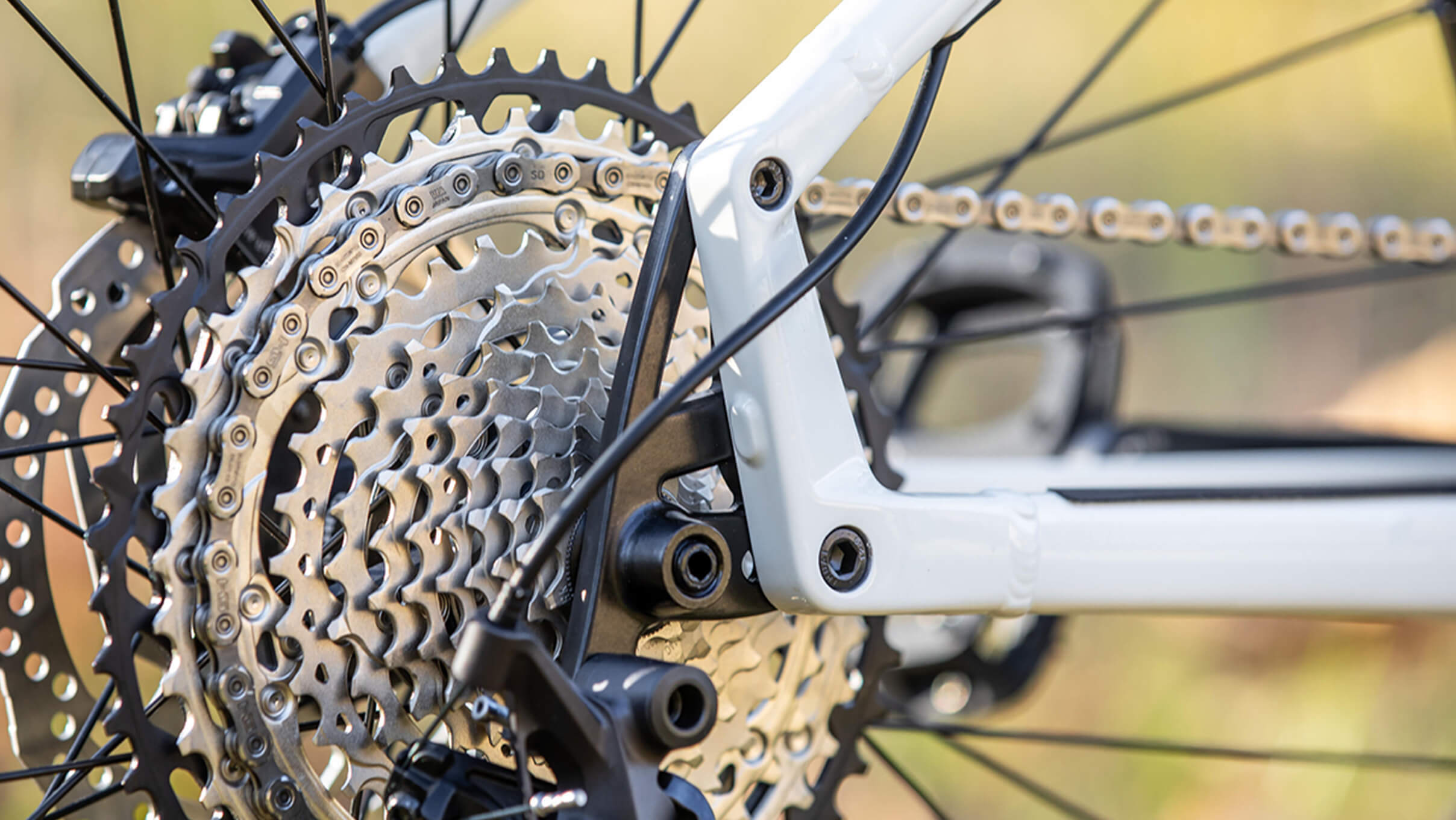

Alternator Dropouts
- Adjustable chainstay length to tune ride characteristics and to allow tire fit flexibility
- Ability to tension chain for single speed use
- Riders have upgrade options
View More
-
On-Bike Storage
- Adventures require gear and riders should get to choose whether they carry it on their bike or on their body
View More
-
Frame Protection
- Our products are built from experience — we’ve been there enough to know that a carbon fork can benefit from added protection just as much as the downtube on a suspension bike.
View More
Build Kit
Frameset
Frame
Timberjack Alloy V2
Suspension Fork
RockShox 35 Silver TK, 130 mm, 44 mm offset
Components
Headset
FSA Orbit 1.5E ACB
Seatpost
TranzX YSI05 RAD+, Shimano MT500 lever, 30 mm travel adj
Grips/Bar Tape
Salsa File Tread
Saddle
WTB Volt 250 Steel
Handlebar
Race Face Chester 35
Drivetrain
Rear Derailleur
Shimano SLX M7100 SGS
Cassette
Shimano Deore M6100-12, 10–51t, 12-speed
Chain
Shimano Deore M6100
Crankset
Shimano MT510, 30t
Shifter
Shimano Deore M6100 I-SPEC EV
Brake Calipers
Shimano MT401
Rotors
Shimano RT10 Center Lock (180 mm front, 160 mm rear)
Wheels
Front Wheel
Shimano MT400-B 15 x 110 mm hub, WTB ST i30 32h 29" rim
Rear Wheel
Shimano MT410-B Micro Spline 12 x 148 mm hub, WTB ST i30 32h 29" rim
Front Tire
Maxxis Minion DHF, 29 x 2.6", EXO, TR
Rear Tire
Maxxis Rekon rear, 29 x 2.6", EXO, TR
Weight
Complete Bike
33 lbs 0 oz for Medium
*Specifications are subject to change without notice
Geometry
Size |
X-Small |
Small |
Medium |
Large |
X-Large |
A. Effective Top Tube |
570.0 |
594.1 |
615.3 |
639.0 |
659.3 |
B. Stand Over |
702.9 |
722.6 |
742.1 |
772.1 |
792.9 |
C. Reach |
410.7 |
433.6 |
453.6 |
475.5 |
492.6 |
D. Stack |
599.0 |
599.0 |
607.4 |
613.5 |
625.5 |
E. Total Seat Tube Length |
342.9 |
370.0 |
395.0 |
432.0 |
457.2 |
F. Headtube Length |
100.0 |
100.0 |
105.0 |
115.0 |
125.0 |
G. Headtube Angle |
66.4
|
66.4
|
66.4
|
66.4
|
66.4
|
H. Seat Tube Angle |
75.1
|
75.1
|
75.1
|
75.1
|
75.1
|
I. BB Drop |
56.6 |
56.6 |
56.6 |
56.6 |
56.6 |
K. Chainstay Length |
420.0 |
420.0 |
420.0 |
420.0 |
420.0 |
L. Fork Length Axle to Crown |
543.0 |
543.0 |
543.0 |
543.0 |
543.0 |
M. Fork Offset |
44.0 |
44.0 |
44.0 |
44.0 |
44.0 |
N. Wheelbase |
1120.0 |
1142.5 |
1164.5 |
1180.5 |
1211.7 |
Crank Arm Length |
165.0 |
165.0 |
170.0 |
170.0 |
180.0 |
Handlebar Width |
780.0 |
780.0 |
780.0 |
780.0 |
780.0 |
Recommended Rider Height |
157.0 - 163.0 |
160.0 - 175.0 |
173.0 - 183.0 |
180.0 - 191.0 |
188.0 |
Stem Length |
50.0 |
50.0 |
50.0 |
50.0 |
50.0 |
Measurements based on:
- a 510.5mm fork which is equivalent to an average 543mm length 29" 130mm suspension fork at 25% sag
- a 27.5 x 2.8" tire measuring 724.5mm in diameter
- Standover is measured vertically to top of top tube from a position 50mm forward of BB center with an unsagged suspension fork
- Wheelbase at 420mm chainstay length
Frame Specs
- Design Wheel/Tire SizesTire Size Range for 622/29" Wheels: 53–66 mm (2.1–2.6")
- Alternate Wheel/Tire SizesTire Size Range for 584/27.5" Wheels: 71 mm (2.8")
- Max Tire Outer Diameter 760.5 mm (29.95")
- Suspension Fork Length (Travel)511–563 mm (100–150 mm travel)
- Rigid Fork Length483–501 mm
- Fork Offset42–51 mm
- Rear Spacing148 mm
- Rear Axle SizeM12 x 180L, TP = 1.5, TL = 20
- Headset - UpperZS44
- Headset - LowerZS56
- Seatpost30.9 mm
- Dropper Post CompatibleYes (internal)
- Seatpost Clamp35 mm
- Front Derailleur ClampNOT COMPATIBLE
- Derailluer HangerAlternator 2.0 Swing Plate
- Bottom Bracket 73 mm BSA
- Crankset (Max Ring)52 mm Boost chainline 1x only (34t)
- Accessory MountsAccessory Mounts: Yes, one pair; Downtube Accessory Mounts: Yes, one pair; Rack Mounts: Yes, uses Alternator 2.0 plates, requires Salsa Rack-Lock; TopTube Mounts: Yes, compatible with Salsa EXP Series Direct Mount Top Tube Bag
- Bottle Mounts XS = 1, SM–XL = 2
- Front Fender MountsNOT COMPATIBLE
- Rear Fender MountsNOT COMPATIBLE
