Product description

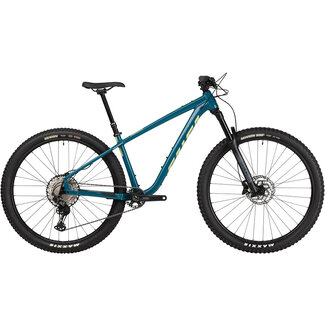

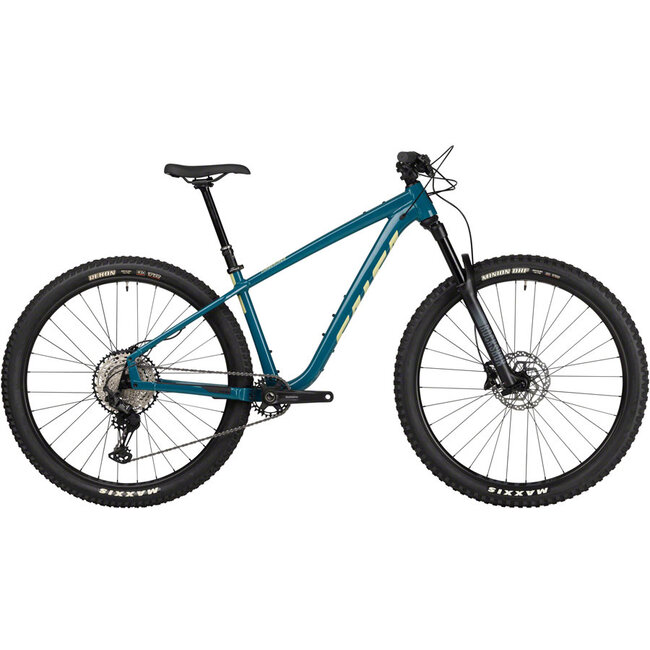

Timberjack is Salsa’s aggressive trail hardtail. Its progressive trail geometry is stable on descents and technical sections, while the Alternator 2.0 dropouts allow for adjustable chainstay length to dial in ride characteristics. Ample accessory mounts and dual wheel size compatibility add more versatility to the package, making Timberjack a well-rounded ripper that likes to party.
- 6061-T6 alloy frame
- Aggressive trail geometry
- 130 mm fork and dropper post provide capability in technical terrain
- Alternator 2.0 dropouts expand drivetrain and setup options
- Short chainstays and long front-center provide agility and stability on the trail
- Front triangle space is maximized for frame bag use
- Internal cable routing
- Compatible with 27.5+ or 29" wheels
Frameset
Frame
Timberjack Alloy V2
Fork
RockShox 35 Gold RL, 130 mm, 44 mm offset
Color
Blue
Rear Shock
N/A
Drivetrain
Front Derailleur
N/A
Rear Derailleur
Shimano XT M8100 SGS
Cassette / Cog
Shimano SLX M7100-12, 10–51t, 12-speed
Chain
Shimano Deore M6100
Crankset
Shimano MT510, 30t
Shifter
Shimano SLX M7100 I-SPEC EV
Brakes and Rotors
Shimano M4120 four-piston, Shimano RT10 Center Lock (180 mm front, 160 mm rear)
Components
Headset
FSA Orbit 1.5E ACB
Stem
Salsa Guide Trail
Handlebar
Race Face Chester 35
Grips / Bar Tape
Salsa File Tread
Seatpost
TranzX YSI05 RAD+, Shimano MT500 lever, 30 mm travel adj
Saddle
WTB Volt 250 Steel
Wheels
Front Wheel
Shimano MT400-B 15 x 110 mm hub, WTB ST i30 32h 29" rim
Rear Wheel
Shimano MT410-B Micro Spline 12 x 148 mm hub, WTB ST i30 32h 29" rim
Tires
Maxxis Minion DHF front, Maxxis Rekon rear, 29 x 2.6", EXO, TR
Tubeless Accessories
Rims taped, WTB brass valves included in box, tubes installed, no sealant
Other
Pedals
N/A
* Specifications are subject to change without notice
| Frame measurements (mm) | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| A. BB Drop | 56.6 | 56.6 | 56.6 | 56.6 | 56.6 |
| B. Chainstay Length | 420–437 | 420–437 | 420–437 | 420–437 | 420–437 |
| C. Fork Length - Axle to Crown | 510.5 | 510.5 | 510.5 | 510.5 | 510.5 |
| D. Fork Offset | 44 | 44 | 44 | 44 | 44 |
| E. Head Tube Angle (deg) | 66.4 | 66.4 | 66.4 | 66.4 | 66.4 |
| F. Headtube Length | 100 | 100 | 105 | 115 | 125 |
| G. Reach | 401.9 | 426 | 446 | 467.2 | 485.2 |
| H. Seat Tube Angle (deg) | 75.1 | 75.1 | 75.1 | 75.1 | 75.1 |
| I. Seat Tube Length - Center to Top | 342.9 | 370 | 395 | 432 | 457.2 |
| J. Stack | 631.9 | 631.9 | 636.5 | 645.6 | 654.8 |
| K. Standover | 684.2 | 700.5 | 720.5 | 747.6 | 767.7 |
| L. Top Tube Length (Effective) | 570 | 594.1 | 615.3 | 639 | 659.3 |
| M. Wheelbase | 1120 | 1142.5 | 1164.5 | 1180.5 | 1211.7 |
| Component measurements (mm) | |||||
| Crank Arm Length | 170 | 170 | 175 | 175 | 175 |
| Handlebar Width | 780 | 780 | 780 | 780 | 780 |
| Handlebar Rise / Drop | 20 | 20 | 35 | 35 | 35 |
| Stem Length | 50 | 50 | 50 | 50 | 50 |
| Stem Angle (deg) | 0 | 0 | 0 | 0 | 0 |
| Seatpost Offset | 0 | 0 | 0 | 0 | 0 |
* All dimensions are preliminary and subject to change
Measurements based on:
- an 510.5mm fork which is equivalent to an average 543mm length 29" 130mm suspension fork at 25% sag
- a 27.5 x 2.8" tire measuring 724.5mm in diameter
- Standover is measured vertically to top of top tube from a position 50mm forward of BB center with an unsagged suspension fork
- Wheelbase at 420mm chainstay length
