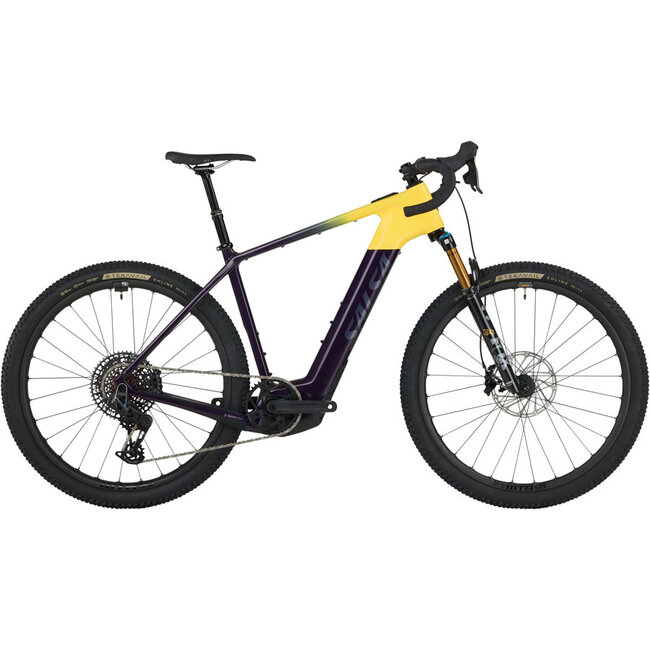

Tributary C Force AXS SUS is a carbon ebike that takes every adventure further. Ride in comfort with a carbon fiber frame and our Class 5 VRS™. Ride in confidence with stable geometry, a suspension fork, and 29 x 2.3″ tires. Seek more scenic views and end long days with more energy on Bosch’s Performance Line Speed drive system and 625Wh battery. Load up with rear rack mounts and two bottle mounts (or plenty of frame bag real estate). SRAM’s Force/X0 AXS drivetrain will spoil you with effortlessly smooth shifting and wide gear range. Saddle up with Tributary and see how a carbon ebike can expand what’s possible by bike.
- Meets UL 2849, and UL 2271 certification
Bike Key Features
-
On-Bike Storage
- Adventures require gear and riders should get to choose whether they carry it on their bike or on their body
View More
-

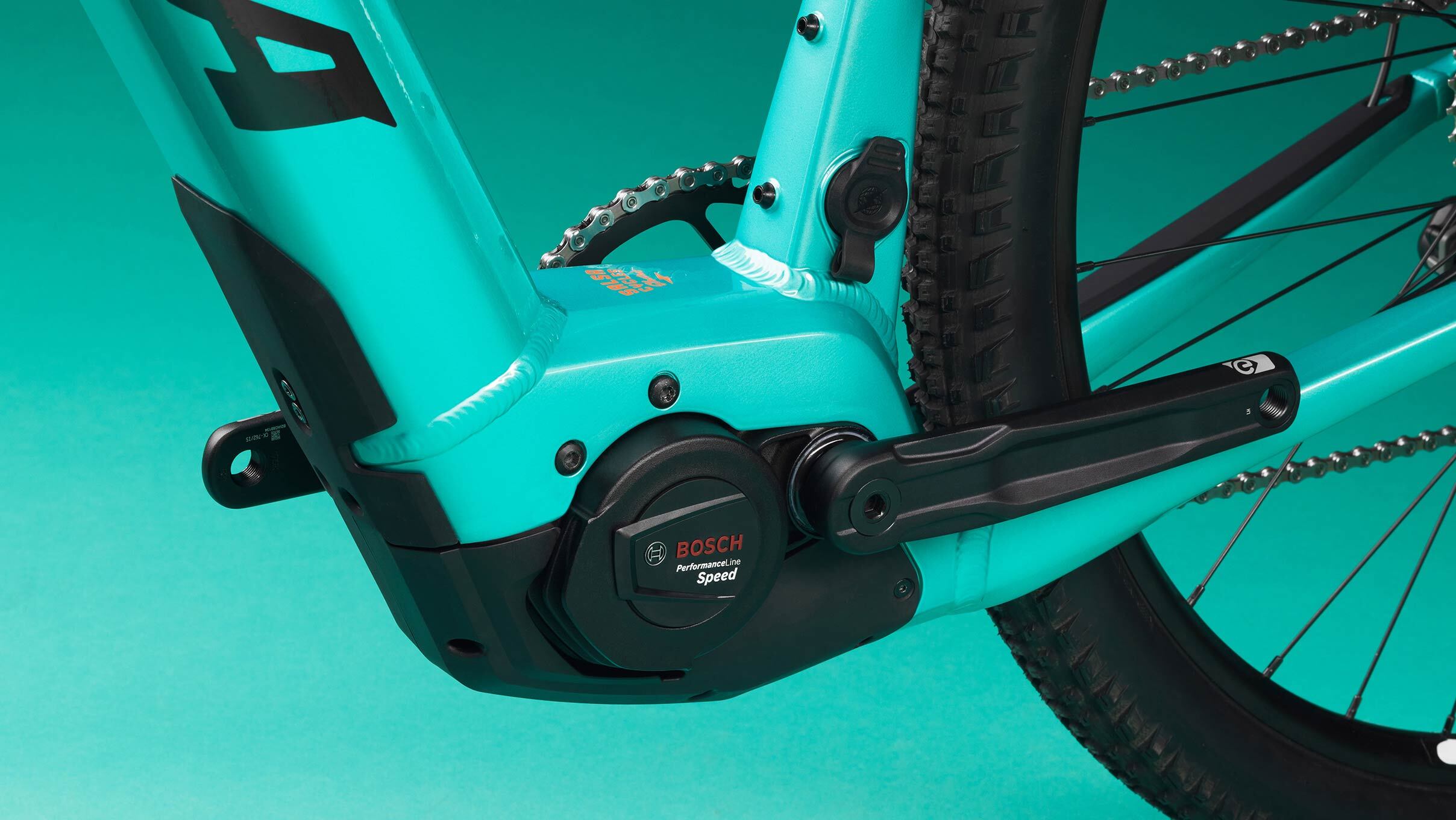

Electric Assist
- It makes more rides possible
- It gives riders the confidence to extend their range
- It’s FUN
View More
-
Class 5 VRS
- Comfort equates to speed and distance over rough terrain
- Rider benefit is inherent to the design
View More
Build Kit
Frameset
Suspension Fork
Fox 34 Factory, 120 mm
Components
Seatpost
TranzX dropper post, 100 mm travel
Grips/Bar Tape
Velo anti-slip
Handlebar
Salsa Cowchipper
Drivetrain
Rear Derailleur
SRAM X0 Eagle Transmission
Cassette
SRAM X0 Eagle Transmission, 10–52t, 12-speed
Chain
SRAM X0 Eagle Transmission
Crankset
FSA CK-9011, 42t
Shifter
SRAM Force AXS D2
Brake Levers
SRAM Force AXS D2
Brake Calipers
SRAM Force D2
Rotors
SRAM CenterLine (6-bolt, 203 mm front, 180 mm rear)
Drive Unit
Bosch Performance Line Speed
Ebike Classification
Class 3
Max Assist Speed
28 mph/45 kmh
Max Motor Assist
340% up to 600W
Battery Capacity Watt Hours
625Wh
Battery Type
Bosch PowerTube 625
Removable Battery
Removable for service
Battery Capacity Amp Hours
16.7Ah
Estimated Charge Time
5.4 hours
Range Estimate
25–100 miles
Wheels
Front Tire
Teravail Ehline 29 x 2.3″, Durable casing
Rear Tire
Teravail Ehline 29 x 2.3″, Durable casing
Rim
WTB CZR i30, 32h (taped, tubeless valves included)
Weight
Complete Bike
43 lb 6 oz for Medium
*Specifications are subject to change without notice
Geometry
Size |
X-Small |
Small |
Medium |
Large |
X-Large |
A. Effective Top Tube |
535.0 |
560.0 |
585.0 |
610.0 |
635.0 |
B. Stand Over |
725.1 |
729.7 |
775.0 |
808.9 |
827.4 |
C. Reach |
373.7 |
398.7 |
417.6 |
437.6 |
457.7 |
D. Stack |
601.8 |
601.8 |
624.8 |
643.2 |
661.7 |
E. Total Seat Tube Length |
380.0 |
405.0 |
460.0 |
500.0 |
520.0 |
F. Headtube Length |
100.0 |
100.0 |
125.0 |
145.0 |
165.0 |
G. Headtube Angle |
100.0
|
100.0
|
125.0
|
145.0
|
165.0
|
H. Seat Tube Angle |
75.0
|
75.0
|
75.0
|
75.0
|
75.0
|
I. BB Drop |
70.0 |
70.0 |
70.0 |
70.0 |
70.0 |
J. BB Height |
303.0 |
303.0 |
303.0 |
303.0 |
303.0 |
K. Chainstay Length |
445.0 |
445.0 |
445.0 |
445.0 |
445.0 |
L. Fork Length Axle to Crown |
498.4 |
498.4 |
498.4 |
498.4 |
498.4 |
M. Fork Offset |
51.0 |
51.0 |
51.0 |
51.0 |
51.0 |
N. Wheelbase |
1094.4 |
1119.4 |
1148.0 |
1175.8 |
1203.7 |
Crank Arm Length |
165.0 |
165.0 |
170.0 |
170.0 |
170.0 |
Handlebar Width |
44.0 |
46.0 |
48.0 |
50.0 |
52.0 |
Recommended Rider Height |
155.0 - 163.0 |
163.0 - 170.0 |
170.0 - 178.0 |
178.0 - 185.0 |
185.0 - 193.0 |
Stem Length |
50.0 |
50.0 |
50.0 |
50.0 |
50.0 |
Measurements based on:
- An unsprung bike (no sag)
- A 29 x 2.3" tire measuring 747 mm in diameter
- Standover (B) for all sizes is measured vertically to top of toptube from a position
Frame Specs
- Design Wheel/Tire Sizes29"
- Max Tire Outer Diameter Tire Clearance Frame: 29 x 2.5"
Tire Clearance Fork: 29 x 3.0"
- Frame ConstructionCarbon
- Suspension Fork Length (Travel)498mm (120mm travel)
- Fork Offset51mm
- Rear Spacing12 x 148mm
- Rear Axle SizeM12 x 175mm, TP=1.0, TL=14mm
- Front Brake (Rotor)Post Mount with Flat Mount adapter
- Headset - UpperIS52
- Headset - LowerIS52
- Front Spacing15 x 110mm
- Steerer Tube28.6mm
- Crown Race1.5"
- Seatpost30.9mm
- Dropper Post CompatibleYes, internal
- Seatpost Clamp35mm
- Front Derailleur ClampN/A
- Front Derailleur TypeN/A
- Derailluer HangerSRAM UDH
- Crankset (Max Ring)42t (52mm)
- Accessory Mounts Rack Mounts Frame: Yes
Downtube Accessory Mounts: None
Fender Mounts Frame: Yes
- Bottle MountsBottle Mounts Frame: 2
