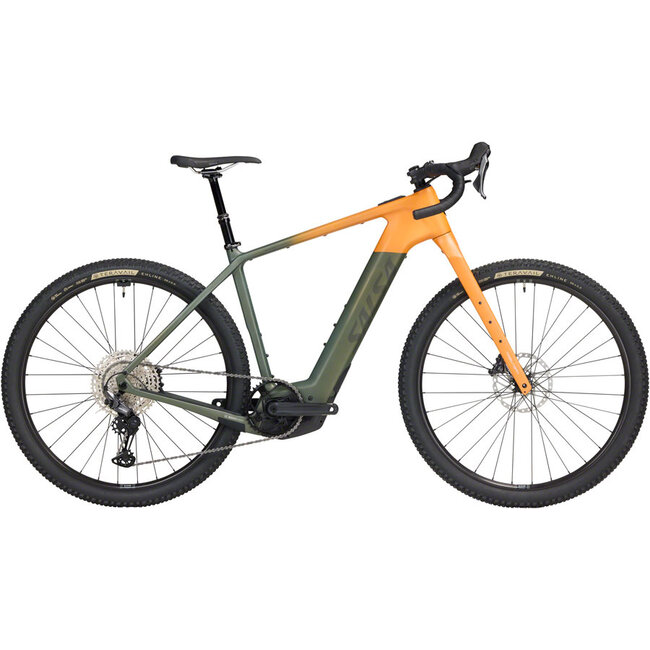

Is Tributary C GRX 820 the best bikepacking ebike? We think so. Its Bosch Performance Line Speed drive system and 625Wh battery give you the freedom to take the scenic route more often and cover more ground between sunup and sundown. And the carbon frame with our Class 5 VRS™ design soaks up road vibrations to keep you comfortable during those long days in the saddle. Carry anything from your camping gear to your #CoffeeOutside kit with Tributary’s frame and fork cargo mounts. Shift and brake smoothly with Shimano’s GRX 820 components, designed for rugged gravel road use. If you’re on the hunt for a bikepacking ebike — or just curious about the possibilities — Tributary should be on your packing list.
- Meets UL 2849, and UL 2271 certification
Bike Key Features
-
On-Bike Storage
- Adventures require gear and riders should get to choose whether they carry it on their bike or on their body
View More
-
Electric Assist
- It makes more rides possible
- It gives riders the confidence to extend their range
- It’s FUN
View More
-
Class 5 VRS
- Comfort equates to speed and distance over rough terrain
- Rider benefit is inherent to the design
View More
Build Kit
Frameset
Color
Dark Pine/Terra Orange
Components
Seatpost
TranzX dropper post, 100 mm travel
Grips/Bar Tape
Velo anti-slip
Handlebar
Salsa Cowchipper
Drivetrain
Rear Derailleur
Shimano GRX RX822
Cassette
Shimano Deore M6100, 10–51t, 12-speed
Chain
Shimano Deore M6100
Shifter
Shimano GRX RX820
Brake Levers
Shimano GRX RX820
Brake Calipers
Shimano GRX RX820
Drive Unit
Bosch Performance Line Speed
Ebike Classification
Class 3
Max Assist Speed
28 mph/45 kmh
Max Motor Assist
340% up to 600W
Battery Capacity Watt Hours
625Wh
Battery Type
Bosch PowerTube 625
Removable Battery
Removable for service
Battery Capacity Amp Hours
16.7Ah
Estimated Charge Time
5.4 hours
Range Estimate
25–100 miles
Wheels
Front Tire
Teravail Ehline 29 x 2.3″, Durable casing
Rear Tire
Teravail Ehline 29 x 2.3″, Durable casing
Front Hub
Shimano TC500 15 x 110mm
Rear Hub
Shimano TC500 12 x 148mm
Rim
WTB ST i27 (taped, tubeless valves included)
Weight
Complete Bike
42 lb 9 oz for Medium
*Specifications are subject to change without notice
Geometry
Size |
X-Small |
Small |
Medium |
Large |
X-Large |
A. Effective Top Tube |
535.0 |
560.0 |
585.0 |
610.0 |
635.0 |
B. Stand Over |
725.1 |
729.7 |
775.0 |
808.9 |
827.4 |
C. Reach |
373.7 |
398.7 |
417.6 |
437.6 |
457.7 |
D. Stack |
601.8 |
601.8 |
624.8 |
643.2 |
661.7 |
E. Total Seat Tube Length |
380.0 |
405.0 |
460.0 |
500.0 |
520.0 |
F. Headtube Length |
100.0 |
100.0 |
125.0 |
145.0 |
165.0 |
G. Headtube Angle |
100.0
|
100.0
|
125.0
|
145.0
|
165.0
|
H. Seat Tube Angle |
75.0
|
75.0
|
75.0
|
75.0
|
75.0
|
I. BB Drop |
70.0 |
70.0 |
70.0 |
70.0 |
70.0 |
J. BB Height |
303.0 |
303.0 |
303.0 |
303.0 |
303.0 |
K. Chainstay Length |
445.0 |
445.0 |
445.0 |
445.0 |
445.0 |
L. Fork Length Axle to Crown |
498.4 |
498.4 |
498.4 |
498.4 |
498.4 |
M. Fork Offset |
51.0 |
51.0 |
51.0 |
51.0 |
51.0 |
N. Wheelbase |
1094.4 |
1119.4 |
1148.0 |
1175.8 |
1203.7 |
Crank Arm Length |
165.0 |
165.0 |
170.0 |
170.0 |
170.0 |
Handlebar Width |
44.0 |
46.0 |
48.0 |
50.0 |
52.0 |
Recommended Rider Height |
155.0 - 163.0 |
163.0 - 170.0 |
170.0 - 178.0 |
178.0 - 185.0 |
185.0 - 193.0 |
Stem Length |
50.0 |
50.0 |
50.0 |
50.0 |
50.0 |
Measurements based on:
- An unsprung bike (no sag)
- A 29 x 2.3" tire measuring 747 mm in diameter
- Standover (B) for all sizes is measured vertically to top of toptube from a position
Frame Specs
- Design Wheel/Tire Sizes29"
- Max Tire Outer Diameter Tire Clearance Frame: 29 x 2.5"
Tire Clearance Fork: 29 x 3.0"
- Frame ConstructionCarbon
- Fork ConstructionCarbon
- Suspension Fork Length (Travel)498mm A2C (120mm travel)
- Fork Offset51mm
- Rear Spacing12 x 148mm
- Rear Axle SizeM12 x 175mm, TP=1.0, TL=14mm
- Front Brake (Rotor)180mm
- Headset - UpperIS52
- Headset - LowerIS52
- Front Spacing15 x 110mm
- Front Axle Size15 x 135mm, TP=M15 x 1.5
- Steerer Tube28.6mm
- Crown Race1.5"
- Seatpost30.9mm
- Dropper Post CompatibleYes, internal
- Seatpost Clamp35mm
- Front Derailleur ClampN/A
- Front Derailleur TypeN/A
- Derailluer HangerSRAM UDH
- Crankset (Max Ring)42t (52mm)
- Accessory Mounts Rack Mounts Frame: Yes
Fender Mounts Frame: Yes
Downtube Accessory Mounts: None
Fender Mounts Fork: Yes, with adapter
- Bottle Mounts Frame: 2
Fork: 2
