Seeking a carbon gravel bike to elevate your riding? Warbird GRX 610 1x is that bike. Ride with less fatigue thanks to Warbird’s carbon fiber frame and Class 5 VRS™ design, which work together to reduce harsh road vibrations. Our gravel race geometry puts you in position to pedal long training miles in comfort or put down the power in pursuit of a podium spot. And you can say goodbye to overstuffed jersey pockets; Warbird's frame and fork cargo mounts are perfect for stashing ride essentials. Shift smoothly mile after mile with the Shimano GRX components, designed for the rigors of gravel riding.
Bike Key Features
-
On-Bike Storage
- Adventures require gear and riders should get to choose whether they carry it on their bike or on their body
View More
-
Frame Protection
- Our products are built from experience — we’ve been there enough to know that a carbon fork can benefit from added protection just as much as the downtube on a suspension bike.
View More
-

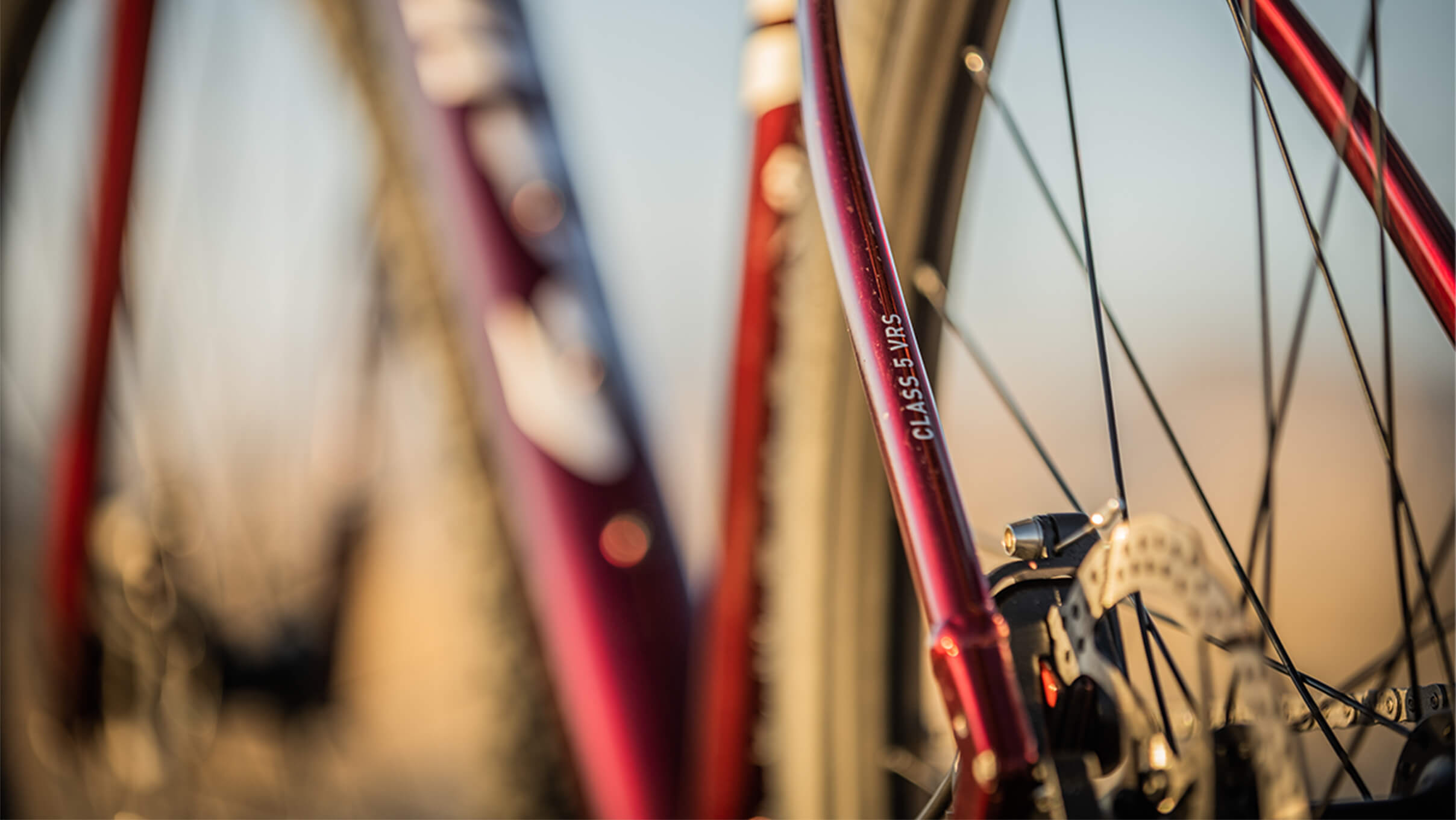

Class 5 VRS
- Comfort equates to speed and distance over rough terrain
- Rider benefit is inherent to the design
View More
Build Kit
Frameset
Components
Seatpost
Salsa Guide, zero offset
Grips/Bar Tape
Anti-slip, shock-proof silicone tape
Saddle
WTB Gravelier Medium, Cromoly SL, 142 x 250mm
Drivetrain
Rear Derailleur
Shimano GRX RX822 GS
Cassette
Shimano M7100, 10-45t, 12-speed
Crankset
Shimano GRX RX610-1, 40t
Shifter
Shimano GRX RX610
Brake Levers
Shimano GRX RX610-1, 40t
Brake Calipers
Shimano GRX RX400
Bottom Bracket
Shimano RS500-PB
Rotors
Shimano RT30 (Center Lock, 160mm front and rear)
Wheels
Front Tire
Teravail Cannonball 700c x 42mm, Durable casing, tubeless-ready
Rear Tire
Teravail Cannonball 700c x 42mm, Durable casing, tubeless-ready
Front Hub
Shimano TC500, 12 x 100 mm
Rear Hub
Shimano TC500, 12 x 142 mm
Spoke
2.0/1.8 gauge, black
Rim
WTB ST 25 mm, TCS 2.0, 28h 700c (taped w/ WTB tubeless valve and sealant included)
Weight
Complete Bike
21 lb 13 oz for 56cm
*Specifications are subject to change without notice
Geometry
Size |
49cm |
52.5cm |
54.5cm |
56cm |
57.5cm |
59cm |
61cm |
A. Effective Top Tube |
499.0 |
525.0 |
545.0 |
560.0 |
575.0 |
590.0 |
610.0 |
B. Stand Over |
670.2 |
714.48 |
744.3 |
770.11 |
785.96 |
808.4 |
830.55 |
C. Reach |
360.24 |
368.13 |
371.97 |
381.19 |
390.42 |
399.65 |
407.74 |
D. Stack |
517.85 |
547.09 |
565.97 |
584.85 |
603.73 |
622.61 |
641.5 |
E. Total Seat Tube Length |
390.0 |
440.0 |
475.0 |
510.0 |
520.0 |
545.0 |
570.0 |
F. Headtube Length |
90.0 |
120.0 |
140.0 |
160.0 |
180.0 |
200.0 |
220.0 |
G. Headtube Angle |
71.0
|
70.75
|
70.75
|
70.75
|
70.75
|
70.75
|
70.75
|
H. Seat Tube Angle |
75.0
|
74.0
|
73.0
|
73.0
|
73.0
|
73.0
|
72.5
|
I. BB Drop |
70.0 |
70.0 |
70.0 |
70.0 |
70.0 |
70.0 |
70.0 |
J. BB Height |
279.0 |
279.0 |
279.0 |
279.0 |
279.0 |
279.0 |
279.0 |
K. Chainstay Length |
430.0 |
430.0 |
430.0 |
430.0 |
430.0 |
430.0 |
430.0 |
L. Fork Length Axle to Crown |
405.0 |
405.0 |
405.0 |
405.0 |
405.0 |
405.0 |
405.0 |
M. Fork Offset |
50.0 |
50.0 |
50.0 |
50.0 |
50.0 |
50.0 |
50.0 |
N. Wheelbase |
996.14 |
1011.96 |
1022.39 |
1038.21 |
1054.03 |
1069.85 |
1084.54 |
Crank Arm Length |
165.0 |
170.0 |
170.0 |
172.5 |
172.5 |
175.0 |
175.0 |
Handlebar Width |
380.0 |
400.0 |
420.0 |
440.0 |
460.0 |
460.0 |
460.0 |
Recommended Rider Height |
14.0 - 157.0 |
155.0 - 165.0 |
162.0 - 173.0 |
170.0 - 180.0 |
178.0 - 188.0 |
185.0 - 193.0 |
190.0 |
Stem Length |
60.0 |
70.0 |
80.0 |
90.0 |
90.0 |
100.0 |
110.0 |
Measurements based on:
- A Warbird Carbon Fork which is 405 x 50mm offset
- A 700c x 32mm tire measuring 698mm in diameter
- Standover for all sizes is measured vertically to top of toptube from a position 50mm forward of BB center
Shimano TC500, 12 x 100 mm
Rear Hub
Shimano TC500, 12 x 142 mm
Spoke
2.0/1.8 gauge, black
Rim
WTB ST 25 mm, TCS 2.0, 28h 700c (taped w/ WTB tubeless valve and sealant included)
Weight
Complete Bike
21 lb 13 oz for 56cm
*Specifications are subject to change without notice
Frame Specs
- Design Wheel/Tire Sizes622 - 32 (700 x 32mm)
- Alternate Wheel/Tire Sizes 622 – 32-45 (700c x 32–45mm / 1.2–1.8”) / 584 – 47-51 (650b x 47mm–51mm / 1.85–2.0”)
- Max Tire Outer Diameter700c: 716mm / 650b: 696mm (Some front derailleurs may reduce tire clearance. Check manufacturer’s specifications to confirm clearance before installing.)
- Frame ConstructionCarbon
- Fork ConstructionCarbon
- Suspension Fork Length (Travel)436.7mm A2C (40mm travel)
- Rigid Fork Length405mm A2C
- Fork Offset50mm
- Rear Spacing142mm
- Rear Axle SizeM12 x 167mm, TP=1.5, TL=20
- Headset - UpperIS41
- Headset - LowerIS52
- Front Spacing100mm
- Front Axle SizeM12 x 120mm, TP=1.5, TL=12
- Steerer Tube28.6mm
- Crown RaceIntegrated SHIS 40, 36° angle
- Seatpost27.2mm
- Seatpost Clamp32.0mm
- Derailluer Hanger465, (QBP# FS2322)
- Bottom BracketBB86 press fit
- Crankset (Max Ring)1x: 44t max; 2x: 52/36t max, 46/30t minimum
- Accessory MountsDowntube Accessory Mounts: Yes, one; Rack Mounts Frame: Yes; Fender Mounts Frame: Yes, required fender hardware included
- Bottle MountsFrame: Frames up to 54cm: 2 in main triangle, frames 56cm and larger: 3 in main triangle; Fork: Yes, two
- Fork MountsRack Mounts Fork: Yes, low-rider; Fender Mounts Fork: Yes
