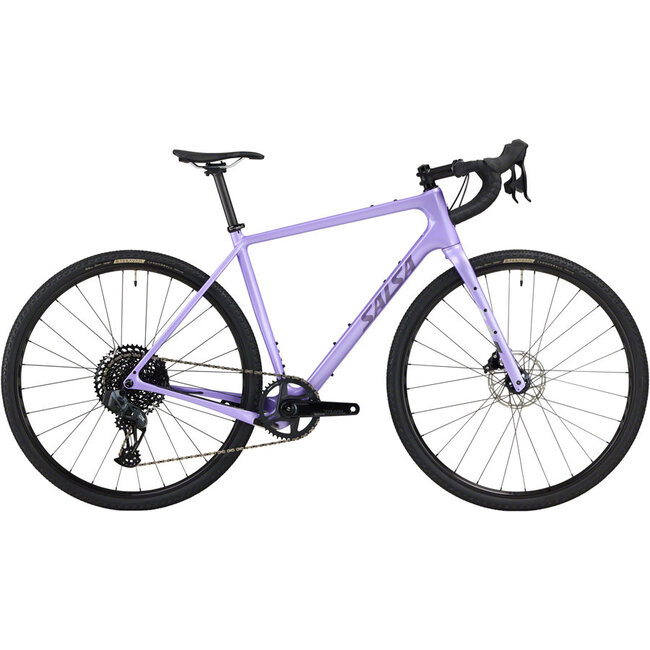

Warbird C Rival GX Eagle AXS is a carbon gravel bike designed for racing but capable of much more. The carbon frameset features our gravel race geometry and comfortable Class 5 VRS™, following our philosophy that less fatigue = more speed. And because a great gravel ride can take you far from home, pack all you need for the day (or more) with Warbird’s frame and fork cargo mounts. A SRAM Rival/GX Eagle AXS shifting setup ensures smooth, quick gear changes so you can focus on the road ahead.
Bike Key Features
-
On-Bike Storage
- Adventures require gear and riders should get to choose whether they carry it on their bike or on their body
View More
-
Frame Protection
- Our products are built from experience — we’ve been there enough to know that a carbon fork can benefit from added protection just as much as the downtube on a suspension bike.
View More
-
Class 5 VRS
- Comfort equates to speed and distance over rough terrain
- Rider benefit is inherent to the design
View More
Build Kit
Frameset
Components
Seatpost
Salsa Guide Carbon, zero offset
Grips/Bar Tape
Anti-slip, shock-proof silicone tape
Saddle
WTB Gravelier Medium, Cromoly SL, 142 x 250mm
Drivetrain
Rear Derailleur
SRAM GX AXS
Cassette
SRAM XG-1275, 10–50t, 12-speed
Crankset
SRAM Rival 1, D1, Dub Wide, 42t
Shifter
SRAM Rival AXS D1
Brake Levers
SRAM Rival AXS D1
Brake Calipers
SRAM Rival D1
Bottom Bracket
SRAM DUB PF86.5 Road Wide
Rotors
SRAM CenterLine (6-bolt, 160mm front and rear)
Wheels
Front Tire
Teravail Cannonball 700c x 42mm, Durable casing, tubeless-ready
Rear Tire
Teravail Cannonball 700c x 42mm, Durable casing, tubeless-ready
Front Hub
WTB Speedterra 12 x 100mm
Rear Hub
WTB Speedterra 12 x 142mm
Rim
WTB Speedterra i25, TCS 2.0, 28h, 700c (taped w/ WTB tubeless valve and sealant included)
Weight
Complete Bike
20 lb 4 oz for 56cm
*Specifications are subject to change without notice
Geometry
Size |
49cm |
52.5cm |
54.5cm |
56cm |
57.5cm |
59cm |
61cm |
A. Effective Top Tube |
499.0 |
525.0 |
545.0 |
560.0 |
575.0 |
590.0 |
610.0 |
B. Stand Over |
670.2 |
714.48 |
744.3 |
770.11 |
785.96 |
808.4 |
830.55 |
C. Reach |
360.24 |
368.13 |
371.97 |
381.19 |
390.42 |
399.65 |
407.74 |
D. Stack |
517.85 |
547.09 |
565.97 |
584.85 |
603.73 |
622.61 |
641.5 |
E. Total Seat Tube Length |
390.0 |
440.0 |
475.0 |
510.0 |
520.0 |
545.0 |
570.0 |
F. Headtube Length |
90.0 |
120.0 |
140.0 |
160.0 |
180.0 |
200.0 |
220.0 |
G. Headtube Angle |
71.0
|
70.75
|
70.75
|
70.75
|
70.75
|
70.75
|
70.75
|
H. Seat Tube Angle |
75.0
|
74.0
|
73.0
|
73.0
|
73.0
|
73.0
|
72.5
|
I. BB Drop |
70.0 |
70.0 |
70.0 |
70.0 |
70.0 |
70.0 |
70.0 |
J. BB Height |
279.0 |
279.0 |
279.0 |
279.0 |
279.0 |
279.0 |
279.0 |
K. Chainstay Length |
430.0 |
430.0 |
430.0 |
430.0 |
430.0 |
430.0 |
430.0 |
L. Fork Length Axle to Crown |
405.0 |
405.0 |
405.0 |
405.0 |
405.0 |
405.0 |
405.0 |
M. Fork Offset |
50.0 |
50.0 |
50.0 |
50.0 |
50.0 |
50.0 |
50.0 |
N. Wheelbase |
996.14 |
1011.96 |
1022.39 |
1038.21 |
1054.03 |
1069.85 |
1084.54 |
Crank Arm Length |
165.0 |
170.0 |
170.0 |
172.5 |
172.5 |
175.0 |
175.0 |
Handlebar Width |
380.0 |
400.0 |
420.0 |
440.0 |
460.0 |
460.0 |
460.0 |
Recommended Rider Height |
14.0 - 157.0 |
155.0 - 165.0 |
162.0 - 173.0 |
170.0 - 180.0 |
178.0 - 188.0 |
185.0 - 193.0 |
190.0 |
Stem Length |
60.0 |
70.0 |
80.0 |
90.0 |
90.0 |
100.0 |
110.0 |
Measurements based on:
- A Warbird Carbon Fork which is 405 x 50mm offset
- A 700c x 32mm tire measuring 698mm in diameter
- Standover for all sizes is measured vertically to top of toptube from a position 50mm forward of BB center
Frame Specs
- Design Wheel/Tire Sizes622 - 32 (700 x 32mm)
- Alternate Wheel/Tire Sizes 622 – 32-45 (700c x 32–45mm / 1.2–1.8”) / 584 – 47-51 (650b x 47mm–51mm / 1.85–2.0”)
- Max Tire Outer Diameter700c: 716mm / 650b: 696mm (Some front derailleurs may reduce tire clearance. Check manufacturer’s specifications to confirm clearance before installing.)
- Frame ConstructionCarbon
- Fork ConstructionCarbon
- Suspension Fork Length (Travel)436.7mm A2C (40mm travel)
- Rigid Fork Length405mm A2C
- Fork Offset50mm
- Rear Spacing142mm
- Rear Axle SizeM12 x 167mm, TP=1.5, TL=20
- Headset - UpperIS41
- Headset - LowerIS52
- Front Spacing100mm
- Front Axle SizeM12 x 120mm, TP=1.5, TL=12
- Steerer Tube28.6mm
- Crown RaceIntegrated SHIS 40, 36° angle
- Seatpost27.2mm
- Seatpost Clamp32.0mm
- Derailluer Hanger465, (QBP# FS2322)
- Bottom BracketBB86 press fit
- Crankset (Max Ring)1x: 44t max; 2x: 52/36t max, 46/30t minimum
- Accessory MountsDowntube Accessory Mounts: Yes, one; Rack Mounts Frame: Yes; Fender Mounts Frame: Yes, required fender hardware included
- Bottle MountsFrame: Frames up to 54cm: 2 in main triangle, frames 56cm and larger: 3 in main triangle; Fork: Yes, two
- Fork MountsRack Mounts Fork: Yes, low-rider; Fender Mounts Fork: Yes
