Warbird is Salsa's gravel race bike, built off years of experience racing in some of the nation’s premier gravel events. It's designed to survive and thrive on anything from the often-hazardous B-roads that make up much of the Midwest gravel scene to the fire roads that climb to the heavens on the coasts.

•

  Class 5 VRS

  • Comfort equates to speed and distance over rough terrain
  • Rider benefit is inherent to the design

  View More
•

  Frame Protection

  • Our products are built from experience — we’ve been there enough to know that a carbon fork can benefit from added protection just as much as the downtube on a suspension bike.

  View More

Build Kit

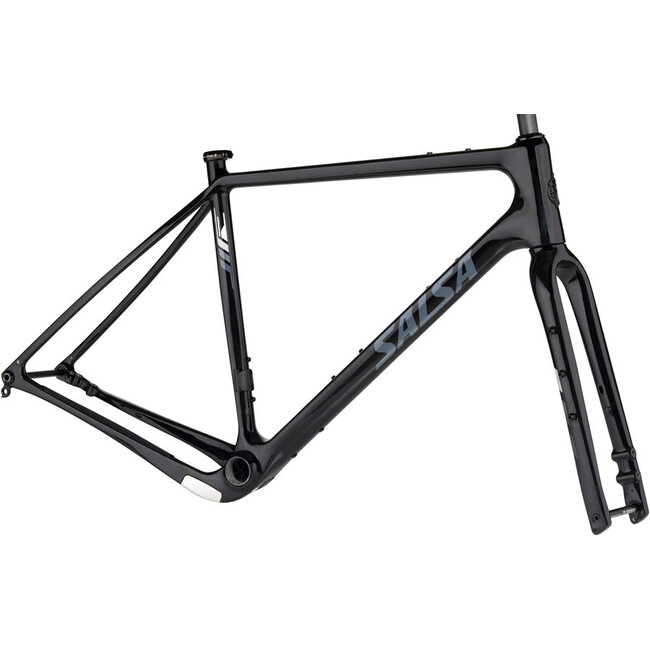

Frameset

Frame

Warbird Carbon

Color

Black

Fork

Waxwing

Rear Shock

N/A

Components

Headset

FSA NO.42/ACB

Drivetrain



Wheels



*Specifications are subject to change without notice

Geometry



Size	49cm	52.5cm	54.5cm	56cm	57.5cm	59cm	61cm
A. Effective Top Tube
B. Stand Over
C. Reach
D. Stack
E. Total Seat Tube Length
F. Headtube Length
G. Headtube Angle
H. Seat Tube Angle
I. BB Drop
K. Chainstay Length
L. Fork Length Axle to Crown
M. Fork Offset
N. Wheelbase
Crank Arm Length
Handlebar Width
Recommended Rider Height
Stem Length

Measurements based on:

• A Warbird Carbon Fork which is 405 x 50mm offset
• A 700c x 32mm tire measuring 698mm in diameter
• Standover for all sizes is measured vertically to top of toptube from a position 50mm forward of BB center

Frame Specs

• Design Wheel/Tire Sizes622 - 32 (700 x 32mm)
• Alternate Wheel/Tire Sizes622 – 32-45 (700c x 32–45mm / 1.2–1.8”) / 584 – 47-51 (650b x 47mm–51mm / 1.85–2.0”)
• Max Tire Outer Diameter 700c: 716mm / 650b: 696mm (Some front derailleurs may reduce tire clearance. Check manufacturer’s specifications to confirm clearance before installing.)
• Suspension Fork Length (Travel)436.7mm axle-to-crown (40mm travel)
• Rigid Fork Length405mm
• Fork Offset50mm
• Rear Spacing142mm
• Rear Axle SizeM12 x 167L, TP = 1.5, TL = 20mm
• Front Brake (Rotor)Flat mount 160, flat mount rear standard, 35mm thickness, 42mm bolt length
• Headset - UpperIS41
• Headset - LowerIS52
• Front Spacing12 x 100 mm TA
• Front Axle SizeM12 x 120L, TP = 1.5, TL = 12mm
• Crown RaceIntegrated SHIS 40, 36° angle
• Stem ClampØ28.6mm
• Seatpost27.2mm
• Seatpost Clamp32.0mm
• Derailluer HangerHanger 465, QBP# FS2322
• Bottom BracketBB86 PressFit
• Crankset (Max Ring)1x: 44t max; 2x: 52/36t max, 46/30t minimum
• Accessory MountsRack Mounts 165 mm Low-rider compatible. Salsa Down Under rack recommended; Downtube Accessory Mount: Yes, one pair; Toptube Mounts: Yes, compatible with Salsa Toptube bag; Three-Pack Mounts: One mount per fork leg
• Bottle Mounts Frames up to 54cm: 2 in main triangle, frames 56cm and larger: 3 in main triangle
• Front Fender MountsYes, required fender hardware included
• Rear Fender MountsYes, required fender hardware included
