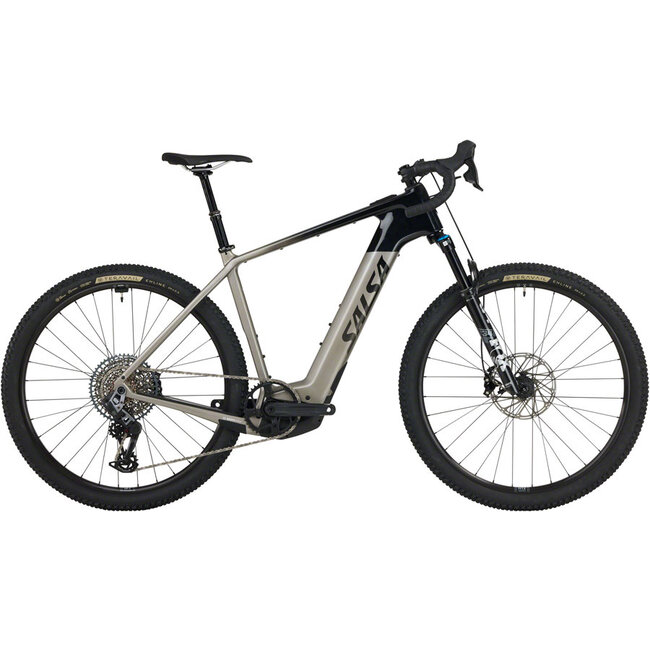

What makes Tributary C Rival GX AXS SUS the ultimate adventure ebike? Start with the carbon frame and our Class 5™ for comfort. Equip it for rugged roads with a suspension fork and 29 x 2.3″ tires. Add rack mounts and ample frame bag space for bringing the necessities (and maybe a few luxuries). Then Charge Your Adventure with a Bosch Performance Line Speed drive system and 625Wh battery so you can cover more ground, climb to the scenic viewpoints, and explore the side roads. Top it all off with SRAM’s sweet-shifting Rival/GX AXS drivetrain, and you’ve got an adventure ebike that’s down for any route you can dream up.
Frame
Tributary Carbon
Color
Charcoal/Black
Suspension Fork
Fox 34 Performance Elite, 120mm
Rear Shock
N/A
Headset
Acros
Seatpost
TranzX dropper post, 100 mm travel
Stem
Salsa Guide Trail
Grips/Bar Tape
Velo anti-slip
Saddle
WTB SL8
Handlebar
Salsa Cowchipper
Lights Included
No
Front Derailleur
N/A
Rear Derailleur
SRAM GX Eagle Transmission
Cassette
SRAM XS-1275, 10–52t, 12-speed
Drive Type
Mid-drive
Chain
SRAM GX Eagle Transmission
Crankset
FSA CK-762, 42t
Shifter
SRAM Rival AXS D1
Brake Levers
SRAM Rival AXS D1
Brake Calipers
SRAM Rival
Assist Levels
4
Rotors
SRAM CenterLine (6-bolt, 203mm front, 180mm rear)
Drive Unit
Bosch Performance Line Speed
Ebike Classification
Class 3
Max Assist Speed
28 mph/45 kmh
Motor Torque
85Nm
Max Motor Assist
340% up to 600W
Battery Capacity Watt Hours
625Wh
Battery Type
Bosch PowerTube 625
Removable Battery
Removable for service
Battery Power Volts
36V
Battery Capacity Amp Hours
16.7Ah
Estimated Charge Time
5.4 hours
Charger Included
Yes
Range Estimate
25–100 miles
Throttle
No
Walk Assist
Yes
Front Tire
Teravail Ehline 29 x 2.3″, Durable casing
Rear Tire
Teravail Ehline 29 x 2.3″, Durable casing
Front Hub
DT Swiss 370 15 x 110mm, 32h
Rear Hub
DT Swiss 370 12 x 148mm, 32h
Rim
WTB HTZ Trail i27 (taped, tubeless valves included)
Complete Bike
44 lb 10 oz for Medium
*Specifications are subject to change without notice
| Size | X-Small | Small | Medium | Large | X-Large |
|---|---|---|---|---|---|
| A. Effective Top Tube | 535.0 | 560.0 | 585.0 | 610.0 | 635.0 |
| B. Stand Over | 725.1 | 729.7 | 775.0 | 808.9 | 827.4 |
| C. Reach | 373.7 | 398.7 | 417.6 | 437.6 | 457.7 |
| D. Stack | 601.8 | 601.8 | 624.8 | 643.2 | 661.7 |
| E. Total Seat Tube Length | 380.0 | 405.0 | 460.0 | 500.0 | 520.0 |
| F. Headtube Length | 100.0 | 100.0 | 125.0 | 145.0 | 165.0 |
| G. Headtube Angle |
100.0
|
100.0
|
125.0
|
145.0
|
165.0
|
| H. Seat Tube Angle |
75.0
|
75.0
|
75.0
|
75.0
|
75.0
|
| I. BB Drop | 70.0 | 70.0 | 70.0 | 70.0 | 70.0 |
| J. BB Height | 303.0 | 303.0 | 303.0 | 303.0 | 303.0 |
| K. Chainstay Length | 445.0 | 445.0 | 445.0 | 445.0 | 445.0 |
| L. Fork Length Axle to Crown | 498.4 | 498.4 | 498.4 | 498.4 | 498.4 |
| M. Fork Offset | 51.0 | 51.0 | 51.0 | 51.0 | 51.0 |
| N. Wheelbase | 1094.4 | 1119.4 | 1148.0 | 1175.8 | 1203.7 |
| Crank Arm Length | 165.0 | 165.0 | 170.0 | 170.0 | 170.0 |
| Handlebar Width | 44.0 | 46.0 | 48.0 | 50.0 | 52.0 |
| Recommended Rider Height | 155.0 - 163.0 | 163.0 - 170.0 | 170.0 - 178.0 | 178.0 - 185.0 | 185.0 - 193.0 |
| Stem Length | 50.0 | 50.0 | 50.0 | 50.0 | 50.0 |
